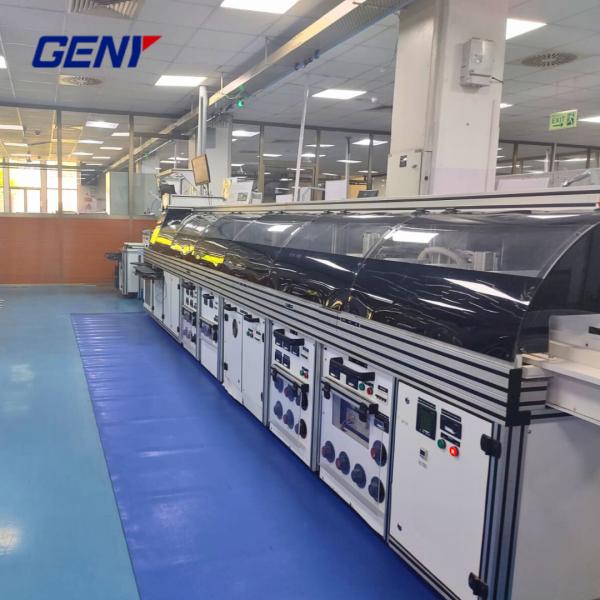

Single Phase Energy Meter Calibration Equipment For Single Energy Meter Automatic Test Line In Mass Production
Single Phase Energy Meter Calibration Equipment For Single Energy Meter Automatic Test Line In Mass Production
Specifications
Brand Name :
GENY
Model Number :
YCATS I / YCATS II
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1
Price :
negotiate rates
Payment Terms :
T/T, L/C, D/P, T/T
Supply Ability :
2 sets/ 3 months
Delivery Time :
6~8weeks
Packaging Details :
Plywood cases
Communication Protocol :
Modbus RTU, Modbus TCP, DNP3.0
Control Software :
Graphical user interface (GUI)
Dimensions :
Customizable based on customer's requirements
Test Frequency :
50Hz/60Hz
Accuracy Level :
0.05%, 0.1%, 0.2%
Testing Standards :
IEC 62053-21, IEC 62053-22, IEC 62053-23
Power Supply :
220V/110V, 50Hz/60Hz
Application :
Energy meter testing
Operating System :
Windows
Test Voltage Range :
0-500V
Test Current Range :
0-200A
Function :
Automatically test energy meters for accuracy and functionality
Description

Single Phase Energy Meter Calibration Equipment for Single Energy Meter Automatic Test Line in Mass Production

Description:

The Single Energy Meter Automatic Test Line is specially designed for automatic test of single – phase energy meters in mass production.

Applications:

· Electric power departments

· Electric energy meter manufacturers

· Measuring and quality examining departments

Features:

1) Accuracy: 0.1% , 0.05%

2) The breakdown of power source of MUT only affects one meter position unit, and the other positions still work normally, so the system is more reliable.

3) Each meter position unit with a power source and connect in parallel. The unit is totally separated, don't affect each other, eliminating the effect of large power output in stability of power source reducing error, and improving test accuracy.

4) The meter with different testing ranges, constants protocols can be tested together because each meter position unit are in parallel, which does not affect each other.

5) More meter position, less installation waiting time. Effective test time is shorter, only 30% of conventional test Methods.

6) Test single phase meter with closed link. Expansion of meter position units is easy and convenient.

7) Automatic meter loading /unloading and test, with PC control by Ethernet communication.

8) Flow of work: meter loading, indentation, location, testing, defect sorting, labeling, lead sealing, packaging, Return to meter's warehouse.

Functions:

· Error test

· Starting and creeping test

· Time base test

· Time consumption switch test

· Demand test

· Withstand voltage test

· Influence test

· Dial test

Application Conditions and Requirements
Environment Power Requirement Safety
Operation
Temperature		 Humidity Altitude Voltage Supply IP Class Conformity
-10°C--+40ºC 35%--85% <2500m 3x220/380V±10%
(or customized)
50/60Hz±2Hz		 IP30 CE conform

Type YCS-103-250 YCS-103-800 YCS-103-1200 YCS-203-2500
Voltage
Test voltage output(Phase-Neutral) 3x(24V-300V)(or customized)
Power of the voltage output Max.3x100VA Max.3x250VA Max.3x500VA Max.3x1000VA
Resolution Better than 0.01%of full scale value of range
Setting accuracy Better than 0.05% at the final range value
Stability Better than 0.005%/h(integration time 150 s)
Load regulation from 0-max.load Better than 0.01%
Distortion factor Better than 0.3% for linear resistance load
Harmonics 2nd-41st free programmable
Current
Test current output 3x(1mA-120A/200A)
Power of the current output Max.3x250VA Max.3x500VA Max.3x1000VA Max.3x2000VA
Resolution Better than 0.01% of full scale value of range
Setting accuracy Better than 0.05%at the final range value
Stability Better than 0.005%/h(integration time 150 s)
Load regulation from 0-max.load Better than 0.01%
Distortion factor Better than 0.3% for linear resistance load
Harmonics 2nd-41st free programmable
Phase angle
Range 0-360°
Resolution 0.01°
Setting accuracy 0.1°
Frequency
Range 45Hz-65Hz
Resolution 0.01Hz
Error display
Type of error display Red LED
Resolution of the error displays 8 digits
