FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.

Description

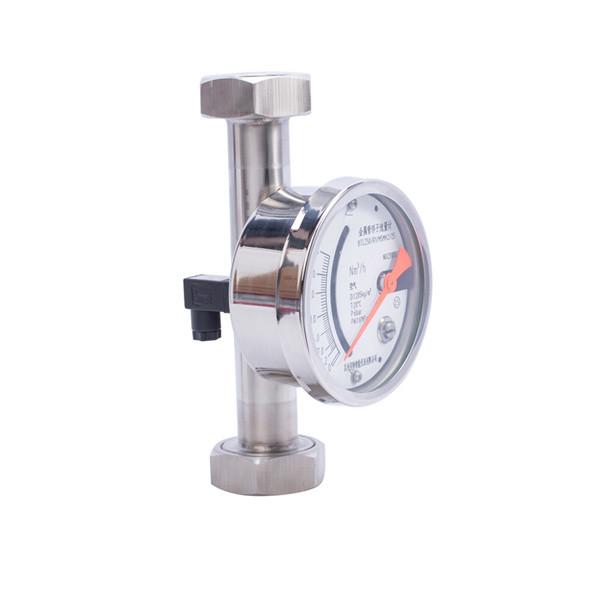

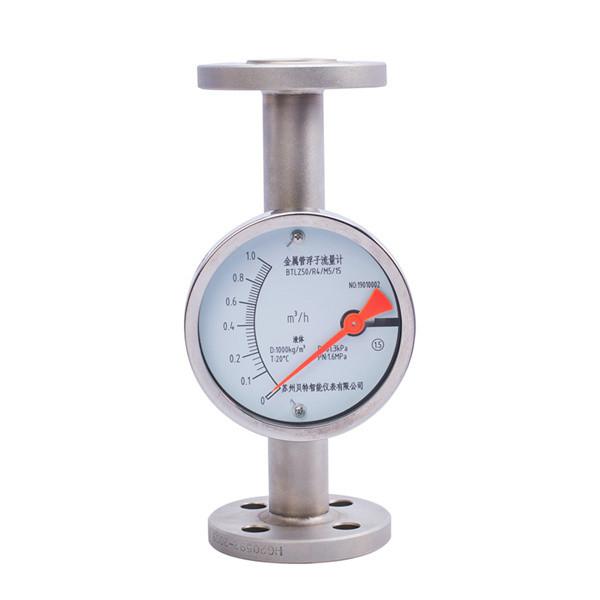

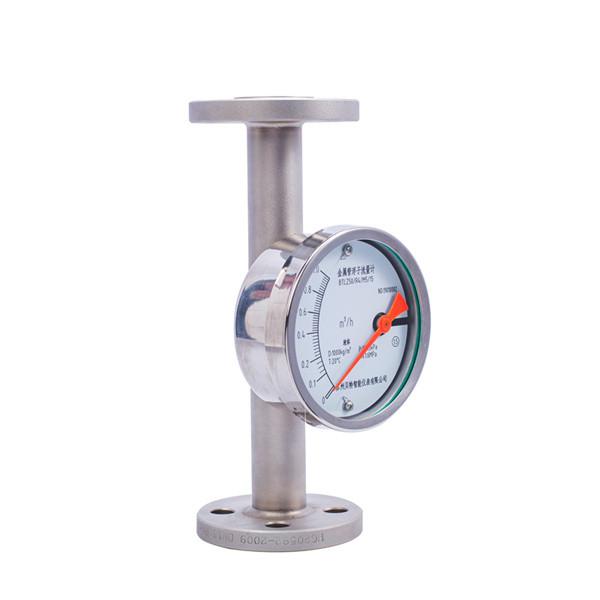

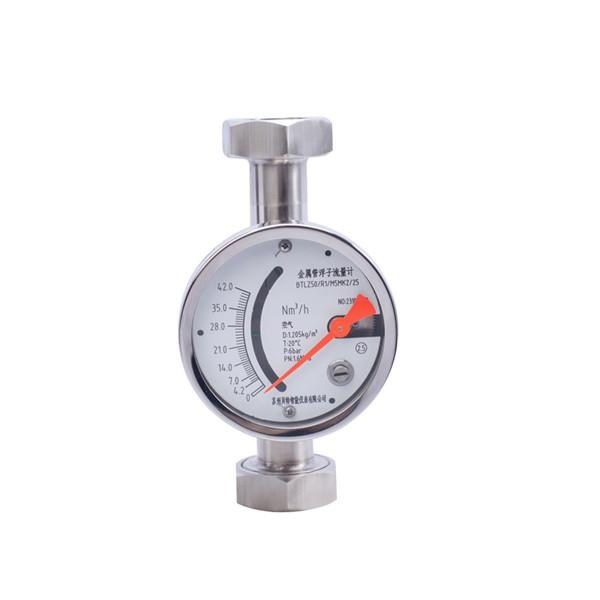

BTLZ series intelligent metal tube rotor flowmeter is a variable area flow meter based on float position measurement.

It adopts all-metal structure, small size, low pressure loss and large range ratio (10~20:1)

Optional transmitter with HART communication function, easy to install and maintain

Widely used in complex and harsh environments in various industries

Flow measurement and process control for small flow rates, low flow rates, and various harsh media conditions.

Specification

Feature

The BTLZ series of intelligent metal tube rotor flow meters have a variety of measurement forms for users to choose from based on different user needs and occasions. According to the output form, they are divided into local indication type, remote transmission type, and control alarm type. ; According to the explosion-proof requirements, it can be divided into three types: ordinary type, intrinsically safe type, and isolation explosion-proof type.

BTLZ series intelligent metal tube rotor flowmeter adopts Honeywell's non-contact and hysteresis-free magnetic sensor to detect changes in magnetic field angle, and is equipped with a high-performance MCU, which can realize liquid crystal display: instantaneous flow, total amount, loop current, and ambient temperature. , damping time, small signal removal amount. Optional 4~20mA remote transmission output (can be equipped with HART communication), pulse output, upper and lower limit alarm output and other functions. This type of intelligent signal transmitter has high accuracy and reliability, can replace imported instruments of the same type, and has Features include high cost performance, online parameter calibration, and power-off protection.

The design and production of the BTLZ series intelligent metal tube rotor flowmeter also takes into account the user's process flow requirements. There are bottom-in and top-out installation types, top-in and bottom-out installation types, side-in and side-out installation types, bottom-in and side-out installation types, and horizontal installation types. Type and other installation methods are optional.

/ METAL STRUCTURE DESIGN

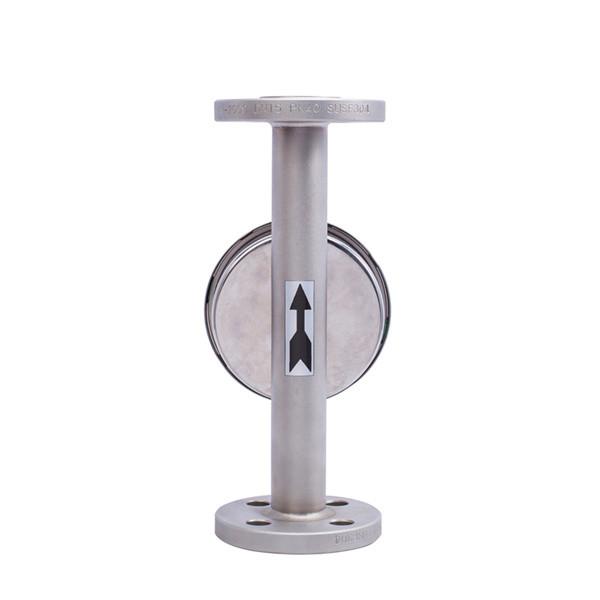

Sturdy all-metal structure design, suitable for measuring gases and liquids in various industries. one
Case structure design
/ CASE STRUCTURE DESIGN
The new case structure design can be used in high-temperature environments without adding components. two
Conical measuring tube
/CONICAL MEASURING TUBE
The specially designed tapered measuring tube has a wider measuring range and better measuring linearity. three
Various connection methods
/CONNECTION METHODS
A variety of process connection methods such as flanges, clamps, and threads are available to suit most factory application needs. Four
Measurement of some materials optional
/ MATERIAL OPTIONAL
Stainless steel, titanium, Hastelloy, PTFE, FEP and other materials. five
magnetic coupling system
/MAGNETIC COUPLING SYSTEM
The specially designed magnetic coupling system can significantly improve the accuracy and stability of measurement.

Standard dimensions and weight

Jacket type overall dimensions and weight

Lined FEP type overall dimensions and weight​

Dimensions and weight of top-in and bottom-out type

Side-in and side-out type: overall dimensions, weight and pressure loss

Bottom entry and side exit type: overall dimensions, weight and pressure loss

Horizontal installation type: overall dimensions, weight and pressure loss
