Handheld Ultrasonic Flow Meter 4-20mA Output Or 0-20mA Output
Handheld Ultrasonic Flow Meter 4-20mA Output Or 0-20mA Output
Handheld Ultrasonic Flow Meter 4-20mA Output Or 0-20mA Output
Handheld Ultrasonic Flow Meter 4-20mA Output Or 0-20mA Output
Handheld Ultrasonic Flow Meter 4-20mA Output Or 0-20mA Output
Handheld Ultrasonic Flow Meter 4-20mA Output Or 0-20mA Output
Handheld Ultrasonic Flow Meter 4-20mA Output Or 0-20mA Output
Handheld Ultrasonic Flow Meter 4-20mA Output Or 0-20mA Output
Specifications
Place of Origin :
CHINA
Brand Name :
BEITE
MOQ :
1
Delivery Time :
48H
Supply Ability :
3000 Piece/Pieces per Month mini flow meter
Certification :
CE ISO
Price :
Negotiate
Packaging Details :
carton or customers requests available
Payment Terms :
T/T, Western Union
Description

DN15-DN100 Mechanical Indicator Steam Metal Tube Rotameter Variable Area Sewage Chlorine Oxygen Nitrogen Gas

Description

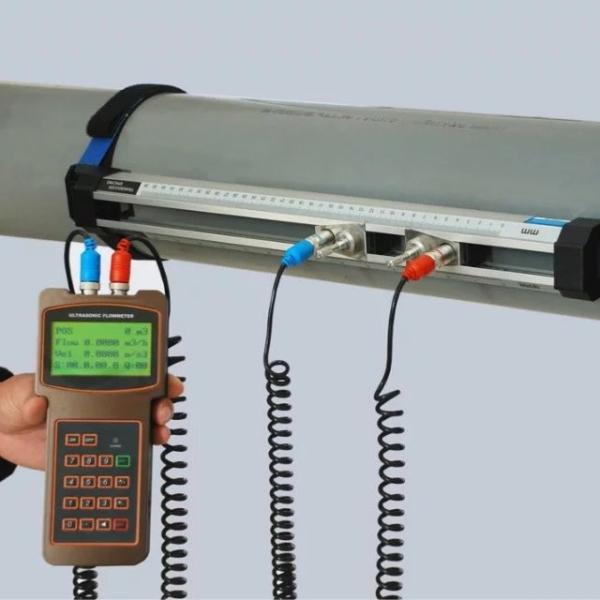

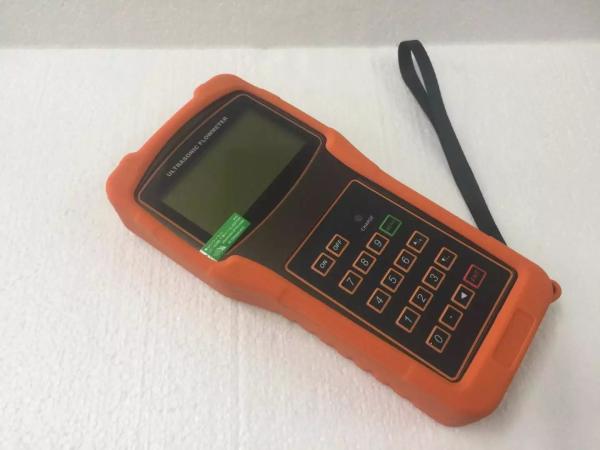

The handheld ultrasonic flowmeter is suitable for online calibration and patrol measurement of liquid flow in various industrial sites. It has the characteristics of high measurement accuracy, good consistency, battery power supply, simple operation, and easy portability. It is small in size and light in weight. The product has been It has been exported to Japan, South Korea, Australia, the United States and other regions, and has been widely praised.

Measurement accuracy: better than 1%
Repeatability: better than 0.2%
Working power supply: 90~230VAC (built-in nickel metal hydride rechargeable battery, can continue to work for 12 hours after charging)
Installation method: external installation, simple and convenient operation
Display: 4 lines of Chinese characters display instantaneous flow, flow rate, cumulative flow, signal status, etc. on the same screen
Signal output: non-isolated RS232 (FUJI extended protocol) 1 isolated OCT output
Other functions: The built-in data logger can record time, accumulated flow, signal status, working time, etc. The standard data interface RS232 is used for network detection or exporting recorded data for self-diagnosis, prompting whether the current working status is normal.


specification

Technical Parameters HSModel H M Model Standard S1 Model Standard M1 Model Standard L1 Model high temperature S1 HModel high temperature M1HModel
Applicable pipe diameter (mm) 15～100 50～700 15～100 50～700 300～6000 15～100 50～700
Material Aluminum alloy ABS Special high temperature materials
working frequency 1MHz
Common installation methods V(N,W) V,Z V(N,W) V,Z Z V(N,W) V,Z
Calibration Whole machine pairing and calibration
magnetic YES NO
proper temperature 0℃~70℃ 0℃~160℃
Protection level IP65
Dimensions 200×25×25 280×40×40 45×30×30 60×45×45 80×70×55 90×85×24 90×82×29
Mass (grams) 250 1080 75 250 650 94 150
Media type Water, seawater, sewage, alcohol, various oils and other single, uniform and stable liquids that can conduct ultrasonic waves
Medium turbidity ≤20000ppm and small bubble content
Applicable pipes Uniform and dense pipes such as carbon steel, stainless steel, cast iron, copper, PVC, aluminum, fiberglass, etc. are allowed to be lined
Pipe lining Epoxy asphalt, rubber, mortar, polypropylene, polystyrene, bakelite, PTFE, etc.
signal cable Standard configuration: 5 meters × 2, optional 10 meters × 2 or 15 meters × 2

Product structure

Handheld Ultrasonic Flow Meter 4-20mA Output Or 0-20mA OutputHandheld Ultrasonic Flow Meter 4-20mA Output Or 0-20mA OutputHandheld Ultrasonic Flow Meter 4-20mA Output Or 0-20mA Output

Packing & Delivery
Handheld Ultrasonic Flow Meter 4-20mA Output Or 0-20mA Output

FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
