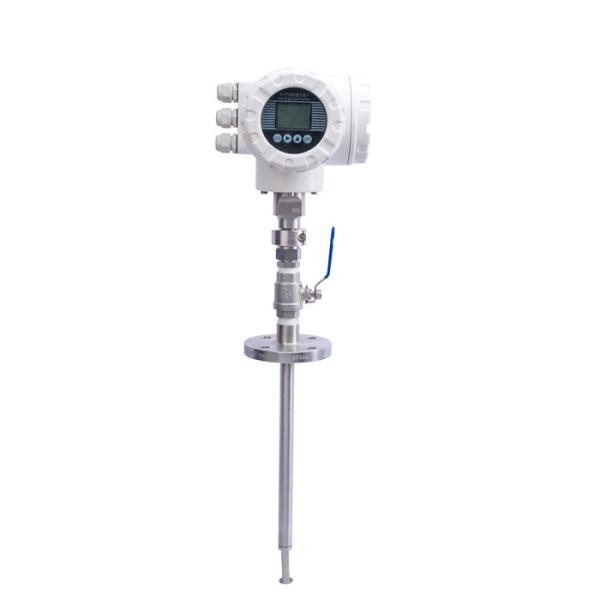

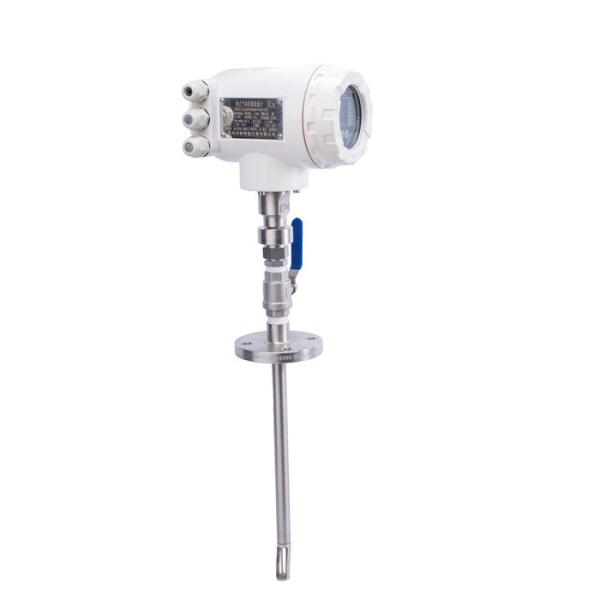

Insertion Type Air Thermal Gas Mass Flow Meter RS-485 Modbus RTU Hydrogen Gas
Insertion Type Air Thermal Gas Mass Flow Meter RS-485 Modbus RTU Hydrogen Gas
Insertion Type Air Thermal Gas Mass Flow Meter RS-485 Modbus RTU Hydrogen Gas
Insertion Type Air Thermal Gas Mass Flow Meter RS-485 Modbus RTU Hydrogen Gas
Insertion Type Air Thermal Gas Mass Flow Meter RS-485 Modbus RTU Hydrogen Gas
Insertion Type Air Thermal Gas Mass Flow Meter RS-485 Modbus RTU Hydrogen Gas
Insertion Type Air Thermal Gas Mass Flow Meter RS-485 Modbus RTU Hydrogen Gas
Insertion Type Air Thermal Gas Mass Flow Meter RS-485 Modbus RTU Hydrogen Gas
Insertion Type Air Thermal Gas Mass Flow Meter RS-485 Modbus RTU Hydrogen Gas
Insertion Type Air Thermal Gas Mass Flow Meter RS-485 Modbus RTU Hydrogen Gas
Specifications
Place of Origin :
CHINA
Brand Name :
BEITE
MOQ :
1 Piece/Pieces
Delivery Time :
5 working days after payment
Supply Ability :
3000 Piece/Pieces per Month mini flow meter
Certification :
CE ISO
Price :
Negotiate
Packaging Details :
carton or customers requests available
Payment Terms :
T/T, Western Union
Description

Highlights
1. temperature and pressure compensation is not necessary for gas flow measurement
2. No moving parts and reliable
3. Long service life
4. Easy assembly and low maintenance cost, Installation without shutting-down operation is realized.
5. RS-485 communication realize factory automation and integration
6. Suitable for pipe size DN65~DN4000
7. Resistance to high temperature

Product Paramenters
PERFORMANCE
Technical parameter
STRUCTURE TYPE
Plug-in
Pipeline
MEASURING MEDIUM
Common steady-state gases (except unstable media such as acetylene and boron trichloride)
PIPE DIAMETER RANGE
DN50~4000mm
DN6~2000mm

FLOW RATE RANGE
0.1~100Nm/s
ACCURACY
1~2.5%
OPERATING TEMPERATURE
Sensor:-40~+300℃converter:-20~+45℃
WORK PRESSURE
Medium pressure≤2.5MPa
Medium pressur≤1.6MPa
POWER SUPPLY
24VDC Power should be greater than 18W
RESPONDING SPEED
1S
OUTPUT SIGNAL
4-20mA(optical isolation,maximum load 500)RS-485(optical isolation)
ALARM
1-2 normally open contacts
SUPPLY TYPE
Integrated structure
PIPE MATERIAL
Carbon steelstainless steelplastic, etc.
LIVE DISPLAY
Four-line LCD display
DISPLAY CONTENT
Mass flow.standard volume flow.cumulativeflowvelocitv.etc
PROTECTION LEVEL
IP65
SENSOR MATERIAL
Stainless steel
Carbon steel


Details Images

Insertion Type Air Thermal Gas Mass Flow Meter RS-485 Modbus RTU Hydrogen Gas


Packing & Delivery
Insertion Type Air Thermal Gas Mass Flow Meter RS-485 Modbus RTU Hydrogen Gas

FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
