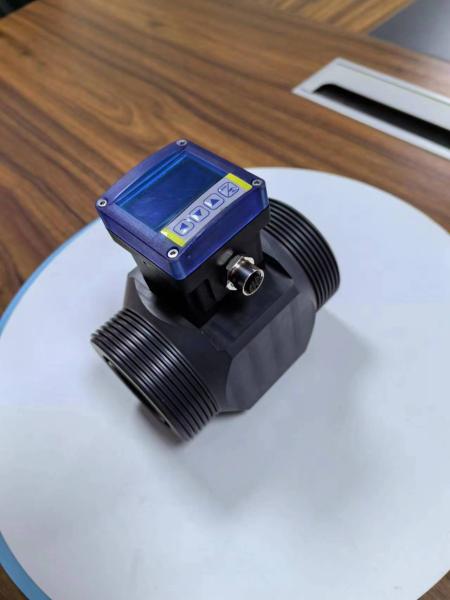

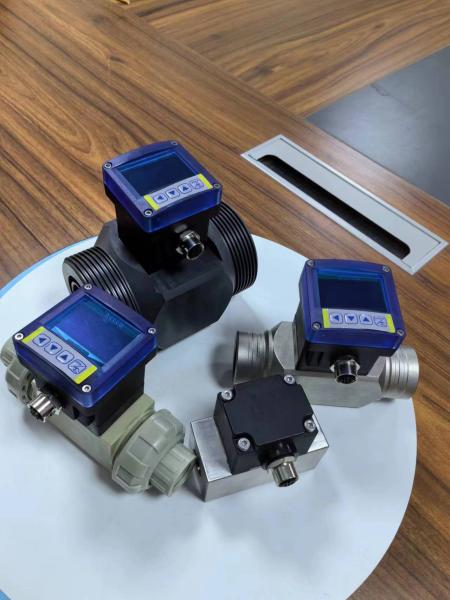

Real Time Reaction Turbine Flow Meter For Water And Chemical Fluid Measurement
Real Time Reaction Turbine Flow Meter For Water And Chemical Fluid Measurement
Real Time Reaction Turbine Flow Meter For Water And Chemical Fluid Measurement
Real Time Reaction Turbine Flow Meter For Water And Chemical Fluid Measurement
Specifications
Brand Name :
BEITE
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 Piece/Pieces
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
3000 Piece/Pieces per Month mini flow meter
Delivery Time :
5 working days after payment
Packaging Details :
carton or customers requests available
Accuracy level :
0.5/1.0
Material :
304 stainless steel 316 stainless steel
Explosion-proof level :
ExdllBT6
output :
4~20mA
Power supply :
Voltage: +5~24VDC, current: ≤10mA
Medium temperature :
-20~+120℃
ambient temperature :
-20~+55℃
Description

Real Time Reaction Turbine Flow Meter For Water And Chemical Fluid Measurement

Description

Plastic impeller flow meters are mainly used in the semiconductor industry. It has high precision, small size and all-plastic structure. Strong corrosion resistance!

Measuring fluid water or chemical fluid
measurement accuracy ±1.0%of F.S.@25℃
maximum flow rate 10m/s max
minimum flow rate 0.3m/smin
work pressure 5Kg/cm²
Flow range 10:01
Reaction time real time
Material Main pipe: PP/Impeller: PVDF
Operating temperature <80℃
working environment -20℃~+80℃;35%~85%RH
protection level IP-65
control output 4～20mA; RS485; upper and lower limit alarm

① Instrument display

② Wire
③ Sensor

④ Impeller
⑤ Pipe body

⑥ Pipe connector

Real Time Reaction Turbine Flow Meter For Water And Chemical Fluid Measurement

Overall structural dimensions


Real Time Reaction Turbine Flow Meter For Water And Chemical Fluid Measurement

Unit: (mm)

Pipe diameter H L φD
DN15 95 140 40
DN20 97 150 53
DN25 102 160 60
DN40 120 185 83
DN50 133 197 110

Correct installation location

Real Time Reaction Turbine Flow Meter For Water And Chemical Fluid Measurement

Correct Incorrect

Real Time Reaction Turbine Flow Meter For Water And Chemical Fluid Measurement

Correct Incorrect

Real Time Reaction Turbine Flow Meter For Water And Chemical Fluid Measurement

Correct Incorrect

Real Time Reaction Turbine Flow Meter For Water And Chemical Fluid Measurement

Correct Incorrect

Sensor conversion range

Specifications and models DN15 DN20 DN25 DN40 DN50
scope(LPM) 0～10(30) 0～70 0～110 0～240 0～360
Tips 1) Transmission range: 4.0～20.0mA
2)485 communication protocol: Modbus RTU protocol

Modbus Holding register address

Register address Numeric type illustration
1999 UINT16 Instantaneous flow rate*100 unit m/h
2000 UINT16 The lower 16 bits of cumulative flow rate * 100, unit m
2001 UINT16 Accumulated flow rate * 100 high 16 digits unit m³

Wiring diagram

Real Time Reaction Turbine Flow Meter For Water And Chemical Fluid Measurement

Installation Precautions
1) Please ensure that the measuring pipe is full of water level, otherwise it will cause measurement errors.
2)Can be installed horizontally or vertically.
3) When installing the flow sensor, please keep an appropriate length of straight pipe before and after the flow sensor to prevent eddy currents. (The upstream distance must exceed 10 times DN; the downstream distance must exceed 3 times DN)
4) Please install an appropriate filter in front of the flow sensor to prevent foreign matter from damaging the rotor.
5) Do not flush the pipeline after the flow sensor is installed, otherwise the ceramic shaft may be damaged.

Packing & Delivery
Real Time Reaction Turbine Flow Meter For Water And Chemical Fluid Measurement

FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
