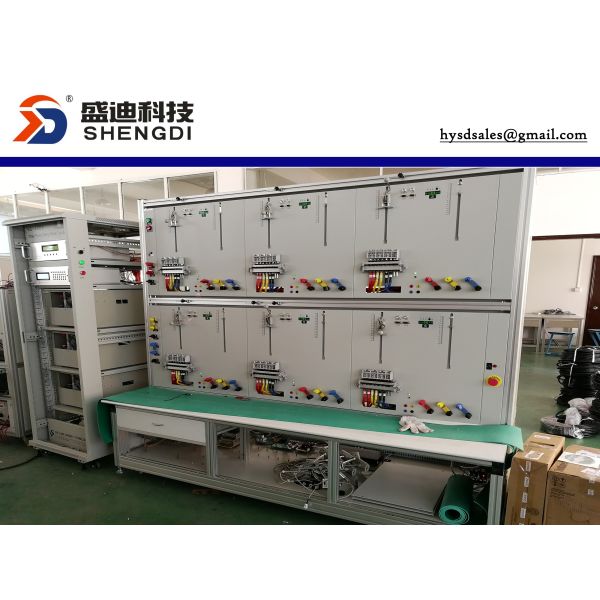

HS-6303E THREE PHASE ENERGY METER TEST BENCH-6 Positions,0.05%Class,1mA~200A current
HS-6303E THREE PHASE ENERGY METER TEST BENCH-6 Positions,0.05%Class,1mA~200A current
HS-6303E THREE PHASE ENERGY METER TEST BENCH-6 Positions,0.05%Class,1mA~200A current
HS-6303E THREE PHASE ENERGY METER TEST BENCH-6 Positions,0.05%Class,1mA~200A current
Specifications
Brand Name :
SHENGDI TECHNOLOGY
Model Number :
HS-6303E
Certification :
CNAS,SGS.
Place of Origin :
ZHEJIANG.CHINA
MOQ :
1 SET
Price :
USD$1~100000/SET
Payment Terms :
L/C, T/T
Supply Ability :
50 SET/PER MONTHS
Delivery Time :
35~45Days
Packaging Details :
WOODEN CASE
Accuracy :
0.05% Class
Voltage :
Up to 300V
Positions :
6 Positions
Current Source :
1mA~200A
RSM :
HS-5302
Description

HS-6303E THREE PHASE ENERGY METER TEST BENCH-16 Position

SUIT FOR "CT &DC METER" & Single-phase/Three-phase meter

1.OVERVIEW

HS-6303E three-phase energy meter testing bench adopts SPWM digital power source technology, comprises high-grade standard digital watt-hour meter, multi-path voltage transformer, can implement multi-station high accuracy error testing.

This testing bench configurates humanized PC processing software, can provide integrated solution of the energy meter automatic check. Meanwhile, it provides the requested DLL of the second development, has improved the self-control and management for the bench by the customer.

This testing bench can be widely used for the energy meter measurement and testing in electric power, water conservancy, traffic transportation and colliery departments, as well as the energy meter testing and production of the energy meter manufacturer.

This series of the testing bench can test all kind of single phase energy meters, single phase multi-function meters, single phase intelligent meters, other meters with special wiring and ANSI standard meter. It is an ideal new generation multi-station energy meter testing device.

2. APPLICABLE STANDARDS

IEC 60736 Testing equipment for electrical energy meters.

3. GENERAL TECHNICAL SPECIFICATION

3.1 Power Source

HS-6303E THREE PHASE ENERGY METER TEST BENCH-6 Positions,0.05%Class,1mA~200A current

Voltage amplifier

No. DESCRIPTION MEASURMENT
1 Electronic protection against Overload and Short Circuit
2 LED indication for faults like overload,short circuit and power supply failure will display
3 Efficiency Better than 85%.
4 Stability ＜0.05%/120s
5 Distortion factor < 0.5 %.
6 Provision for super-imposing of harmonics in the range of 2 nd to 21th harmonic
7 Test voltage range 30~300V
8 Output Power Not less than 1000VA
9 Accuracy of the test setting amplitude 0.05 %
10 Accuracy of the test setting phase adjustment 0.01 °

Current amplifier

No. DESCRIPTION MEASURMENT
1 Electronic protection against Overload and Short Circuit
2 LED indication for faults like overload,short circuit and power supply failure will display
3 Efficiency Better than 85%.
4 Stability ＜0.05%/120s
5 Distortion factor < 0.5 %.
6 Provision for super-imposing of harmonics in the range of 2 nd to 21th harmonic
7 Test current range 1mA~120A
8 Output Power Not less than 1500VA
9 Accuracy of the test setting amplitude 0.05 %
10 Accuracy of the test setting phase adjustment 0.01 °

3.2 Reference Meter(Standard Meter)-HS-5302 Three Phase Reference Meter

HS-6303E THREE PHASE ENERGY METER TEST BENCH-6 Positions,0.05%Class,1mA~200A current

3.3 Isolated Current Transformer

ISOLATED CURRENT TRANSFORMER(ICT)

HS-6303E THREE PHASE ENERGY METER TEST BENCH-6 Positions,0.05%Class,1mA~200A current

3.4 CALIBRATION CERTIFICATION

As customer's requirement,we can supply 3rd part calibration certification. with CNAS mark.

HS-6303E THREE PHASE ENERGY METER TEST BENCH-6 Positions,0.05%Class,1mA~200A current

HS-6303E THREE PHASE ENERGY METER TEST BENCH-6 Positions,0.05%Class,1mA~200A current

ASK FOR PRICE.

HS-6303E THREE PHASE ENERGY METER TEST BENCH-6 Positions,0.05%Class,1mA~200A current

HS-6303E THREE PHASE ENERGY METER TEST BENCH-6 Positions,0.05%Class,1mA~200A currentHS-6303E THREE PHASE ENERGY METER TEST BENCH-6 Positions,0.05%Class,1mA~200A current
