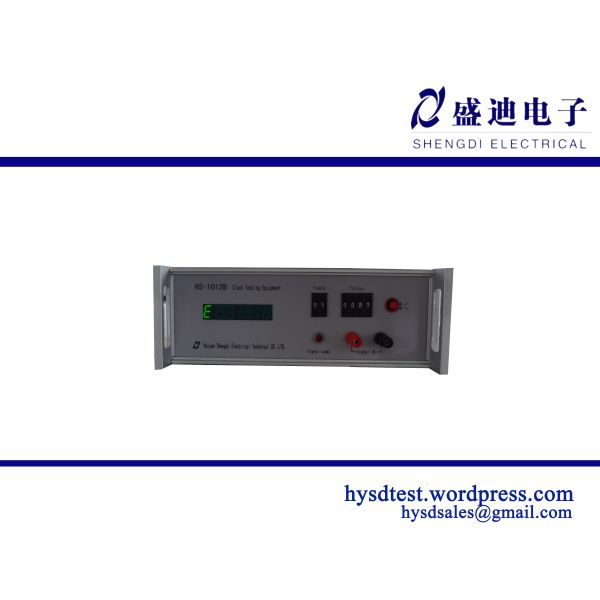

HS-1012B Energy Meter Clock Test Equipment(New Model)
HS-1012B Energy Meter Clock Test Equipment(New Model)
Specifications
Place of Origin :
China
Brand Name :
Shengdi Electrical
Certification :
ISO9001:2008
Model Number :
HS1012B
MOQ :
1 Pcs
Price :
USD$1~100000/SET
Packaging Details :
Wooden Case
Delivery Time :
15 days
Payment Terms :
TT/LC
Supply Ability :
300
Description

HS-1011B Energy Meter AC Power Analyzer


Technical Specification

HS-1012 clock tester is a kind of testing device to measure the time accuracy of multi-rate electronic watt-hour meter. It is embedded with high-precision time crystal oscillator, can be used separately to measure the time accuracy of a watt-hour meter, or be used along with the watt-hour meter testing device manufactured by Shengdi Electrical to measure the time accuracy of a watt-hour meter.

Main Features

1.Second pulse accuracy measurement

2.Crystal oscillation frequency accuracy measurement

3.Switched display between data error and second error

4.Equipped with RS232 interface

5.Equipped with controllable output frequency and output channel for easy function extension of this testing device

6.Power pulse output function for easy calibration of the device

7.Small size and light weight for portable and hand-held on-site operation

Technical Parameters

1.Time standard accuracy: 2×10-7 /S

2.Input frequency: 10MHz

3.Input signal: TTL signal

4.Output frequency: 500-1.25MHz

5.Measurement data display: LED display, digits

6.Communication interface: RS232

7.Power supply: AC 220V±10%

8.Outer dimensions: 240×300×110mm

HS-1012B Energy Meter Clock Test Equipment(New Model)
