6-18 Channels Color Paperless data logger MT100R90 from METERY TECH.
6-18 Channels Color Paperless data logger MT100R90 from METERY TECH.
Specifications
Place of Origin :
Dalian China
Brand Name :
oem
Certification :
ISO CE
Model Number :
9888
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
3-5 days
Payment Terms :
T/T Western Union MoneyGram
Supply Ability :
200 sets/month
cel phone :
17785279887
celphone :
18878952222
mobile :
18878952222
cel. :
18878952222
tel :
18878952222
Description
Email: info@metery-tech.com, sales@meterytech.com
---------------------------------------------------------------------------------
Cellphone: +86 18841127006
Skpye: meterytech
LINE: meterytech
Whatsapp / Viber: +86 18841127006
Wechat: Kai123263788
QQ: 123263788

Metery Technology Inc

--------------------------------------------------------
www.meterytech.com

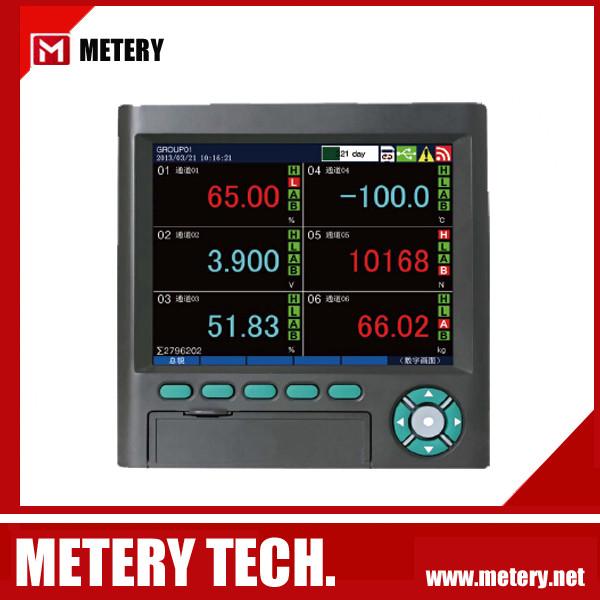

Picture of 6-18 Channels Color Paperless data logger MT100R90 from METERY TECH.
6-18 Channels Color Paperless data logger MT100R90 from METERY TECH.

Main features:
5.6 inches,640*480 high resolution TFT color display screen
0.2% grade accuracy, measuring control period 0.1s.
Max 18 channel optional, universal input, total isolated between channels.
Record interval 0.1s - 60s total 9 grades optional set. Can storage 100 Million datas.
Standard configuration USB2.0 restoring interface, support max 32GB U disk,
User-defined Black-White back ground color.
Al.-Alloy shell and removable terminal.
Standard configuration Out source power, 24V±5%, 200mA below.
Optional communication, Transmitter and printing functions.

Main parameters

Items

Parameters

MT100R90

6-18 channels optional, 0.2% grade accuracy, 10 times/s. 4GB memory storage

Overall dimension

144*144*230mm, hole size 138*138mm

Display

5.6 inches TFT color screen (Resolution 640*480)

Channel quantity

6-18, 6/12/18 channels optional.

Input signal

Analog value input:
Universal input, choose signal input by parameters setting.
Thermocouple (K/S/R/B/N/E/J/T/WR325/WR526).
Thermocouple (Pt100/Cu100/Cu50/G53/BA1/BA2).
Voltage (±20mV/±50mA/±100mV/(0-5)V/(1-5)V), Current ((4-20)mA/(0-20)mA), Remote pressure meter.
Pulse input:
1-2 Channels pulse input (Equipped 12VDC out source power)
When Pulse input and Analog input both contains, analog value input max 12 channels.

Alert (Optional)
(250V, AC/5A,
Resistive load)

1-12 points relay output
18 channels meter max 6 points relay output
12 channels meter max 12 points relay output
When choose 12 points relay output, transmitter max 5 (A12M5)

Transmitter (Optional)
(Current output (4-20) mA)
(Resolution: 1/3000, load ability 600 Ohm)

1-6 transmitter output
18 channel meter max 2 transmitter output
12 channel below meter max 6 transmitter output
When choose 6 transmitter output, Relay output max 11 points (A11M6)

Communication (Optional)

(Communication rate: 2400,4800,9600, 19200, 38400)
(ASCII and Mod-bus-RTU by parameters setting )

Printer port (Optional)
(Only can choose one of communication port and printer port)

RS232 port
RS485 port

Power specifications

100-240V AC 50/60 Hz

10-24V DC
