1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ
1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ
1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ
1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ
1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ
1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ
1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ
1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ
1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ
1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ
1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ
1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ
Specifications
Brand Name :
METICA
Model Number :
MTGF-1000
Certification :
CE
Place of Origin :
Shanghai
MOQ :
1 SET
Payment Terms :
L/C, T/T
Supply Ability :
100 SETS PER MONTH
Delivery Time :
25-30 days
Packaging Details :
Fumigation-free wooden boxes that meet international standards
Name :
Edible oil/coconut oil filling machine
Other name :
Automatic Bottle Filling Plant
Application :
For food and beverage
Capacity :
700-1500 BPH(customizable)
Filling volume accuracy :
>99%
Length of the line :
7000mm
Warranty :
1 year
Workflow :
filling-capping-labeling-collecting
Voltage :
220V/50HZ
Type :
Filling Machine, bottling line
Bottle type :
Plastic Bottle And Glass Bottle,PET Plastic Bottle / glass bottle,round bottle
Automatic grade :
Automatic
Packaging type :
Bottles,cans, buckets
Description

220V Edible Oil And Coconut Oil Bottle Filling Plant

Application :

  • Mainly used to fill edible oil in plastic or glass bottle, widely used in food, chemical, beverages, and similar products.
  • Full filling line is automatic

Description:

  • 1) Easy to adjust and no bottle no filling. Accurate filling quantity and has counting function.
  • 2) Adopts volume type plunger pump filling with filling suffocate preventing from dropping and brushed , no bottle no filling , no drop no spill.
  • 3) Automatic filling, capping and labeling. Easy operation.
  • 4) PLC, control by touch screen

Work process:

  • 1) Put bottles on turn table feeding bottles to filling machine automatically
  • 2) Bottles conveyed to filling machine to fill automatically
  • 3) Bottle conveyed to capping machine cap automatically after filling
  • 4) Bottle conveyed to labeling machine label automatically
  • 5) Collect bottles with a turn table(optional)

the Whole Line technical parameter

Speed 700-1500BPH
Filling accuracy >99%
Filling volume 100-1000ml, 300-3000ml, 500-5000ml (can be customized)
Filling method piston+servo motor driven
Power 220V 50/60Hz, 6kw
Air supply 0.6 MPa
Bottles applicable A wide shape range
Application Liquid or viscosity products
Feature PLC, touch screen, tank, level meter

1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ

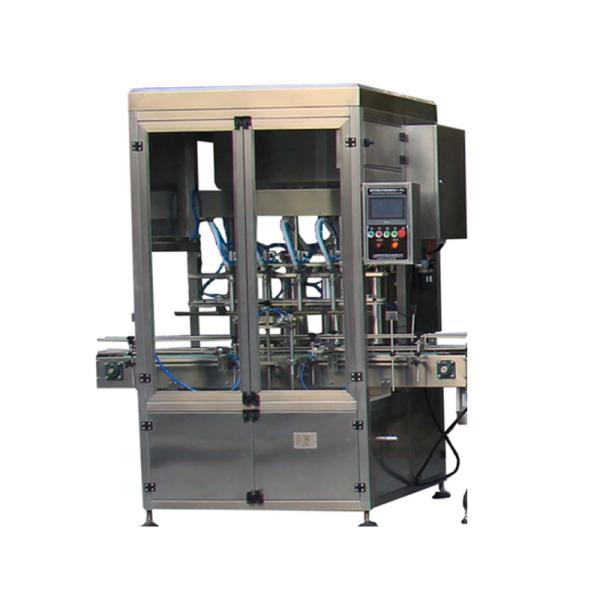

Filling machine:

1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ

Capping machine:

1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ

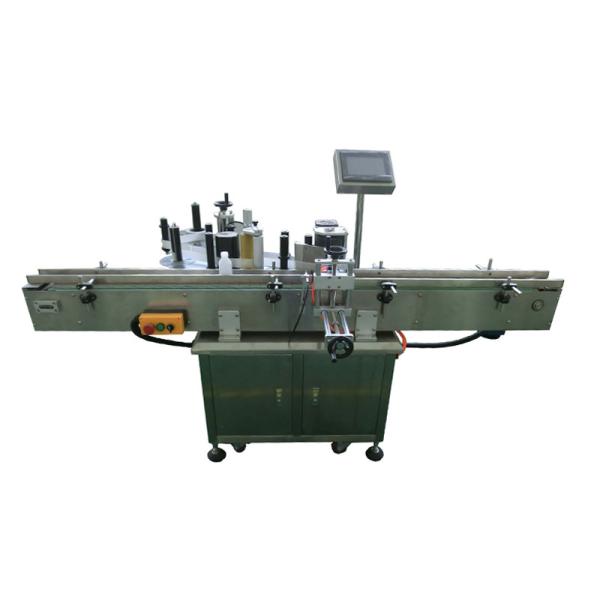

Labeling machine:

1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ

Samples display:

1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ

Service flow:

1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ

Pre-sale Service:

1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ

1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ

Packing&Shipping:

1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ

After-sale service:

1 - 5L Edible / Coconut Oil Bottle Filling Machine 220V / 50HZ

METICA Machinery
provides one-stop service of bottling equipment in developing, manufacturing, shipping and support for customers from all over the world.

  • Real manufacturer: since 2008, with 2 production bases and mature team.
  • Flexible machinery: for filling, capping, labeling, sealing and cartoning.
  • Customization: innovative designs provide you suitable packaging solutions.
  • Strong support: video demonstrations training before and after sales, on-site service available.
  • Guarantee: 1 year free parts, all life service.
