Resolution 0.5um O Ring Inspection Machine With 100X Objective Lens
Resolution 0.5um O Ring Inspection Machine With 100X Objective Lens
Specifications
Brand Name :
MICRO ACCURACY
Model Number :
VOC600
Certification :
CE
Place of Origin :
china
MOQ :
1 Piece
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50, 000PCS/Year
Delivery Time :
12 working days
Packaging Details :
Packed in aluminum plastic film firstly, and then reinforced with wooden case for outer packing
Name :
Profile Projector
Screen diameter :
600mm
Accuracy :
(2.5+L/100)μm
Resolution :
0.5μm
Travel :
200mm*100mm
Lens :
5X, 10X, 20X, 50X, 100X
Voltage :
110V~220V
Description

O Ring Inspecting machine

Usage
Quality products Optical Comparator VOC600 from Micro Accuracy provide dimensional measurement of O Rings, Silicone, O-rings, seal kits, as well as angle measurement, it is very easy, fast and accurate for process control and improvement.

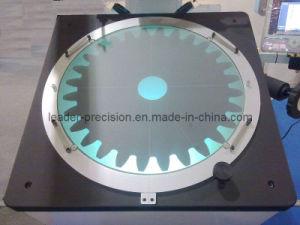

With producing an extremely sharp and clear Superb-high resolution image on the projection screen, the optical comparator VOC600 can automatically compare a work piece to its CAD data and get an accurate and repeatable OK/NG result.

Features & Advantage
• Overhead illumination allows a large, conveniently positioned screen so that projected images can be easily traced or compared with a template
• Digital readout protractor screen (including zero setting, ABS/INC switch) for easy and error-free angle measurement
• The standard oblique surface illumination unit provides clear and bright images,allowing easy inspection of non-reflective work-pieces such as plastic parts or printed materials
• The optional optical edge detector eliminates human error that may be associated with visual alignment, ensuring fast, accurate and consistent measurements, regardless of operator skill
• The optional measuring software allows easy and convenient operation

Technical data

Model VOC600
Projection image Inverted
Stage glass size(mm) 270*170
X axis travel (mm) 200
Y axis travel (mm) 100
Z axis travel(mm) 50 (for focus)
Resolution(μm) 0.5
Measuring unit Linear scale
Measuring accuracy(μm) 2.5+L/100, L=measuring length (mm)
Projection screen size (mm) Ф615, engraved with cross-hairs
rotation angle 0~360°
rotation resolution 1' or 0.01°
Illumination reflective 24V/150W halogen lamp
contour 24V/150W halogen lamp
Objective lens magnification 5X 10X 20X 50X 100X
object of view (mm) Ф120 Ф60 Ф30 Ф12 Ф6
working distance (mm) 242.8 143.2 85.5 92 48.5
max. measuring height(mm) 50 50 50 50 48
Cooling Built-in cooling fans
Power supply AC100~240V 50/60Hz
