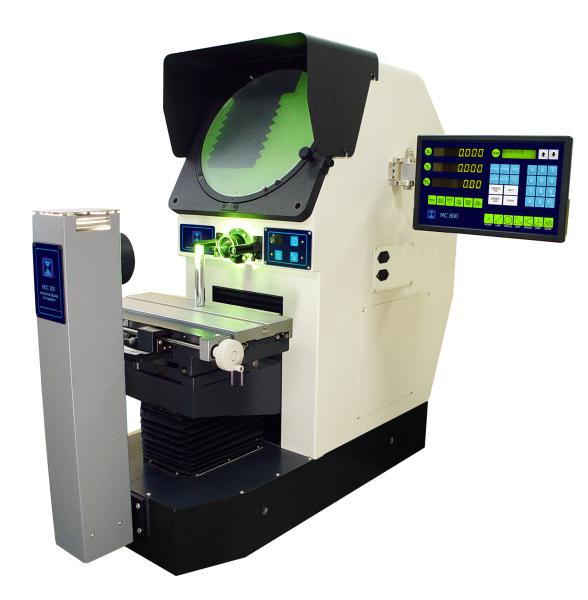

Geometric Horozontal Optical Measurement Device HOC300
Geometric Horozontal Optical Measurement Device HOC300
Specifications
MOQ :
1 Piece
Supply Ability :
50, 000PCS/Year
Payment Terms :
L/C, T/T, Western Union
Place of Origin :
CHINA
Price :
negotiation
Brand Name :
L&D
Model Number :
HOC300
Certification :
CE
Packaging Details :
standard exporing package
Working Table′s Size(mm) :
400*150mm
Stage Travel X-Axis :
200mm
Stage Travel Y-Axis :
100mm
Stage Travel Z-Axis :
75mm(Focus)
Accuracy :
2.5+L/150
Screen Diameter :
Dia.300mmwith 4 Film Clips
Screen Rotary Range :
0-360
Digital Readout :
DC-3000 Counter with RS232 Output
HS Code :
9031491000
Port :
Shenzhen, China
Description

Function of Horizontal Profile Projector (HOC300-2010)
1. Skew
2. Mm/inch conversion
3. ABS/INC conversion
4. Zero setting
5.1/2 calculation
6.0° 90° 270° 360° Conversion
7. Linear compensation
8. RS232 output
9. Geometric measurement

Technical data

Item No. HOC300-2010
Working table's size(mm) 400*150mm
Stage Travel X-axis 200mm
Stage Travel Y-axis 100mm
Stage Travel Z-axis 75mm(focus)
Accuracy (2.5+L/150)µm
Screen Screen Diameter: Dia.300mmwith 4 film clips
Screen rotary range: 0°-360°
Rotary angle resolution:1' or 0.01°
Digital Readout DC-3000 Counter with RS232 output (can be used to gather the data and measure the point, line, circle, angle and distance).
Illumination Transmission and reflection:24V/150w-halogen lamp.
Power AC110-120v, 200-240v, single phase 50/60Hz Total power 400W
Cooling Fans
G.W/N.W 240KG/160KG
Dimension(L*W*H mm) 1090*585*1010 (mm)
