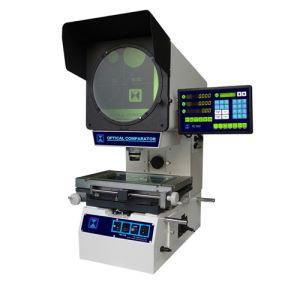

300mm screen large travel Profile Projector Measurement with 400mm*300mm travel
300mm screen large travel Profile Projector Measurement with 400mm*300mm travel
Specifications
Supply Ability :
1000PCS/Year
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
negotiation
Brand Name :
L&D
Model Number :
VOE-4030
Delivery Time :
13 WORKING DAYS
Certification :
CE
Packaging Details :
Standard Exporting Package
Model NO. :
VOE-4030
Stage Travel X Y 150mm*50mm :
Screen Diamete: 300mm
Metal Table′ S Size(mm) :
606×466mm
Glass Table′ S Size(mm) :
450*350mm
Stage Travel X-Axis :
400mm
Stage Travel Y-Axis :
300mm
Stage Travel Z-Axis :
100mm(for Focus)
Accuracy :
(2.5+L/100)um
Screen Rotary Range :
0° -360°
Origin :
Guangdong
HS Code :
9031491000
Port :
Shenzhen, China
Net weight :
250KG
Dimension :
1040×780×1120mm
Description

Character and Advantage for VOE-4030 profile projector
1. Full erect: Not be affected by upside down and division in the left and right
2. High precision: (3+L/75) μm is comparable to the accuracy of the foreign similar products
3. Large travel: 400*300*100mm(for the focus)
4. Large load: The accuracy remains stationery under the press of 50 kg
5. Projector head: Adjust the focus by ascending and descending
6. Edge detector: Automatically aim and gather data.

Specification

Obverse VOE-4030
Metal table' s size(mm) 606×466
Glass table' s size(mm) 450×350
Stage Travel X-axis 400mm
Stage Travel Y-axis 300mm
Stage Travel Z-axis 100mm(for focus)
Accuracy (3+L/75)µm
Screen Screen Diameter: Diameter 312mmwith 4 film clips
Screen rotary range: 0° -360°
Rotary angle resolution: 1' or 0.01°
Digital Readout QC200 Counter with RS232 output (can be used to gather the data and measure the point, line, circle, angle and distance).
Illumination Transmission and reflection: 24V/150w-halogen lamp.
Power AC110-120v, 200-240v, single phase 50/60Hz Total power 400W
Cooling Fans
G. W/N. W 300/250KG
Dimension(L*W*H) 1040×780×1120mm

Standard delivery

Digital Readout QC200 VOE-10X Objective Screen Clamp
Foot-Switch Power Cable Light source

Optional accessory

Measuring Software Edge Detector Charts (3 kinds)
VOE-20X Objective VOE-50X Objective VOE-100X Objective
Calibration Scale V-shape Clamp Swivel center support
Holder Clamp Rotary table
