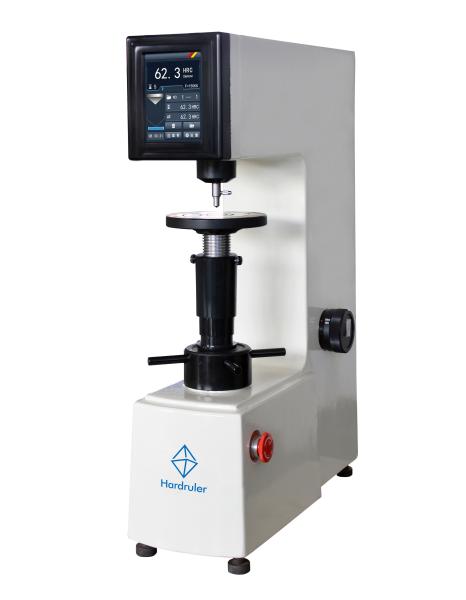

Touch Screen HR-150D Digital Rockwell Hardness Testing Machine
Touch Screen HR-150D Digital Rockwell Hardness Testing Machine
Specifications
Brand Name :
HARDRULER
Model Number :
HR-150D
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50, 000PCS/Year
Packaging Details :
Standard exporting package
Measuring Range :
HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV
Standard :
ISO, ASTM, GB/T
Calibrating Method :
Standard Hardness Test Blocks
Rated Voltage :
110V/220V
Dwell Time :
1-60s
Hardness Indication :
Digital LCD Display
Origin :
Guangdong
HS Code :
9024800000
Port :
Shenzhen, China
Description

Usage

Model HR-150D digital Rockwell hardness tester is suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It is widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.

Features

1. Accuracy, Reliability and durability at cheap price

2. Digital LCD reading of 12 regular Rockwell scales

3. Conversion to other hardness scales, such as HV, HB and HK

4. Integrated printer for test result and statistics

5. RS-232C interface is available

Specifications

Product name Digital Rockwell Hardness Tester
Model HR-150D
Rockwell scales HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV
Display conversion to HV, HB, HK scales
Preload 10kgf(98.07N)
Test loads 60kgf(588.4N), 100kgf(980.7N), 150kgf(1471N)
Loading control Automatic
Dwell time 1-60S
Hardness indication Digital LCD display/touch screen
Resolution 0.1HR
Data output Built-in printer and RS-232C
Max. height of specimen 185mm
Instrument throat 165mm
Dimension (L*W*H) 520 x215 x700mm
Packing dimension 630*440*960
Gross/Net weight 120kg/90kg
Power supply 220V or 110V AC, 50 or 60Hz
Accuracy Conforms to EN-ISO 6508 , ASTME-18, GB/T230.2

Standard delivery

Main unit 1pcs
Thermal printer 1pcs
Data-output RS-232C 1pcs
Diamond Rockwell indenter 1pcs
Ball indenter 1/16” 1pcs
Large flat anvil Ø150mm 1pcs
Small flat anvil Ø60mm 1pcs
V-anvil Ø40mm 1pcs
Hardness test block (85-100) HRB 1pcs
Hardness test block (57-70) HRC 1pcs
Hardness test block (20-33)HRC 1pcs
Adjustable foot 4pcs
Accessories case 1pcs
Anti-dust cover 1pcs
Instrument certificate 1pcs
Installation & user manual 1pcs
