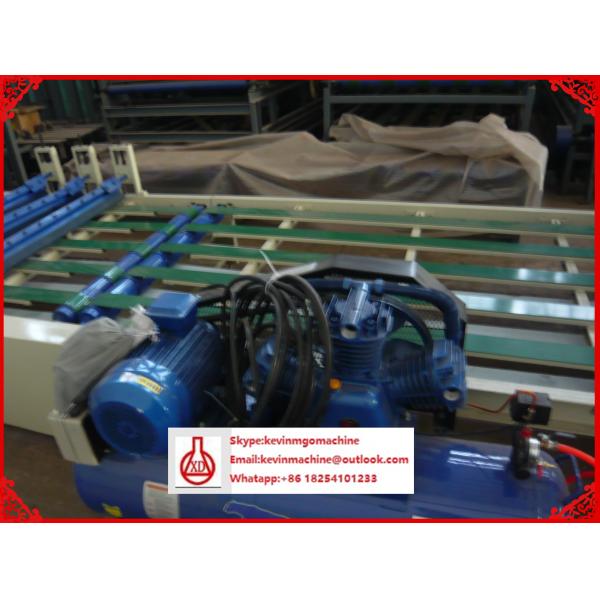

3 Phase Electric Standard Magnesium Oxide Board Production Line GB/T9775-1999
3 Phase Electric Standard Magnesium Oxide Board Production Line GB/T9775-1999
3 Phase Electric Standard Magnesium Oxide Board Production Line GB/T9775-1999
3 Phase Electric Standard Magnesium Oxide Board Production Line GB/T9775-1999
3 Phase Electric Standard Magnesium Oxide Board Production Line GB/T9775-1999
3 Phase Electric Standard Magnesium Oxide Board Production Line GB/T9775-1999
3 Phase Electric Standard Magnesium Oxide Board Production Line GB/T9775-1999
3 Phase Electric Standard Magnesium Oxide Board Production Line GB/T9775-1999
Specifications
Brand Name :
chuangxin
Model Number :
XD-D
Certification :
ce
Place of Origin :
CHINA
MOQ :
1 sets
Price :
negotation
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
packing
Production capacity :
2000sqm
Warranty :
1 years
Automatic grade :
Automatic
Description

3 Phase Electric Standard Magnesium Oxide Board Production Line GB/T9775-1999

XD-D model mgo board making machine with 1500 capacity full autoamtic

Advantages:

1) Product quality: product quality is priority to the international standard GB/T9775-1999 (equal to European Standard).

2) The gypsum board which produced by the gypsum board production line is heat-resistant, fire-resistant, insulated, light, nonpoisonous, little pollution, adjusting the humidity of the room.

3) We can offer a basket of services of design, producing, installation, commissioning and training, as well as turnkey project for customers.

No.

Test Item

National standard

Wall panel testing

1

Compressive strength

≥3.5MPa

≥3.7MPa

2

Drying shrinkage

≤0.6mm/m²

0.37mm/ m²

3

Hanging force

≥1000N 24hours

No 0.55mm crack in 24hours

≥1000N 24hours

No 0.55mm crack in 24hours

4

shock resistance

without crack shocked

by 30kgs sandbag five times

without crack shocked

by 30kgs sandbag five times

5

The bending failure load

≥1.5 times of the self

weight of the wall panel

≥2.5 times of the self weight

of the wall panel

6

radioactivity

Inner radiation index Ira≤1.0

Outer radiation index IY≤1.3

Inner radiation index Ira≤1.0

Outer radiation index IY≤1.3

7

density

≤90kgs/m²

≤43kgs/m²

8

Air insulation of sound

≥35dB

≥43dB

9

Fire resistance limit

≥1 h

≥ 1h

MAIN TECHNICAL SPECIFICATION

The length of the production line:38000mm × 2200mm × 2800mm

Total Weight: about 24000KG

Main Power: 35KW

Working Speed: 4m/min

Material : 45# steel, quenched HRC 58-62

Electric Standard: 380V / 50 HZ / 3 PHASE

Feeding Width: 1150mm /1200m

Effective Width: 950mm

Thickness of the coil: 0.3-0.8mm

Density of EPS:18KG/M3

Output: 600,000m2 per year

Thickness of the material:0.4-0.8mm

Width of Material:1200mm Max

Core Material:EPS Board

Production line speed:3-5m/min

Production width:1000mm/960mm

Production thickness:50mm-150mm

EPS Sandwich panel machine is made up of color of tiles and core of EPS

Application: Public construction, roof and wall of workshop, building, both etc

Function:wall panel ,roof panel

Characteristic:quick construction ,everlasting,beautiful

3 Phase Electric Standard Magnesium Oxide Board Production Line GB/T9775-19993 Phase Electric Standard Magnesium Oxide Board Production Line GB/T9775-1999
