24mm 12v 24v Brushed Dc Planetary Gear Motor

Quick Detail:

Warranty: 3 months

Gearing Arrangement: Planetary
Place of Origin: Guangdong, China
Voltage: 12-24v
Current: 0.44A
Lifetime: more than 200H
Shaft Size: 24mm
Rated Torque: 6.5kgf.cm

Description:

JGM024P0370 is a planetary-type geared motor with a voltage range of 12-24V, a Current of 0.44A, a lifetime of more than 200H, and an Output Torque of 6.5gf.cm, an Input Speed of 300RPM, and an Output Speed of 250RPM. This geared motor can be used in Intelligent robots, sweepers.

Specification:

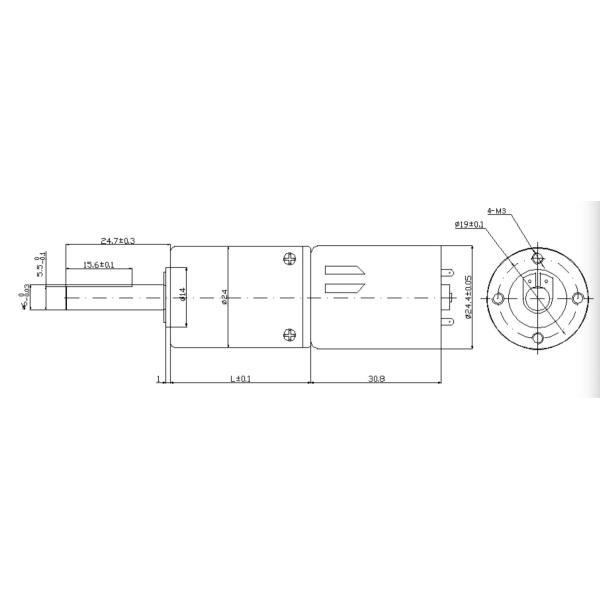

Gearbox Data

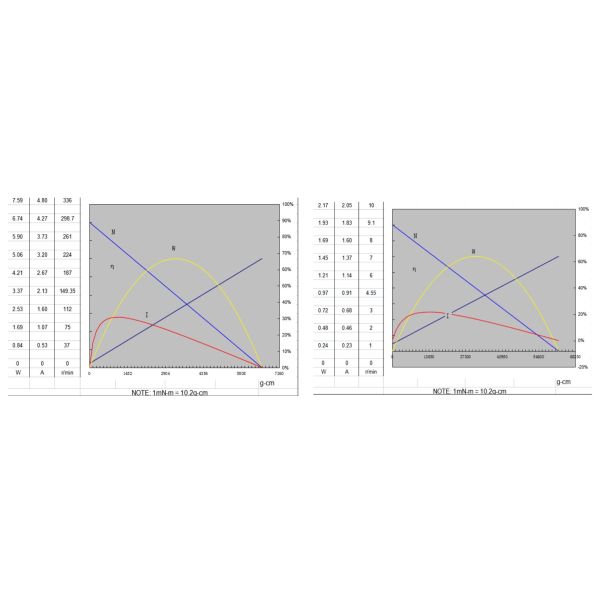

Motor Data ＆ Characteristics

Applications:

FAQ:

Q1. Can I have a sample order for micro gear motors?

A: Yes, we welcome sample orders to test and check quality.

Q2. What about the lead time?

A: 3-5 days for Sample preparation,20-25working days for mass production.

Q3. Do you have any MOQ limit for micro gear motor orders?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx, or TNT. It takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5. How to proceed with an order for micro gear Motors?

A: Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places a deposit for formal order.

Fourthly We arrange the production.

Q6. What are the terms of trade?

A: FOB, EXW

Q7: Do you offer a guarantee for the products?

A: Yes, we offer 1 years warranty on our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send a new air pump with new order for a small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
