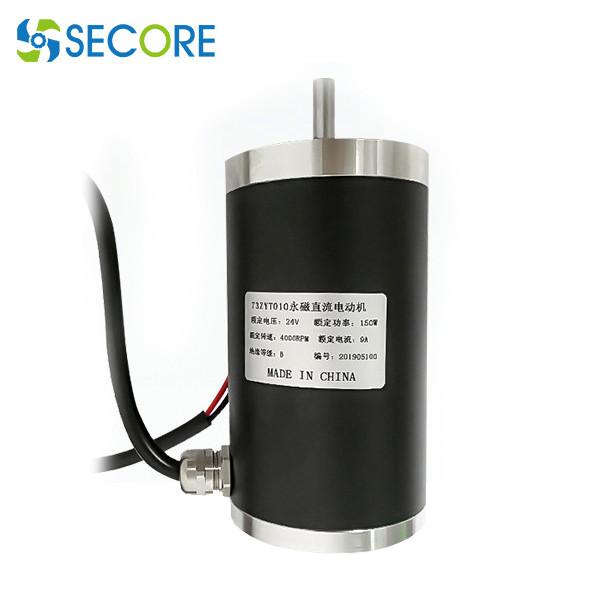

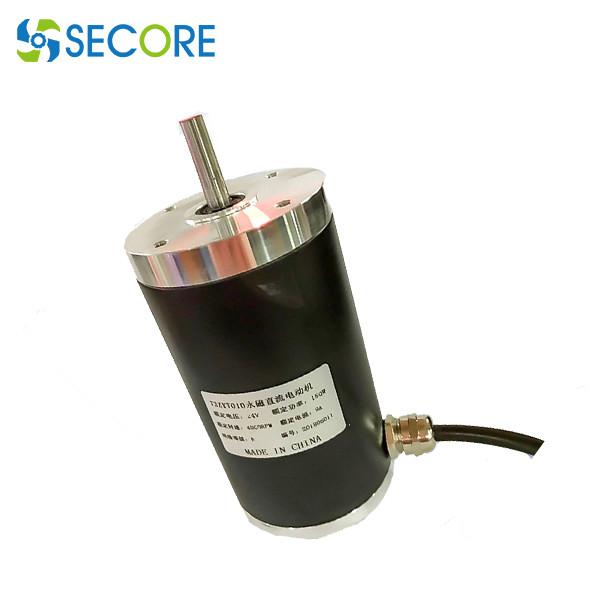

150W 0.4Nm Brush Motor Waterproof Dc Motor For Clean Robot
150W 0.4Nm Brush Motor Waterproof Dc Motor For Clean Robot
150W 0.4Nm Brush Motor Waterproof Dc Motor For Clean Robot
150W 0.4Nm Brush Motor Waterproof Dc Motor For Clean Robot
150W 0.4Nm Brush Motor Waterproof Dc Motor For Clean Robot
150W 0.4Nm Brush Motor Waterproof Dc Motor For Clean Robot
150W 0.4Nm Brush Motor Waterproof Dc Motor For Clean Robot
150W 0.4Nm Brush Motor Waterproof Dc Motor For Clean Robot
Specifications
Brand Name :
SECORE
Model Number :
73ZYT-SC73130
Certification :
RoHS
Place of Origin :
Shenzhen, China
MOQ :
15
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
9-12 working days
Packaging Details :
50pcs per carton or as request
Motor type :
Waterproof Brushed Motor
Nominal voltage :
24V
Free load speed :
5070rpm ±10%
Rated speed :
4050rpm ±10%
Rated torque :
0.4Nm /4kg.cm
Output power :
150W
dimensions :
OD 73mm * 130mm
Applied cases :
Aquaculture equipment, farming device motor
Description

150W 0.4Nm Brush Motor Waterproof Dc Motor IP45 For Clean Robot

Waterproof dc motor is highly commended for its fully-enclosure and waterproofed feature, it's widely used in application water involved.

Main specification for reference:

1: Nominal voltage:24VDC

2. Rated speed: 4000士10%RPM

3. Rated power:150w

4. Rated torque: 0.4Nm

5. Rotation direction: clockwise ( viewing from shaft extension )

6. Protection rating: IP45

Motor Model 73ZYT-73130
Nominal voltage 24v or as per request
Free load speed ±10% 5070rpm
Rated Speed ±10% 4050RPM
Rated current 2A
Rated Power 150W
Rated Torque 0.4N.m/4.08kg.cm

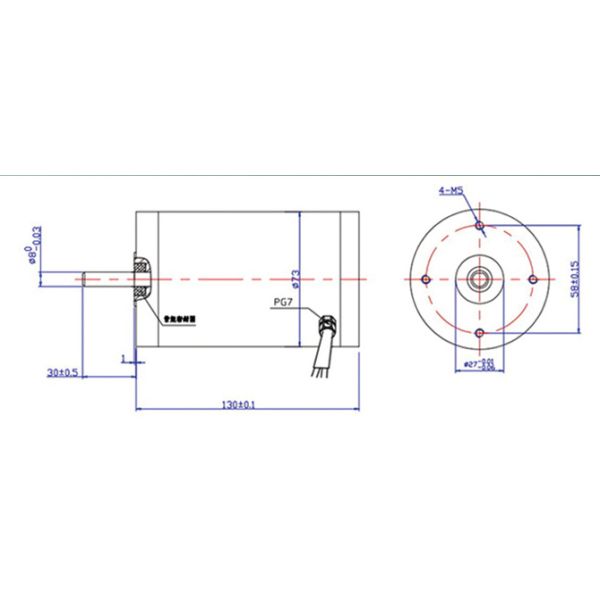

Motor dimensions

150W 0.4Nm Brush Motor Waterproof Dc Motor For Clean Robot

150W 0.4Nm Brush Motor Waterproof Dc Motor For Clean Robot

Application cases

It will be a good choice for a clean robot, which is a robot designed to clean various surfaces such as floors, carpets, and windows. The motor needs to be waterproof in order to prevent damage from exposure to water and other cleaning fluids.

It's widely applied in many industries such as home appliances, medical device, auto parts etc.
