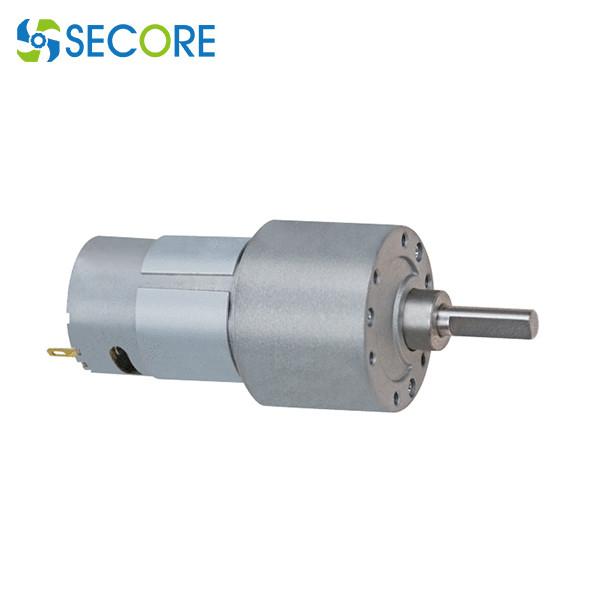

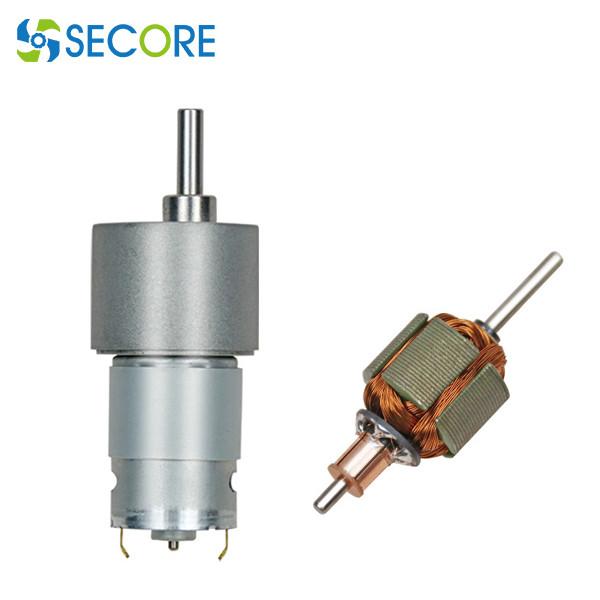

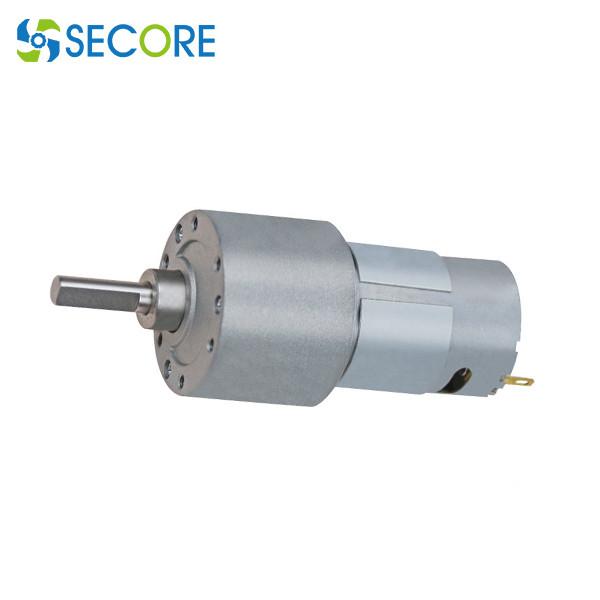

Long Life Smart Home Brushed DC Geared Motor 20W Spur Gear Motor
Long Life Smart Home Brushed DC Geared Motor 20W Spur Gear Motor
Long Life Smart Home Brushed DC Geared Motor 20W Spur Gear Motor
Long Life Smart Home Brushed DC Geared Motor 20W Spur Gear Motor
Long Life Smart Home Brushed DC Geared Motor 20W Spur Gear Motor
Long Life Smart Home Brushed DC Geared Motor 20W Spur Gear Motor
Long Life Smart Home Brushed DC Geared Motor 20W Spur Gear Motor
Long Life Smart Home Brushed DC Geared Motor 20W Spur Gear Motor
Long Life Smart Home Brushed DC Geared Motor 20W Spur Gear Motor
Long Life Smart Home Brushed DC Geared Motor 20W Spur Gear Motor
Specifications
Brand Name :
SECORE
Model Number :
DC2737-37GB
Certification :
CE ROHS
Place of Origin :
Shenzhen
MOQ :
200
Payment Terms :
D/P, T/T,, Western Union, L/C
Delivery Time :
10-12 working days
Packaging Details :
100pcs per carton or as request
Rated Voltage :
12V or as request
Rated Speed :
38.4rpm
Rated Torque :
14.8kg.cm, 1.48N.m
Power :
20W
gearbox size :
37mm*24mm
motor size :
OD27mm*L37mm
Motor application :
Toy car, electric paper output machine
product name :
straight tooth gear motor, toy car gear motor
Description

Long-Life Smart Home Dc Gear Motor 37mm Brush Spur Gear Motor For Electric Paper Output Machine

Secore brush motor gear motor DC2737-37GB main features:

Place of Origin: Guangdong, China
Brand Name: Secore
Model Number: DC2737-37GB
Voltage: 6V, 12V, 24V
Speed / Torque: as below table, or customized
Application: cooking machine, cook machine, cooker machine, robot, paper output machine, toy car

MODEL VOLTAGE Motor free load motor with gearbox (no load )
Current A Speed RPM torque kg.cm Motor size gear ratio gearbox length current speed
DC2737-37GB 12 0.14 8000 0.152 38 10 16.8 0.42 800
DC2737-37GB 12 0.14 8000 0.152 38 30 20.2 0.15 266.8
DC2737-37GB 12 0.14 8000 0.152 38 50 20.2 0.42 160.1
DC2737-37GB 12 0.14 8000 0.152 38 90 20.2 0.42 89.1
DC2737-37GB 12 0.14 8000 0.152 38 150 20.2 0.42 53.4
DC2737-37GB 12 0.14 8000 0.152 38 167 20.2 0.42 47.8
DC2737-37GB 12 0.14 8000 0.152 38 270 20.2 0.42 29.7
DC2737-37GB 12 0.14 8000 0.152 38 450 20.2 0.42 17.9
DC2737-37GB 12 0.14 8000 0.152 38 810 20.2 0.42 9.8
DC2737-37GB 12 0.14 8000 0.152 38 1350 20.2 0.42 5.9
DC2737-37GB 12 0.14 8000 0.152 38 2430 20.2 0.42 3.4

MODEL VOLTAGE max efficiency Noise At stall
current A speed rpm torque kg.cm output power W dB current A torque kg.cm
DC2737-37GB 12 1.68 560 0.9 20.16 dis: 10cm 8.4 2.6
DC2737-37GB 12 0.6 213.2 2.6 7.2 65dB 3 7.9
DC2737-37GB 12 1.68 128 4.4 20.16 65dB 8.4 13.2
DC2737-37GB 12 1.68 71.2 7.9 20.16 65dB 8.4 23.8
DC2737-37GB 12 1.68 42.8 13.3 20.16 65dB 8.4 39.8
DC2737-37GB 12 1.68 38.4 14.8 20.16 65dB 8.4 44.2
DC2737-37GB 12 1.68 23.8 19.8 20.16 65dB 8.4 59.2
DC2737-37GB 12 1.68 14.2 30.7 20.16 65dB 8.4 92.3
DC2737-37GB 12 1.68 7.9 51.8 20.16 65dB 8.4 155.2
DC2737-37GB 12 1.68 4.8 61.6 20.16 65dB 8.4 153.8
DC2737-37GB 12 1.68 2.6 77.7 20.16 65dB 8.4 16.8

Outline dimensions:

Long Life Smart Home Brushed DC Geared Motor 20W Spur Gear Motor

Specification curve:

Long Life Smart Home Brushed DC Geared Motor 20W Spur Gear Motor

Long Life Smart Home Brushed DC Geared Motor 20W Spur Gear Motor

Application cases:

Long Life Smart Home Brushed DC Geared Motor 20W Spur Gear Motor
