Specifications
Brand Name :
SECORE
Model Number :
DC1518-15GB
Certification :
CE ROHS
Place of Origin :
China
MOQ :
500
Payment Terms :
D/P, T/T,, Western Union, L/C
Delivery Time :
10-12 working days
Packaging Details :
100pcs per carton or as request
Voltage :
5V or per request
Motor Size :
Φ15.5*L18.6mm
Rated Speed :
44-253rpm or customize
Rated torque :
119g-600g or per request
Gearbox size :
15.5*11mm
Product name :
mini gear motor, 5v micro geared motor
Material :
Metal gearbox
Application :
printing pen motor, smart home
Description

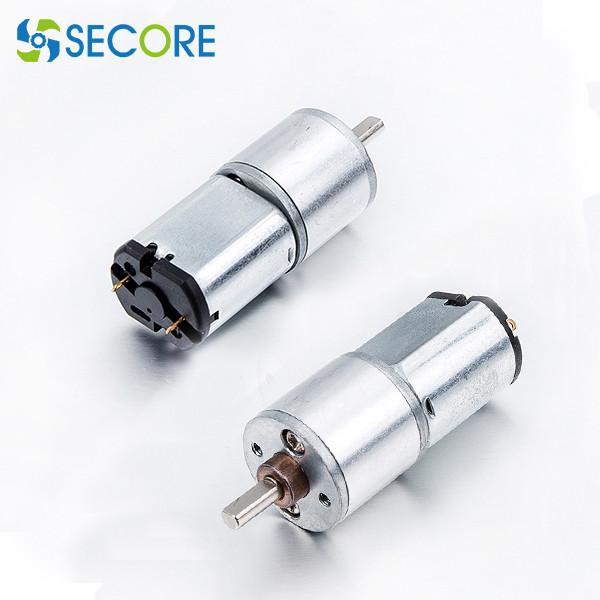

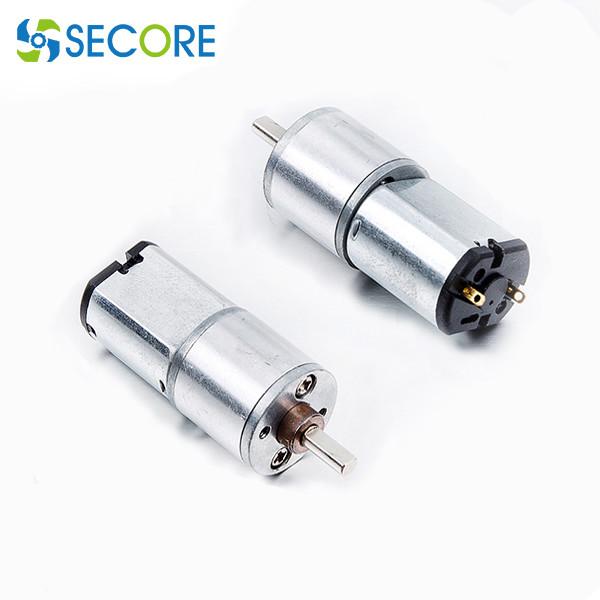

16mm 15mm Fingerprint Lock Gear Motor Mini 3D Printing Pen Dc Gear Brush Motor

Introduction:

Gear Motor Size: Φ15.5*L29.6mm;

Voltage: DC 3V, 5V, 6V, 9V, or as per request

Speed: Customizable

Application: Printing pen gear motor, Secore dc gear motor

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL Gear length (L1) Matching motor Motor length (L2)
SPEED
RPM		 CURRENT
mA		 SPEED
RPM		 TORQUE
mN.m		 CURRENT
A		 POWER
W		 TORQUE
mN.m		 CURRENT
A		 mm Model mm
DC1518-15GB 5 321 70 253 11.6 0.2 0.31 55.8 0.8 11 DC-1518 18.6
DC1518-15GB 5 189 70 149 19.8 0.2 0.31 94.8 0.8 11 DC-1518 18.6
DC1518-15GB 5 117 70 92 28.9 0.2 0.28 138.9 0.8 11 DC-1518 18.6
DC1518-15GB 5 74 70 58 45.7 0.2 0.28 219.2 0.8 11 DC-1518 18.6
DC1518-15GB 5 63 70 50 53.6 0.2 0.28 256.7 0.8 11 DC-1518 18.6
DC1518-15GB 5 56 70 44 60.4 0.2 0.28 290.2 0.8 11 DC-1518 18.6

16mm 15mm Fingerprint Lock Micro Geared Motor 3D Printing Pen Brushed DC Geared Motor

16mm 15mm Fingerprint Lock Micro Geared Motor 3D Printing Pen Brushed DC Geared Motor

What is a DC gear motor?

A gear motor is an integrated combination of a motor and a gearbox. Adding a gear head to the motor reduces speed while increasing torque output. The most important parameters of a gear motor are speed (rpm), torque (kg.cm) and efficiency (%). In order to choose the most suitable gear motor for your application, you must first calculate the load, speed and torque requirements of your application. Secore motor offers a wide range of planetary, spur and worm gear motors to meet all application requirements. Most of our DC motors can be paired with one of our unique gearboxes, giving you an efficient gear motor solution.
