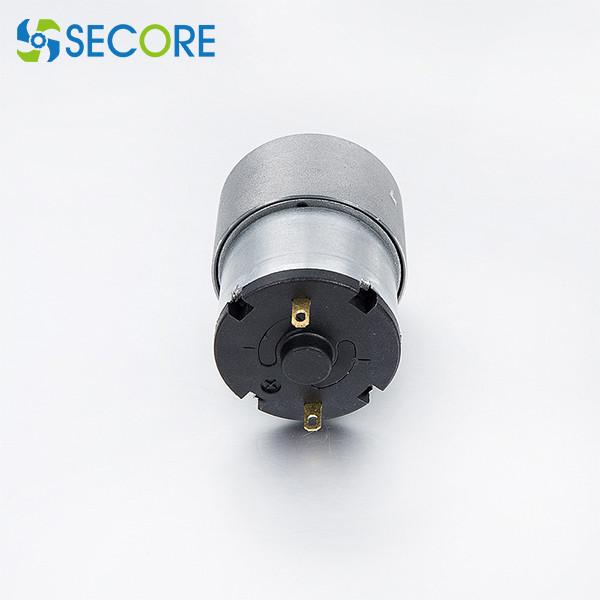

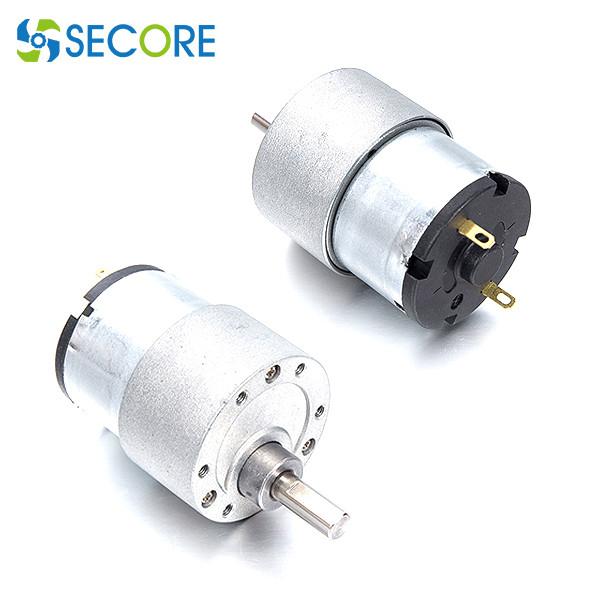

Cat Toilet Spur Gear Motor 37mm Micro Brushed DC Motor With Gearbox
Cat Toilet Spur Gear Motor 37mm Micro Brushed DC Motor With Gearbox
Cat Toilet Spur Gear Motor 37mm Micro Brushed DC Motor With Gearbox
Cat Toilet Spur Gear Motor 37mm Micro Brushed DC Motor With Gearbox
Cat Toilet Spur Gear Motor 37mm Micro Brushed DC Motor With Gearbox
Cat Toilet Spur Gear Motor 37mm Micro Brushed DC Motor With Gearbox
Cat Toilet Spur Gear Motor 37mm Micro Brushed DC Motor With Gearbox
Cat Toilet Spur Gear Motor 37mm Micro Brushed DC Motor With Gearbox
Cat Toilet Spur Gear Motor 37mm Micro Brushed DC Motor With Gearbox
Cat Toilet Spur Gear Motor 37mm Micro Brushed DC Motor With Gearbox
Specifications
Brand Name :
SECORE
Model Number :
DC3323-27GB
Certification :
CE ROHS
Place of Origin :
Shenzhen
MOQ :
200
Payment Terms :
D/P, T/T,, Western Union, L/C
Delivery Time :
10-12 working days
Packaging Details :
100pcs per carton or as request
Rated Voltage :
12V / 24V
Rated Speed :
10rpm, 200rpm or per request
motor dimension :
Φ33*L23mm
Rated torque :
0.12mN.m, 1.64mN.m
gearbox size :
Φ37*L21.5mm~L29mm
Power :
1W, 2.5W
Usage :
Cat toilet, cat litter box
product :
37mm gear motor, 520 geared motor
Description

Cat Toilet Gear Motor 37mm Micro Brush Gearbox Motor 520 For Automatic Cat Litter Box

Secore Motor DC3323-27GB Brushed DC gear motor main features:

Place of Origin:Guangdong, China
Brand Name: Secore
Model Number:DC3323-27GB
Input Voltage: 24V, 12V
Output Speed: 8RPM, 10RPM, 16RPM, 100RPM, 200RPM etc, customizable
Application: Cat toilet, cat litter box, electronic lock

Model # DC3323-27GB
Voltage 12V, 24V
Power 1W-2.5W
Speed 10 r/min, 100rpm or as per request
Size Φ37*L44mm or more length options
Application Cat toilet, cat litter box

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL Gear length (L) Matching motor Motor length (L1)
SPEED
RPM		 CURRENT
A		 SPEED
RPM		 TORQUE
mN.m		 CURRENT
A		 POWER
W		 TORQUE
mN.m		 CURRENT
A		 mm Model mm
DC3323-27GB 12 260 0.06 200 0.12 0.53 2.46 0.41 2.6 21.5 DC3323 22.6
DC3323-27GB 12 158 0.09 130 0.18 0.43 2.4 0.78 2.7 24 DC3323 22.6
DC3323-27GB 24 58.2 0.07 49.2 0.34 0.18 1.74 1.74 2.3 24 DC3323 22.6
DC3323-27GB 12 21 0.036 16.6 0.15 0.06 0.26 0.56 0.32 26.5 DC3323 22.6
DC3323-27GB 12 38 0.09 30 0.61 0.4 1.91 2.25 2.6 26.5 DC3323 22.6
DC3323-27GB 24 10 0.05 8.2 1.22 0.14 1.03 5.88 2.6 29 DC3323 22.6
DC3323-27GB 12 12.6 0.08 10 1.64 0.36 1.71 6.18 2.7 29 DC3323 22.6

Cat Toilet Spur Gear Motor 37mm Micro Brushed DC Motor With Gearbox

Cat Toilet Spur Gear Motor 37mm Micro Brushed DC Motor With Gearbox
