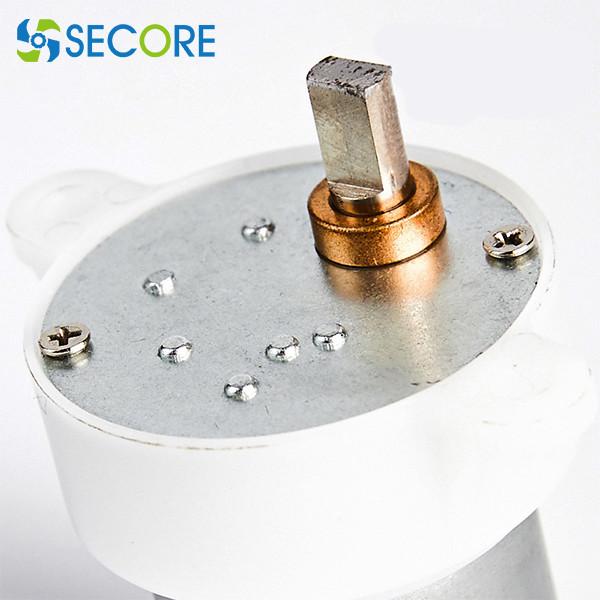

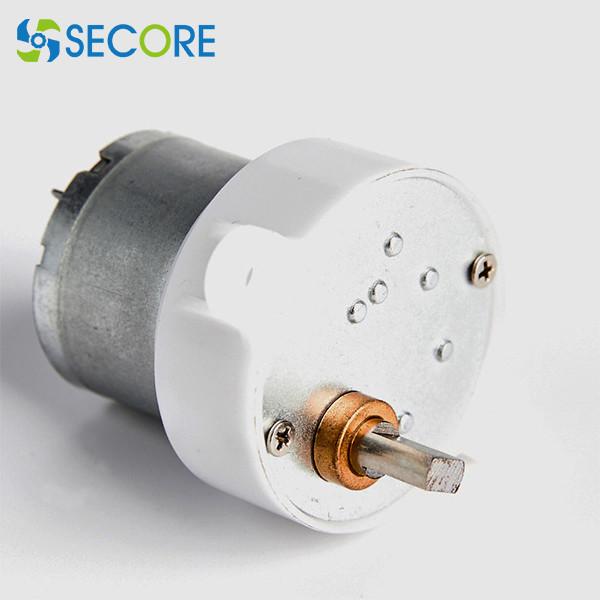

6V 12V 24V DC Gear Motor Rotating Light Stage Light Air Valve Spur Gearbox
6V 12V 24V DC Gear Motor Rotating Light Stage Light Air Valve Spur Gearbox
6V 12V 24V DC Gear Motor Rotating Light Stage Light Air Valve Spur Gearbox
6V 12V 24V DC Gear Motor Rotating Light Stage Light Air Valve Spur Gearbox
6V 12V 24V DC Gear Motor Rotating Light Stage Light Air Valve Spur Gearbox
6V 12V 24V DC Gear Motor Rotating Light Stage Light Air Valve Spur Gearbox
6V 12V 24V DC Gear Motor Rotating Light Stage Light Air Valve Spur Gearbox
6V 12V 24V DC Gear Motor Rotating Light Stage Light Air Valve Spur Gearbox
Specifications
Brand Name :
SECORE
Model Number :
DC1225-32GB
Certification :
CE ROHS
Place of Origin :
China
MOQ :
200
Payment Terms :
D/P, T/T,, Western Union, L/C
Delivery Time :
10-12 working days
Packaging Details :
100pcs per carton or as request
Rated Voltage :
12V DC or customize
No load speed :
28rpm, 16rpm
Speed with load :
23rpm, 12rpm
Rated torque :
35.3mN.m, 294mN.m
Motor size :
OD12.4mm*L24.4mm
Spur gear size :
OD38.5mm*L10.3mm
Application :
stage light, stage light motor, air valve, valve motor, robot motor
Product name :
stage light gear motor, spur geared motor for stage lights, valve gear motor
Description

Factory Direct Supply Stage Light Motor 6V 12V 24V Air Valve DC Gear Motor With Spur gearbox

DC1225-32GB Secore Brush dc gear Motor main features:

Size: Φ38.5*L22.4mm;

Voltage: DC12V, 6V, 24V, 36V or customized

Speed: 5rpm, 30rpm, or as request

Application: Stage light, Stage rotating led, rotating light, robot, air valve

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL Gear length (L) Matching motor Motor length (L1)
SPEED
RPM		 CURRENT
mA		 SPEED
RPM		 TORQUE
mN.m		 CURRENT
A		 Output
W		 TORQUE
mN.m		 CURRENT
A		 mm Model mm
DC1225-32GB 12 28 22 23 35.3 0.04 0.01 186.4 0.12 12.3 DC1225 13.2
DC1225-32GB 12 16 40 12 294 0.13 0.01 980.5 0.4 12.3 DC1225 13.2


6V 12V 24V DC Gear Motor Rotating Light Stage Light Air Valve Spur Gearbox

6V 12V 24V DC Gear Motor Rotating Light Stage Light Air Valve Spur Gearbox

Typical Application:

Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera, PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.
