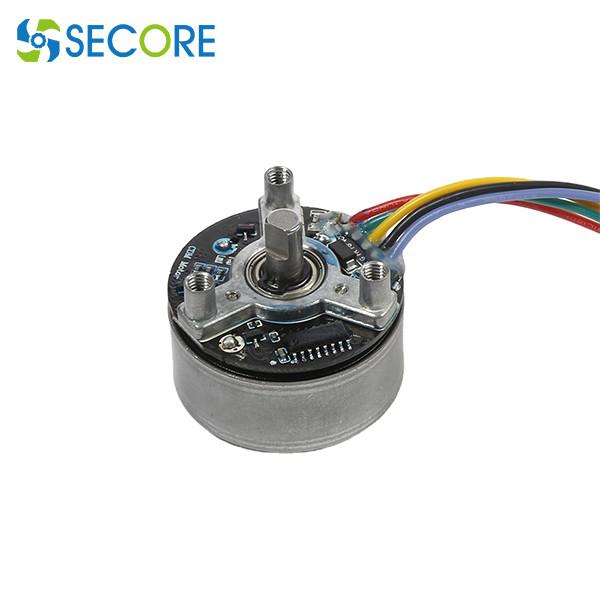

3500rpm Personal Care Outer Rotor BLDC Motor Brushless 12V With Controller
3500rpm Personal Care Outer Rotor BLDC Motor Brushless 12V With Controller
3500rpm Personal Care Outer Rotor BLDC Motor Brushless 12V With Controller
3500rpm Personal Care Outer Rotor BLDC Motor Brushless 12V With Controller
3500rpm Personal Care Outer Rotor BLDC Motor Brushless 12V With Controller
3500rpm Personal Care Outer Rotor BLDC Motor Brushless 12V With Controller
Specifications
Brand Name :
SECORE
Model Number :
BLS3825O
Certification :
CE ROHS
Place of Origin :
Guangdong, China
MOQ :
500
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-15 working days
Packaging Details :
500pcs per carton or as request
Speed :
2000-6000rpm or customized
Rated voltage :
12-24V
Rated Torque :
400g.cm or as request
Continuous current :
1.4A
Dimension :
∮38*25（mm）
Construction :
pernanent magnet
product name :
brushless dc motor, brushless motor with controller, fan motor
Typical application :
foot massager, hair dryer, electric shaver, medical device etc
Description

3500rpm Small Dc Motor Brushless 12V With Controller For Personal Care

Main features:


Model # Rated voltage No load Power at no load max power stall Protection Current Eccentricity design
(V) (rpm) (W) (W) (kg.cm) (A) (mm)
BL3825O-V1 7.4 3600~3900 1~2 15 2.0 5~6 3.0
BL3825O-V2 12 3600~3900 2~3 18 3.0 5~6 3.0
BL3825O-V3 16.8 3600~3900 3~4 20 3.3 5~6 3~3.5
BL3825O-V4 24 3600~3900 4~5 25 3.8 5~6 3~3.5

3500rpm Personal Care Outer Rotor BLDC Motor Brushless 12V With Controller

3500rpm Personal Care Outer Rotor BLDC Motor Brushless 12V With Controller

3500rpm Personal Care Outer Rotor BLDC Motor Brushless 12V With Controller

Customization Range:

1.Additional voltage types

2.Configurable shaft length and second shaft end

3.Modified shaft dimensions and pinion configurations such as flats, gears, pulleys and eccenters

4.Extended temperature range

5.Vacuum compatibility (e.g., 9-5 Pa)

6.Customization for high speed and or high load applications

7.Customization for motors with increased electrical or mechanical tolerance requirements

If there is no suitable specifications, it can be customized according to actual needs.

About us

Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.

3500rpm Personal Care Outer Rotor BLDC Motor Brushless 12V With Controller

3500rpm Personal Care Outer Rotor BLDC Motor Brushless 12V With Controller

LAB Testing devices:

Motor performance testing

Motor reliability test and life test
Motor driver board component test
Motor noise test
Corrosion resistance test
Insulation voltage and resistance test

Parts of Typical Application:

-Office apparatus and medical devices

• Printer, Copier, Projector, Shredder, fax ( paper cutter), computer peripheral, lifting socket etc.

• Sphygmomanometer, breath machine, cleaning pump, medical ventilator, medical bed, dental instrument, surgical robot etc

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors

• Fascia gun, massage chair, treadmill

-Household appliances and personal care

• Air purifier, smart toilet, hair dryer, hair curler, tooth brush, vibration, rubdown machine, foot grinder, facial beauty equipment, eyebrow tweezer, electric threading knife

• Blender, sweeper, window cleaner, small household appliances etc.
