16.8V Brushless Dc Permanent Magnet Motor , 20W High Torque Brushless Dc Motor
16.8V Brushless Dc Permanent Magnet Motor , 20W High Torque Brushless Dc Motor
16.8V Brushless Dc Permanent Magnet Motor , 20W High Torque Brushless Dc Motor
16.8V Brushless Dc Permanent Magnet Motor , 20W High Torque Brushless Dc Motor
Specifications
Brand Name :
SECORE
Model Number :
BLS-4020O
Certification :
CE ROHS
Place of Origin :
China
MOQ :
500
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
500pcs per carton or as request
Speed :
4000rpm or customized
Output power :
20W
Rated voltage :
24V or 12V
Commutation :
outerl rotor brushless
product name :
dc brushless motor 20w, dc brushless motor with controller
Typical application :
Hair dryer, fan, massager, personal care
Description

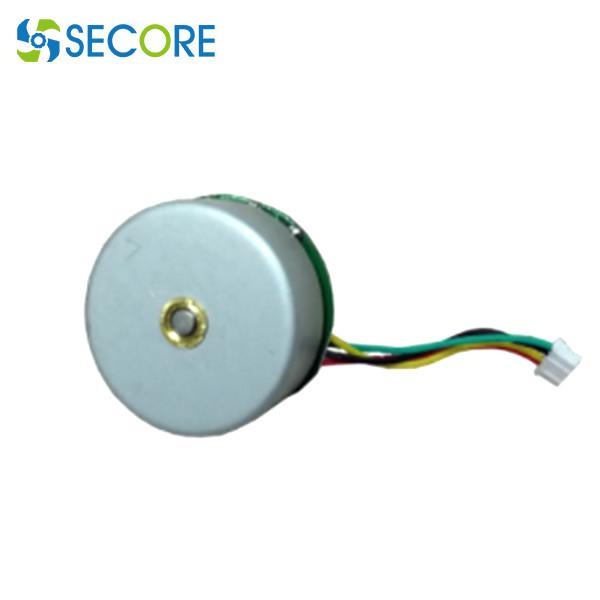

Non-Standard Outer Rotor BLDC Motor Brushless For 16.8V Massager Fascia Gun

Specification of this Brushless DC out runner Motors :

•Model #: BLS4020O
•Voltage: 16.8V
•Rated Torque: 46 m.Nm
•Rated Power: 20~50W
•Speed: 3000~6000 RPM

•Low Noise, long life, high durability

Dimension Φ 40*20mm
Shaft Diameter Φ5mm
Rated Voltage 12V or 24v
Max input power 50W
Noise 80db(100cm)
Controller PWM
Life 10000Hrs

Dimension:

16.8V Brushless Dc Permanent Magnet Motor , 20W High Torque Brushless Dc Motor

Technical data:

16.8V Brushless Dc Permanent Magnet Motor , 20W High Torque Brushless Dc Motor

Brushless motor advantages:

Brushless motors have several advantages over brushed DC motors, including:

1. Higher torque to weight ratio

2. More torque per watt (increased efficiency)

3. Increased reliability, reduced noise, longer lifetime (no brush and commutator erosion), and elimination of ionizing sparks from the commutator.

4. With no windings on the rotor, they are not subjected to centrifugal forces, so very high-speed designs are possible.

5. Because the windings are composed of shells, they can be cooled by conduction without airflow cooling inside the motor, which in turn means that the motor’s interior can be completely enclosed and prevent dust or other foreign matter from entering.

Testing devices in LAB:

16.8V Brushless Dc Permanent Magnet Motor , 20W High Torque Brushless Dc Motor

16.8V Brushless Dc Permanent Magnet Motor , 20W High Torque Brushless Dc Motor

FAQ

Q1. What kind of motors you can provide?

A: Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 500kg.cm

Q2. Can you send me a price list?

A: For all of our motors, they are customized based on different requirement as per torque, lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you may, please share your expected performance and specific requirement for us better to provide a solution and closest offer.

Q3. What's the lead time for regular order?
A: For mass orders, the standard lead time is 25-40 days and LT can be shorter or longer based on different model, period and quantity.

Q4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
