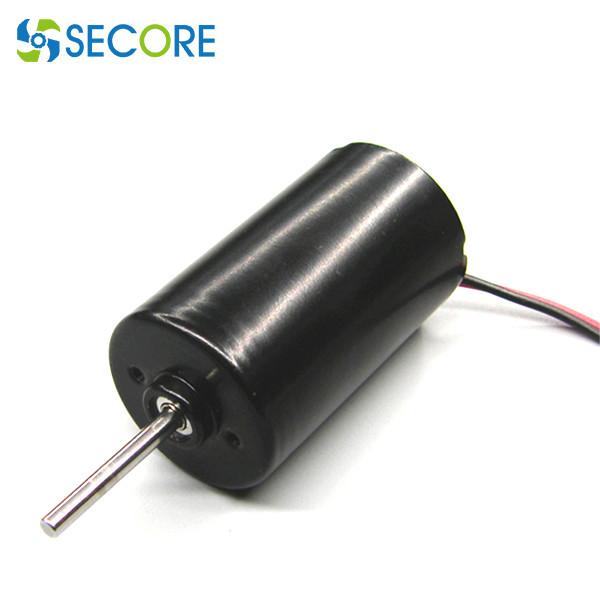

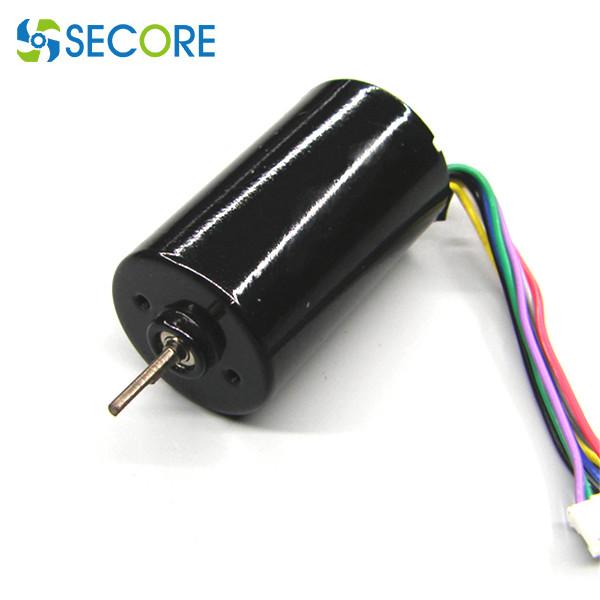

Precise Control DC 12V Brushless Motor With Gearbox 10000RPM Electronic Commutated
Precise Control DC 12V Brushless Motor With Gearbox 10000RPM Electronic Commutated
Precise Control DC 12V Brushless Motor With Gearbox 10000RPM Electronic Commutated
Precise Control DC 12V Brushless Motor With Gearbox 10000RPM Electronic Commutated
Precise Control DC 12V Brushless Motor With Gearbox 10000RPM Electronic Commutated
Precise Control DC 12V Brushless Motor With Gearbox 10000RPM Electronic Commutated
Specifications
Brand Name :
SECORE
Model Number :
BLS-2847I
Certification :
CE ROHS
Place of Origin :
Guangdong, China
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
100pcs per carton or as request
Speed :
10000RPM or customized
Rated Torque :
173g.cm or as request
Continuous current :
1.11A or as request
dimension :
Φ28*47（mm）
Construction :
pernanent magnet
Weight :
115g
Keyword :
brushless motor with encoder, motor brushless with gearbox
Typical application :
Home Ventilation, Air Purifier, Range Hood
Description

Precise Control Dc12v Brushless Motor, Electronic Commutated Motor For Precision Instrument

Specifications :

1. Dimension: Φ28* 47mm

2. Shaft Diameter: 2.4mm

3. Rated Voltage:24V

4. Endplay: 0.2mm

5. Lifetime: 20000H min

6. Phase: 3

7. Rotation: CW/CCW controllable

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE		 RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A g.cm W g.cm A
BLS2847I-V1 6V~12V 12V 7173 0.18 6092 0.908 122.4 7.62 814.3 5.052
BLS2847I-V2 8V~16V 18V 10835 0.2 9104 1.803 147.3 13.83 924.1 5.747
BLS2847I-V3 8V~26V 24V 12372 0.23 10397 1.112 173.5 18.3 1085.8 5.892

Precise Control DC 12V Brushless Motor With Gearbox 10000RPM Electronic Commutated

Production capacity

  • 25 lean production lines (and continue to expand and upgrade automated production lines);
  • Monthly production capacity of 3 million units and continues to grow;
  • The versatility of the motor production line and tooling equipment;
  • Self-developed general fixtures and process equipment;
  • Lean production;
  • Billboard material management;
  • Error-proofing measures for assembling machine molds (Poke Yoke);
  • The unitized manufacturing concept of lean assembly line;
  • Strict control of process manual and QC control plan

Precise Control DC 12V Brushless Motor With Gearbox 10000RPM Electronic Commutated

Precise Control DC 12V Brushless Motor With Gearbox 10000RPM Electronic Commutated

WHY US?

“
Innovative R&D Engineering

30 engineers for Motor design & innovative solution with 50+ motor patents

Intellegent High Volume Manufacturing

25 lean production lines( currently 3 automation production lines )
monthly capacity of 3 million units

Quality & Reliability Policy

Considering the rationality and convenience of the production process from the design stage

Adopting the international advanced quality management system, strict management
of IQC, production and QA

Effective Communication and Collaboration

Professional sale engineers provide one-stop customized services


Excellent Cost Control System

Motor application database provides reference data to save development cost.

Our perfect and stable supply chain system, with obvious location advantages,
saving logistics costs.

Automated production and very low defect rates have reduced costs.
”

Brushless DC ELectric Motor-Typical Application

-Office apparatus and medical devices

• Printer, Copier, Projector, Shredder, fax ( paper cutter ), computer peripheral, lifting socket etc.

• breath machine, medical cleaning pump, medical ventilator, medical bed, dental instrument, surgical robot etc

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors,

• Fascia gun, massage chair, treadmill

-Household appliances and personal care

• Air purifier, smart toilet, hair dryer, hair curler, tooth brush, vibration, rubdown machine, foot grinder, facial beauty equipment, eyebrow tweezer, electric threading knife

• Blender, sweeper, window cleaner, small household appliances
