E-Bike Conversion Kit 1.2A Inner Rotor BLDC Motor 12V High Torque With Speed Controller
E-Bike Conversion Kit 1.2A Inner Rotor BLDC Motor 12V High Torque With Speed Controller
E-Bike Conversion Kit 1.2A Inner Rotor BLDC Motor 12V High Torque With Speed Controller
E-Bike Conversion Kit 1.2A Inner Rotor BLDC Motor 12V High Torque With Speed Controller
E-Bike Conversion Kit 1.2A Inner Rotor BLDC Motor 12V High Torque With Speed Controller
E-Bike Conversion Kit 1.2A Inner Rotor BLDC Motor 12V High Torque With Speed Controller
E-Bike Conversion Kit 1.2A Inner Rotor BLDC Motor 12V High Torque With Speed Controller
E-Bike Conversion Kit 1.2A Inner Rotor BLDC Motor 12V High Torque With Speed Controller
Specifications
Brand Name :
SECORE
Model Number :
BLS-4275I
Certification :
CE ROHS
Place of Origin :
China
MOQ :
500
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
500pcs per carton or as request
Speed :
6500RPM or customized
Rated Torque :
700G.cm or as request
Continuous current :
1.2A or as request
Dimension :
Φ42*75（mm）
Keyword :
12 volt brushless dc motor, E-bike brushless dc motor, E-tricycle motor
Typical application :
E-bike, E-tricycle, Carbit lock, door lock, robot Arm
Description

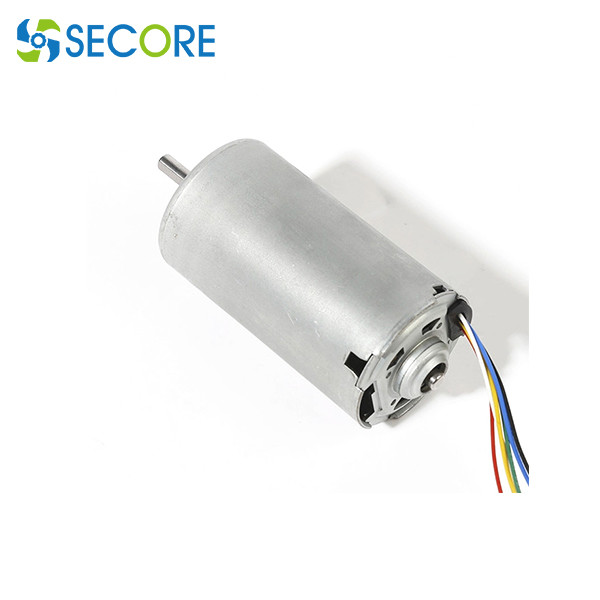

High Torque Brushless Dc Motor With Speed Controller For E-Bike Conversion Kit

Specifications :

1. Voltage: DC 12V
2. No load speed: 6500±10%rpm
3. No load current: 1.2A
4. Diameter 42mm, length 75mm, shaft dia 5.0mm
5. Material: plastic gear and metal DC motor
6. Weight: 341g Approx
7. Application:Robot, Bike lock, Home Appliance, Door Lock etc

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE		 RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A g.cm W g.cm A
BLS4275I-V1 8V~16V 12V 3624 0.26 3044 1.325 477.4 13.97 2817.2 7.015
BLS4275I-V2 8V~26V 18V 5423 0.34 4625 1.724 579.6 27.48 3905.3 9.866
BLS4275I-V3 8V~26V 24V 4352 0.19 3705 1.087 579.7 22.09 3902.5 6.234


E-Bike Conversion Kit 1.2A Inner Rotor BLDC Motor 12V High Torque With Speed Controller

What are main parameters for selecting an electric motor?

  1. Select the correct voltage, motor performances;
  2. Select the peak current of the brushless drive;
  3. Define the working environment (such as temperature, high humidity, etc.);
  4. The requirement of power supply insulation;
  5. The outer diameter and height of the motor, the diameter of the output shaft, whether it needs to be equipped with a reducer and other related parts.

E-Bike Conversion Kit 1.2A Inner Rotor BLDC Motor 12V High Torque With Speed Controller

Brushless DC ELectric Motor-Typical Application

Provide Solutions For Office Equipments, Air Purification Systems, Water Treatment Systems, Medical Equipments, Logistic Transmission Systems, Mechanical Equipments, Solar Tracking Equipments.
