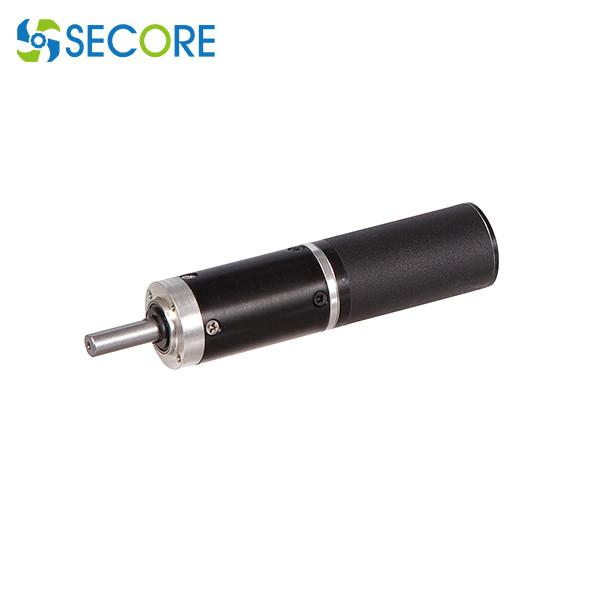

Mini Planetary 3 Phase Gear Motor , Electric Valve BLDC Gear Motor
Mini Planetary 3 Phase Gear Motor , Electric Valve BLDC Gear Motor
Specifications
Brand Name :
SECORE
Model Number :
BLD2245
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
15-18 working days
Packaging Details :
100pcs per carton or as request
rated Torque :
1N.m continuous running
Motor type :
BLDC, brushless gear reduce motor
Speed :
29-999rpm
Rated Voltage :
4-400V DC
gearbox diameter :
28
gear type :
planetary
Description

High Quality Mini 3 Phase Brushless DC Planetary Gear Motor For Electric Valve

12V, 24V Mini BL DC Planetary Gear Motor
Model: BLD2245
Voltage: 6 ~ 400V DC
Rated torque up to 1N.m for continuous running
Optional components: encoder; brake; connector
Customized shaft dimensions and technical specifications are available upon requested.
Dimension:
Mini Planetary 3 Phase Gear Motor , Electric Valve BLDC Gear Motor
Brushless motor technical data:
Model Number of Poles Number of phase Rated voltage VDC No-load speed r/min Rated speed r/min Rated torque mN.m Output power W Peak Torque Peak current A Line to line
resistance ohms		 Line to line
inductance
mH
BLD2245-2470 8 3 24 7000 4600 8 3.8 21 1.1 23 6.2
Brushless planetary gear motor technical data:
Reduction ratio 3.7 5.2 14 19 27 51 71 100 139 189 264 369
Number of gear trains 1 1 2 2 2 3 3 3 3 4 4 4
Length mm 24.4 24.4 33 33 31 41.5 41.5 41.5 41.5 49.8 49.8 49.8
No-load speed rpm 1887 1351 500 368 259 137 99 70 50 37 27 19
Rated speed rpm 1240 888 329 242 170 90 65 46 33 24 17 12
Rated torque N.m 0.027 0.037 0.091 0.12 0.17 0.3 0.41 0.58 0.8 1 1 1
Max permissible load in a short time N.m 0.3 0.3 1.2 1.2 1.2 2.5 2.5 2.5 2.5 3 3 3
More motors:
Mini Planetary 3 Phase Gear Motor , Electric Valve BLDC Gear Motor

Typical Application:

Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc.
Household electrical appliances: lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc.,
The automotive industry: truck tarp systems, pumps, electric chair, jack, etc. Recreational equipment: swimming pool cleaners, pool cover systems, golf trolley, amusement machines and other places of entertainment, etc.
Office automation: automatic doors, elevator doors, roller shutter, curtains, punch machines, financial instruments, etc.
Medical and health-care equipment: various of health care equipment, medical equipment, etc.
