24V Electric Boat Brushless Planetary Gearbox Motor 500rpm Diameter 28mm
24V Electric Boat Brushless Planetary Gearbox Motor 500rpm Diameter 28mm
Specifications
Brand Name :
SECORE
Model Number :
BLD2838
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
15-18 working days
Packaging Details :
100pcs per carton or as request
rated Torque :
3N.m continuous running
Motor type :
BLDC, brushless planetary gearbox motor
Speed :
500rpm or as request
Rated Voltage :
24Volt
gearbox diameter :
28
gear type :
planetary
Usage :
Electric boat, bladeless fan, E-bike, juicer
commutation :
brushless
Description

28mm High Torque 24V Brushless DC Planetary Gear Motor 500rpm For Electric Boat

12V, 24V Mini BLDC Planetary Gear Motor
Model: BLD2838
Voltage: 24V
Rated torque up to 3N.m for continuous running
Optional components: magnetic/optical encoder; power-on/power-off brake; cable connector; controller Customized shaft & flange dimensions and technical specifications are available upon requested.

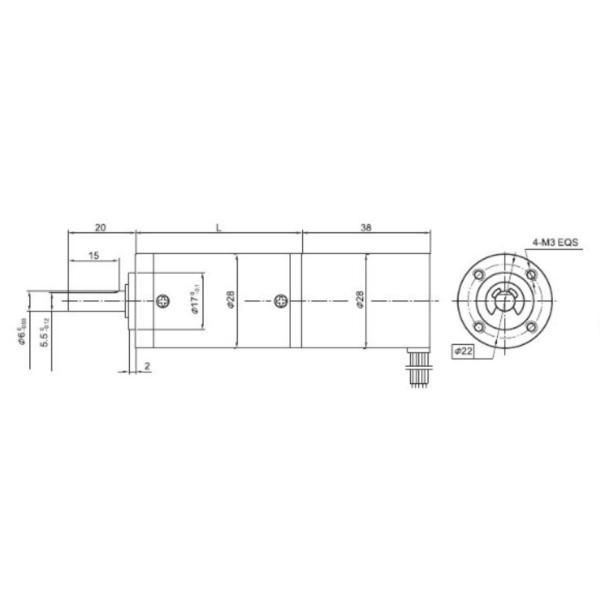

Dimension:
24V Electric Boat Brushless Planetary Gearbox Motor 500rpm Diameter 28mm
Brushless motor technical data:
Model Number of Poles Number of phase Rated voltage No-load speed Rated speed Rated torque Output power Peak Torque Peak current Line to line
resistance		 Line to line
inductance
　 # # V DC r/min r/min mN.m W mN.m A ohms mH
BLD2838-2430 4 3 24 3000 2000 5 1 15 0.45 93.3 28
BLD2838-2440 4 3 24 4000 2700 7 1.9 21 0.6 55 18.3
Brushless planetary gear motor technical data ( BLD2838-2430 ):
Reduction ratio 3.7 5.2 14 19 27 51 71 100 139 189 264 369 516 720
Number of gear trains 1 1 2 2 2 3 3 3 3 4 4 4 4 4
Length mm 31 31 40.1 40.1 40.1 49 49 49 49 57.9 57.9 57.9 57.9 57.9
No-load speed rpm 809 576 214 158 111 59 42 30 22 16 11 8.1 5.8 4.2
Rated speed rpm 539 386 143 105 74 39 28 20 14 11 7.6 5.4 3.9 2.8
Rated torque N.m 0.017 0.023 0.057 0.077 0.11 0.19 0.26 0.37 0.51 0.61 0.86 1.2 1.7 2
Max permissible load in a short time N.m 1 1 3.5 3.5 3.5 7.5 7.5 7.5 7.5 9 9 9 9 9
Brushless planetary gear motor technical data ( BLD2838-2440 ):
Reduction ratio 3.7 5.2 14 19 27 51 71 100 139 189 264 369 516 720
Number of gear trains 1 1 2 2 2 3 3 3 3 4 4 4 4 4
Length mm 31 31 40.1 40.1 40.1 49 49 49 49 57.9 57.9 57.9 57.9 57.9
No-load speed rpm 1078 772 286 211 148 78 56 40 29 21 15 11 7.8 5.6
Rated speed rpm 728 521 193 142 100 53 38 27 19 14 10 7.3 5.2 3.8
Rated torque N.m 0.023 0.033 0.079 0.11 0.15 0.26 0.36 0.51 0.71 0.86 1.2 1.7 2.3 3
Max permissible load in a short time N.m 1 1 3.5 3.5 3.5 7.5 7.5 7.5 7.5 9 9 9 9 9
More motors:
24V Electric Boat Brushless Planetary Gearbox Motor 500rpm Diameter 28mm

Typical Application:

Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc.
Household electrical appliances: lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc.,
The automotive industry: truck tarp systems, pumps, electric chair, jack, etc. Recreational equipment: swimming pool cleaners, pool cover systems, golf trolley, amusement machines and other places of entertainment, etc.
Office automation: automatic doors, elevator doors, roller shutter, curtains, punch machines, financial instruments, etc.
Medical and health-care equipment: various of health care equipment, medical equipment, etc.
