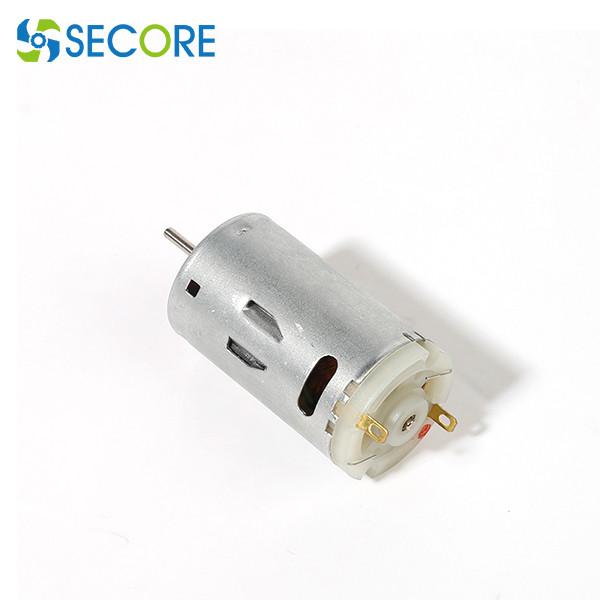

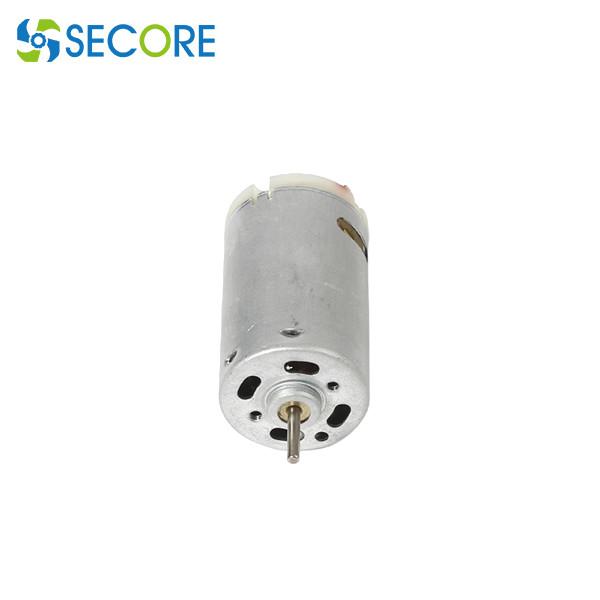

6V 24V 20000rpm Brushed Permanent Magnet DC Motor For Office Automation
6V 24V 20000rpm Brushed Permanent Magnet DC Motor For Office Automation
6V 24V 20000rpm Brushed Permanent Magnet DC Motor For Office Automation
6V 24V 20000rpm Brushed Permanent Magnet DC Motor For Office Automation
6V 24V 20000rpm Brushed Permanent Magnet DC Motor For Office Automation
6V 24V 20000rpm Brushed Permanent Magnet DC Motor For Office Automation
Specifications
Brand Name :
SECORE
Model Number :
RS380
Certification :
CE ROHS
Place of Origin :
China,Guangdong
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
15-18 working days
Packaging Details :
500pcs per carton or as request
Speed RPM :
20000 or customized
Rated voltage :
6V 24V
Rated Torque :
110 g.cm or as request
Type :
low volts DC motor, brushed DC motor, permanent magnet dc motor
Typical application :
home appliances,office automation, power tools
Continuous current :
0.5-3.3A
Construction :
pernanent magnet
Commutation :
brushed
output :
2-40W approx
Weight :
75g approx
Description

low volts mini 6V 24V 20000rpm dc brushed motor for office automation

Specification:

  • Rated voltage: DC 24V
  • The direction of rotation: CW/CCW
  • No-load speed: 21500 rpm
  • No-load current: 0.24 A

MODEL SPEC VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
A B Operating
range		 RATED SPEED CURRENT SPEED CURRENT OUTPUT TORQUE TORQUE CURRENT
r/min A r/min A W G.CM G.CM A
RS385 57 16.5 12.0-30.0V 24VDC 21500 0.24 17200 1.25 19.41 110 525 5.07
RS380 57 16.5 2.4-9.0V 6.0VDC 14400 0.5 11900 3.35 13.44 109.0 630 16.9

More models for further reference:

Type inner BLDC Motor inner BLDC Motor inner BLDC Motor inner BLDC Motor Brushed dc motor Brushed dc motor Brushed dc motor Brushed dc motor Brushed dc motor
Model # BLS2418I;
BLS2430I;		 BLS2838I;
BLS2847I;		 BLS3626I;
BLS3630I;
BLS3640I;
BLS3650I;
BLS3657I;		 BLS4260I;
BLS4275I;		 DC2320;
DC2325;
DC2327;
DC2330;
DC2335;		 DC2720;
DC2725;
DC2728;
DC2733;
DC2737;
DC2740;		 DC3420;
DC3425;
DC3430;
DC3435;
DC3440;
DC3445;		 DC4430;
DC4435;
DC4440;
DC4450;
DC4460;
DC4470;		 DC5350;
DC5365;
DC5375;
DC5380;
DC53100;
Size (mm) Φ24.4 Φ28 Φ36 Φ42 Φ338.3 Φ44~46 Φ52.0 Φ63.0 Φ77.0; Φ82.0
Voltage (V) 6~26 6~26 8~26 8~26 100~240 100~240 12~240 12~240 100~240
RPM 2000~12,000 4000~14,000 2000~10,000 2000~6000 5000~20,000 8000~16,000 2000~9000 2000~9000 2000~10,000
Power (W) 1~8 5~25 5~50 10~90 50~300 150~800 100~350 50~500 300~1200
Typical
application		 air pump, antenna base station power tool, home and office automation power tool, home and office automation electric shocker, power tool power tool, home appliances power tool, home appliances, medical device shredder, household appliances shredder, household appliances, financial appliances mixer, shredder, medical devices


The permanent magnet DC motor is composed of a front cover, a rear cover, a stator, a rotor, a fixed screw, a stator shell and a permanent magnet. The motor is simple and precise, easy to assemble, high in efficiency, long service life, small in size, front and rear covers, The chip, outer diameter size and performance requirements can be customized according to customer needs.

If there is no suitable specifications, it can be customized according to actual needs.

About us

Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.

6V 24V 20000rpm Brushed Permanent Magnet DC Motor For Office Automation

6V 24V 20000rpm Brushed Permanent Magnet DC Motor For Office Automation

6V 24V 20000rpm Brushed Permanent Magnet DC Motor For Office Automation6V 24V 20000rpm Brushed Permanent Magnet DC Motor For Office Automation

Typical Application:

-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder
• Sphygmomanometer

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors,
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler
• Blender, sweeper, window cleaner, small household appliances
