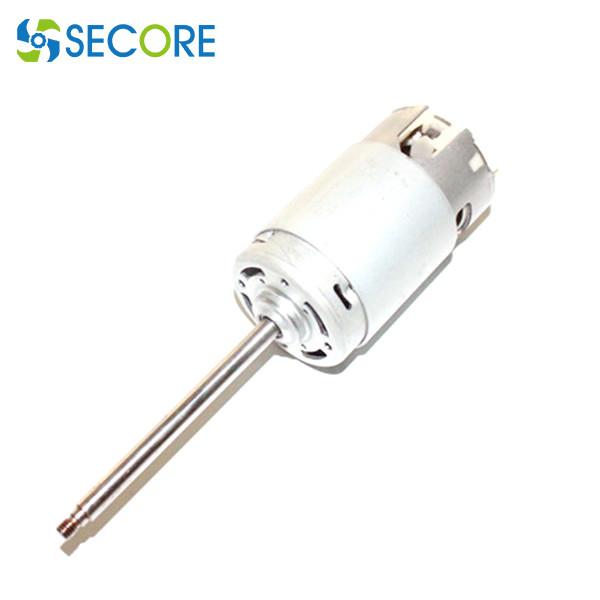

Blender Direct Current Motor , DC 230V Motor With Long Shaft
Blender Direct Current Motor , DC 230V Motor With Long Shaft
Blender Direct Current Motor , DC 230V Motor With Long Shaft
Blender Direct Current Motor , DC 230V Motor With Long Shaft
Specifications
Brand Name :
SECORE
Model Number :
DC2733
Certification :
CE ROHS
Place of Origin :
Guangdong, China
MOQ :
500
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
500pcs per carton or as request
Speed :
11000rpm or customized
Rated voltage :
230V
Rated Torque :
96m.Nm or as request
Commutation :
brushed
output :
180W approx
Product name :
blender, hand blender, mixer motor, juicer
Description

230v High Torque Blender Brushed Motor, Juicer Direct Current Motor With Long Shaft

Specifications of the dc blender motor:

Size: φ45.0* 75.0mm

Voltage:100-240v

Speed:13000rpm

Torque:100m.Nm

Output:150w-500w

Long life: 5000hrs Min.

OEM and ODM orders are welcome

The design can be customized

Applications:

Hand blender, home application, medical apparatus

Samples can be sent on your request.

MODEL SPEC VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY
A B C Operating
range		 RATED SPEED CURRENT POWER SPEED CURRENT OUTPUT TORQUE
r/min A W r/min A W m.Nm
DC2720 95 60 25 100V-240V 230V 14200 0.15 26 10950 0.7 72 50.9
DC2725 100 66 25 100V-240V 230V 13000 0.18 35 9320 0.42 72.6 74.4
DC2733 103 75 19.5 100V-240V 230V 15500 0.17 28 11000 0.88 180 96.8
DC2737 106 78 19 100V-240V 230V 15200 0.19 32 11400 0.98 199 105.6
DC2740 106 81 19 100V-240V 230V 15000 0.2 32 11800 1.12 205 109.2

DC Motor Technical Parameter/ DC Motor Performance Curve:

Blender Direct Current Motor , DC 230V Motor With Long Shaft

Quick info:

Our brushed DC Motors can be customized in the range of 7.2 ~ 230V and 40~100,000rpm, and are fully used in the fields of household appliances, automation, medical healthcare and power tools, such as: hand blender, coffee machine, vacuum cleaner, Robot, etc.

Combination: Precision Gearboxs, Drive Electronics and Encoders

we offer DC motors with precision gearboxs, high-resolution encoders and high-performance drive electronics. Our team (sales and engineers) will help you find the DC motor that is perfectly matched to your requirements.

If there is no suitable specifications, it can be customized according to actual needs.

Blender Direct Current Motor , DC 230V Motor With Long Shaft

Blender Direct Current Motor , DC 230V Motor With Long Shaft

Blender Direct Current Motor , DC 230V Motor With Long Shaft

Typical Application:

-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder, Scanner
• Sphygmomanometer, Medical Stirrer, Medical Pump

- Power tool and fitness equipment

• Electric scissors,Water Pump, Vacuum Pump,Oxyen Generator
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler, fanner
• Blender, sweeper, window cleaner, small household appliances
