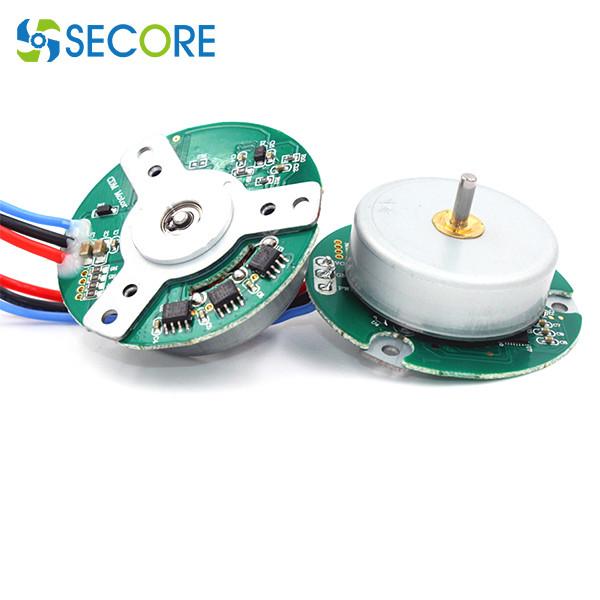

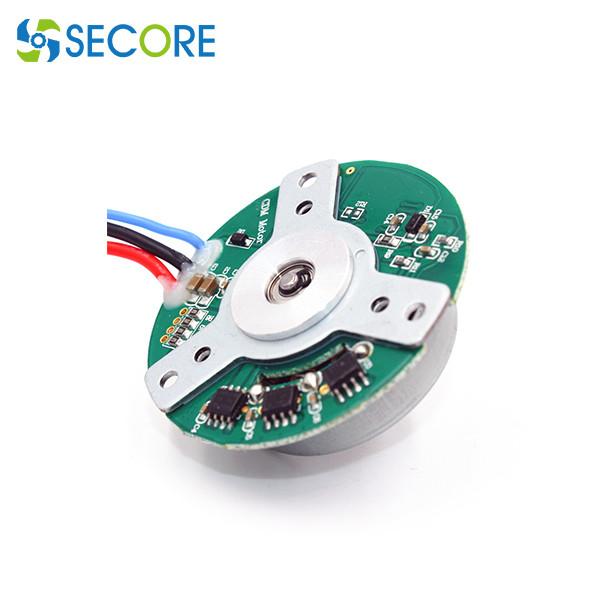

12V 18V 24V Outer Rotor BLDC Motor, Fascia Massage Gun Brushless Motor
12V 18V 24V Outer Rotor BLDC Motor, Fascia Massage Gun Brushless Motor
12V 18V 24V Outer Rotor BLDC Motor, Fascia Massage Gun Brushless Motor
12V 18V 24V Outer Rotor BLDC Motor, Fascia Massage Gun Brushless Motor
Specifications
Brand Name :
SECORE
Model Number :
BLS3717O
Certification :
CE ROHS
Place of Origin :
Guangdong, China
MOQ :
500
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
500pcs per carton or as request
Speed :
10000rpm or customized
Rated voltage :
12V or as request
Rated Torque :
150g.cm or as request
feature :
explosion-proof, drip-proof
continuous current :
1.6A
commutation :
brushless BLDC
Keyword :
High speed BLDC fan motor, fan motor solution, cleaner BLDC motor
Typical application :
vacuum cleaner, electric fan, air cleaner, air purifier, medical apparatus
Description

12V 18V 24V Outer Rotor Brushless Motor, BLDC Massage Motor For Fascia Gun

Main features:

1. Size: Φ 40* 20mmH

3. Shaft Diameter: 4mm

4. Rated Voltage:12V DC, 18V, 24V as request

5. Endplay: 0.3mm

6. Lifetime: 20000H

7. Phase: 3

8. Rotation: CW/CCW controllable

9. No load: 11876RPM 0.25A

10. Rated: 10332RPM 153g.cm

12. At stall: 1184g.cm 10.64A

13. Sensor, driver, tailored performance

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE		 RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A g.cm W g.cm A
BLS3717-V1 8V~16V 12V 11876 0.25 10332 1.6 153.9 16.31 1184.8 10.64
BLS3717-V2 8V~26V 18V 18020 0.29 15497 1.79 168.4 26.76 1202.7 10.98
BLS3717-V3 8V~26V 24V 23274 0.34 20481 2.61 253.4 53.24 2111.9 19.28

12V 18V 24V Outer Rotor BLDC Motor, Fascia Massage Gun Brushless Motor

Production capacity

  • 25 lean production lines (and continue to expand and upgrade automated production lines);
  • Monthly production capacity of 3 million units and continues to grow;
  • The versatility of the motor production line and tooling equipment;
  • Self-developed general fixtures and process equipment;
  • Lean production;
  • Billboard material management;
  • Error-proofing measures for assembling machine molds (Poke Yoke);
  • The unitized manufacturing concept of lean assembly line;
  • Strict control of process manual and QC control plan

Typical Application:

printer motor copier motor projector motor
shredder motor surgical robot motor medical stirrer motor
water pump motor vacuum pump motor vacuum cleaner motor
fascia gun motor massager motor treadmill motor
blender motor sweeper motor roll curtain motor
