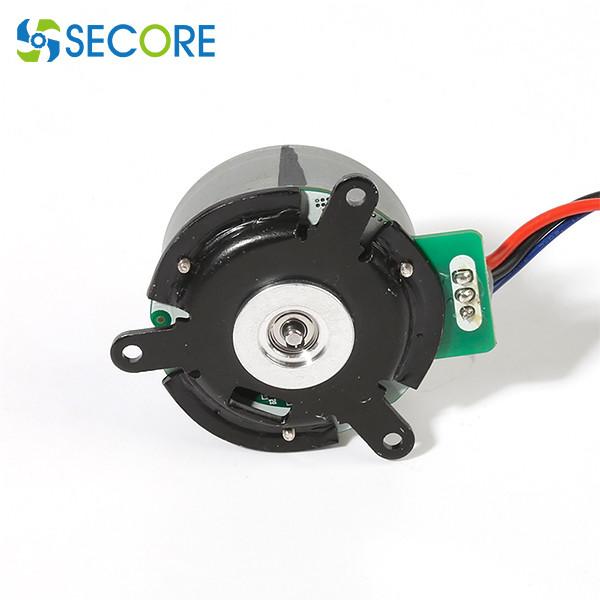

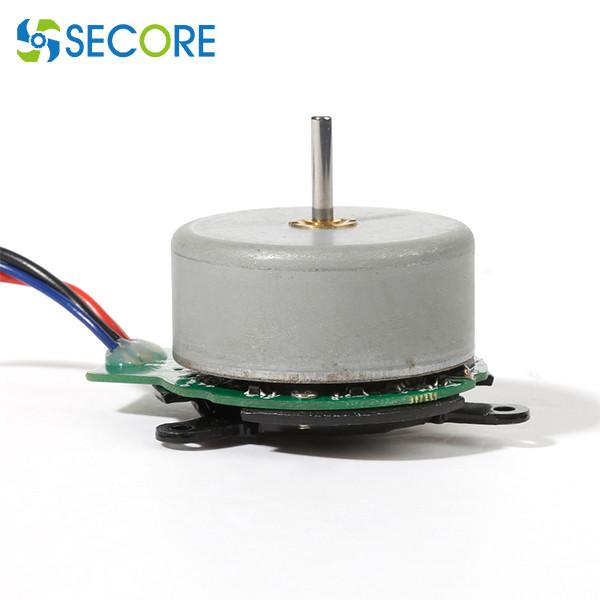

100W Out Rotor 24 Volt Brushless Motor 4500rpm For Chair Cushion Massager
100W Out Rotor 24 Volt Brushless Motor 4500rpm For Chair Cushion Massager
100W Out Rotor 24 Volt Brushless Motor 4500rpm For Chair Cushion Massager
100W Out Rotor 24 Volt Brushless Motor 4500rpm For Chair Cushion Massager
100W Out Rotor 24 Volt Brushless Motor 4500rpm For Chair Cushion Massager
100W Out Rotor 24 Volt Brushless Motor 4500rpm For Chair Cushion Massager
Specifications
Brand Name :
SECORE
Model Number :
BLS-4225O
Certification :
CE ROHS
Place of Origin :
China
MOQ :
500
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
500pcs per carton or as request
Speed :
4500rpm or customized
Output power :
100W
Diameter * length :
42*25（mm）
Construction :
pernanent magnet
Commutation :
outerl rotor brushless
weight :
125g
keyword :
brushless dc motor controller ic, brushless 24v dc motors
Typical application :
percussion massager, chair cushion massager, body massager, neck massager, back massager
Description

Customizable Outrunning Massager motor for Chair Cushion Massager

Specification of this Brushless DC out runner Motors :

1. Voltage Range: 7.4V-24V

2. speed Range: 3000-7000RPM.

3. Application: percussion massager, chair massager, fascia massage gun, foot massager, body massager, neck massager, back massager

4. low noise, Low EMI/EMC, long life, cost-effective

100W Out Rotor 24 Volt Brushless Motor 4500rpm For Chair Cushion Massager

Inner rotor motors vs Outer rotor motors

a) Inner rotor motors place the stator on the outside with the rotor on the inside

b) Outer rotor motors place the stator on the inside with the rotor on the outside

c) Inner rotor motors are longer with a smaller diameter

d) Outer rotor motors are shorter with a larger diameter

e) Outer rotor motors tend to be more efficient

f) Most handheld power tools use inner rotor designs

Motor designer –ANSOFT Finite element analysis

100W Out Rotor 24 Volt Brushless Motor 4500rpm For Chair Cushion Massager

Advantages of dynamic simulation analysis & electromagnetic software:

1. Optimize the use of motor materials to reduce weight and reduce costs
2. Reasonable electromagnetic design and structural design to reduce noise and vibration
3. Optimize motor performance and efficiency
4. Optimize the electromagnetic field distribution of the motor
5. Reduce motor cogging torque, vibration and noise
6. Significantly improve the reliability of the motor

some of Our customers

100W Out Rotor 24 Volt Brushless Motor 4500rpm For Chair Cushion Massager

Brushless DC Motor-Solution in Areas of expertise

Automotive Parts: Micro Pump, Valve

Home Application: White Goods, Small Appliance, Small Fanner, Electric Cooker

Medical Apparatus: Medical Pump, Medical Stirrer, Centrifugal Machine

Industry Apparatus: Electric Valve, Portable Screwdriver, Air/Water/Vacuum Pumps

Business Equipment: Scanner, Cash Register, Card Sender

Personal Care: Hair Curler, Hair Straighter, Hair Dryer, Electric Shaver, Massager,Vibrator
