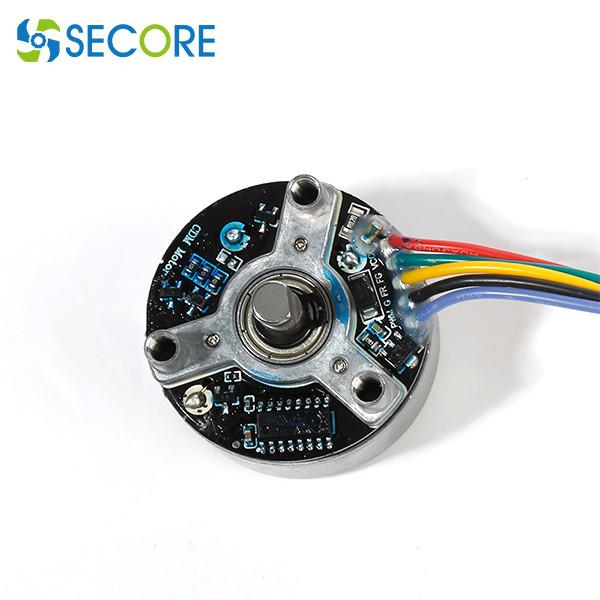

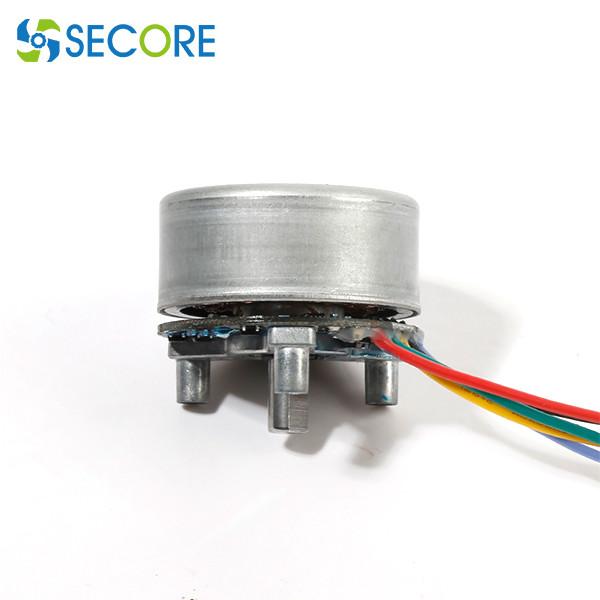

6500rpm Brushless Motor With Built-In Controller 12V BLDC For Home Appliance
6500rpm Brushless Motor With Built-In Controller 12V BLDC For Home Appliance
6500rpm Brushless Motor With Built-In Controller 12V BLDC For Home Appliance
6500rpm Brushless Motor With Built-In Controller 12V BLDC For Home Appliance
6500rpm Brushless Motor With Built-In Controller 12V BLDC For Home Appliance
6500rpm Brushless Motor With Built-In Controller 12V BLDC For Home Appliance
Specifications
Brand Name :
SECORE
Model Number :
BLS-3825O
Certification :
CE ROHS
Place of Origin :
China
MOQ :
500
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-15 working days
Packaging Details :
500pcs per carton or as request
Speed :
3200-6500rpm or customized
Rated voltage :
12-24V
Rated Torque :
60g.cm or as request
Power :
15-25W
Dimension :
∮38*25（mm）
Construction :
permanent magnet
product name :
high torque brushless motor, brushless electric motor, motor brushless 12v
Typical application :
foot massager, hair dryer, electric shaver, medical device etc
Description

6500rpm Brushless Motor With Built-In Controller 12V BLDC For Home Appliance

Main features:

Size: φ38*25mm

Built-in driver

PWM pulse wide speed range

Clockwise/counter-clockwise rotation

FG speed feedback signal

Low EMC / EMI / Noise

Long life: 20000hrs Min.

Model # Rated voltage No load Power at no load max power stall Protection Current Eccentricity design
(V) (rpm) (W) (W) (kg.cm) (A) (mm)
BL3825O-V1 7.4 3600~3900 1~2 15 2.0 5~6 3.0
BL3825O-V2 12 3600~3900 2~3 18 3.0 5~6 3.0
BL3825O-V3 16.8 3600~3900 3~4 20 3.3 5~6 3~3.5
BL3825O-V4 24 3600~3900 4~5 25 3.8 5~6 3~3.5


6500rpm Brushless Motor With Built-In Controller 12V BLDC For Home Appliance

6500rpm Brushless Motor With Built-In Controller 12V BLDC For Home Appliance

Customization Range:

1.Additional voltage types

2.Configurable shaft length and second shaft end

3.Modified shaft dimensions and pinion configurations such as flats, gears, pulleys and eccenters

4.Extended temperature range

5.Vacuum compatibility (e.g., 9-5 Pa)

6.Customization for high speed and or high load applications

7.Customization for motors with increased electrical or mechanical tolerance requirements

If there is no suitable specifications, it can be customized according to actual needs.

About us

Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.

6500rpm Brushless Motor With Built-In Controller 12V BLDC For Home Appliance

6500rpm Brushless Motor With Built-In Controller 12V BLDC For Home Appliance

LAB Testing devices:

Motor performance testing

Motor reliability test and life test
Motor driver board component test
Motor noise test
Corrosion resistance test
Insulation voltage and resistance test

Parts of Typical Application:

1. Bank System: ATM, currency counter
2. Vending Machine: Beverage Vending Machine, Coffee Vending Machine
3. Security: Door Lock, Safebox, Sucurity Camera
4. Sanitary Applications: Towel dispenser, soap dispenser, air freshener dispenser, hand dryer
5. Medical Equipments: Automative Blood Press Monitor, Dosing Equipment
6. AI: Robot and Robot Arm
7. Home Appliance: Kitchen Appliance, TV Lift, Auto Cleaner, Auto Toilet Lid
8. Office Products: Printer, Paper Shredder, Label Machine
