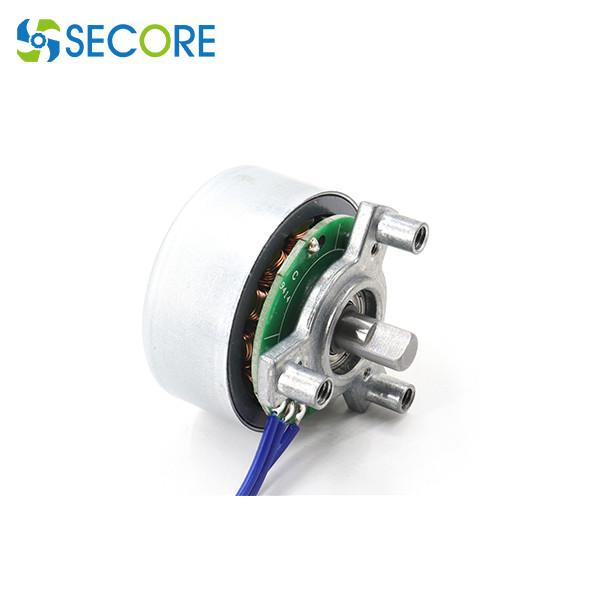

Fascia Muscle Gun Brushless Outrunner Massager Motor 5500RPM With 3mm Shaft
Fascia Muscle Gun Brushless Outrunner Massager Motor 5500RPM With 3mm Shaft
Fascia Muscle Gun Brushless Outrunner Massager Motor 5500RPM With 3mm Shaft
Fascia Muscle Gun Brushless Outrunner Massager Motor 5500RPM With 3mm Shaft
Fascia Muscle Gun Brushless Outrunner Massager Motor 5500RPM With 3mm Shaft
Fascia Muscle Gun Brushless Outrunner Massager Motor 5500RPM With 3mm Shaft
Specifications
Brand Name :
SECORE
Model Number :
BLS-3717O
Certification :
CE ROHS
Place of Origin :
Guangdong, China
MOQ :
500
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
500pcs per carton or as request
Speed :
5000rpm~15000RPM or customized
Rated voltage :
12V 24V or as request
dimension :
37mm * 20mm diameter * height
Rated Torque :
90g.cm or as request
feature :
low noise, totally enclosed, high speed
commutation :
brushless EMC
Description

High Torque Sensored Massager Motor, Brushless Outrunner Motor 5500RPM For Fascia Muscle Gun

Main features:

Product name High Torque Sensored Massager Motor, Brushless Outrunner Motor 5500RPM For Fascia Mussle Gun
Typically application Mussle massage gun, vibration massager, back massager, massage chair
Rated power 36W
Dimension 37mm * 20mm diameter * length
Shaft diameter 3mm
No load current 0.33A at 18V
Weight
75g

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE		 RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A g.cm W g.cm A
BLS3717-V1 8V~16V 12V 11873 0.27 10324 1.65 153.2 16.27 1184.4 10.64
BLS3717-V2 8V~26V 18V 18024 0.33 15483 1.74 168.6 26.33 1202.5 10.93
BLS3717-V3 8V~26V 24V 23267 0.35 20492 2.63 253.7 53.43 2111.4 19.25

Fascia Muscle Gun Brushless Outrunner Massager Motor 5500RPM With 3mm Shaft

Fascia Muscle Gun Brushless Outrunner Massager Motor 5500RPM With 3mm Shaft

What are the Advantages of Brushed and Brushless DC Motors?

Brushed

1. Low overall construction costs

2. Can often be rebuilt to extend life

3. Simple and inexpensive controller

4. Controller not needed for fixed speed

5. Ideal for extreme operating environments

Brushless

1. Less overall maintenance due to lack of brushes

2. Operates effectively at all speeds with rated load

3. High efficiency and high output power to size ratio

4. Reduced size with far superior thermal characteristics

5. Higher speed range and lower electric noise generation.

Motor Solution in areas of expertise:

Juicer motor Dishwasher motor Lawn mower motor Mulcher motor
Treadmill motor Washing machine motor Secateur motor Grass Cutter motor
Fascia gun motor Fan motor Olive shaker motor Lown Mower motor
Electric massager motor Small home appliance motor Pole pruner motor Electric Chain Saw motor
Air conditioner motor Chain saw motor Concrete cutter motor Robot motor
Robot vacuum cleaner motor Trimmer motor Metal cuter motor Component motor
Power reclining sofas motor Leaf blower motor Circular saw motor Snow Thrower motor
