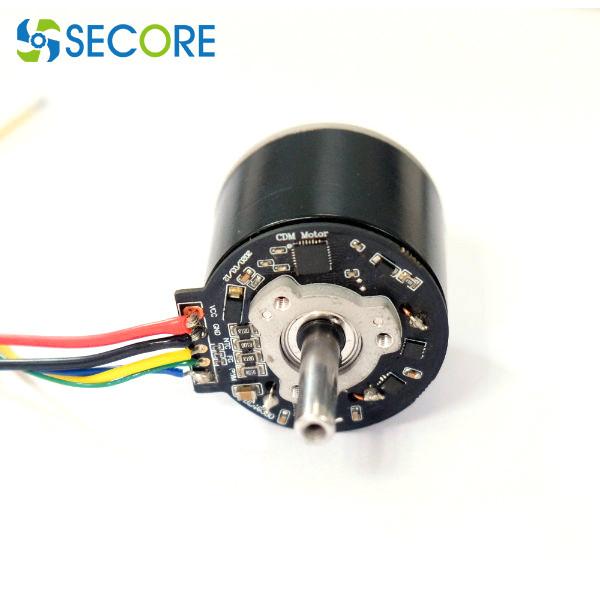

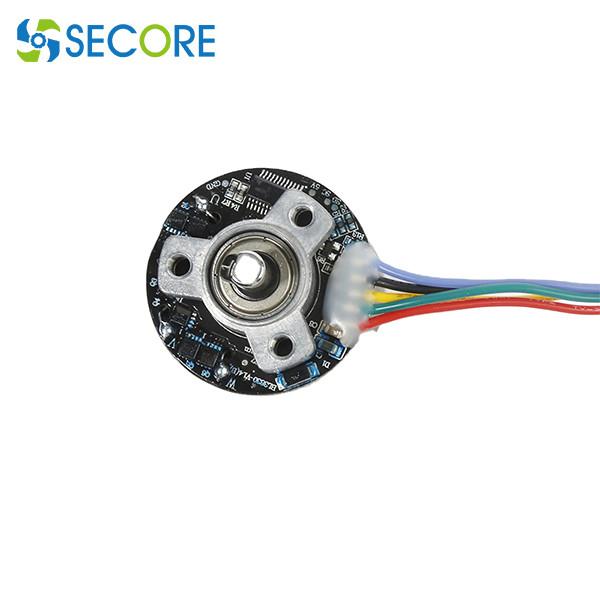

Electronic Commutation Brushless Outrunner Motor , EC 24v Brushless Motor For Air Purifier
Electronic Commutation Brushless Outrunner Motor , EC 24v Brushless Motor For Air Purifier
Electronic Commutation Brushless Outrunner Motor , EC 24v Brushless Motor For Air Purifier
Electronic Commutation Brushless Outrunner Motor , EC 24v Brushless Motor For Air Purifier
Electronic Commutation Brushless Outrunner Motor , EC 24v Brushless Motor For Air Purifier
Electronic Commutation Brushless Outrunner Motor , EC 24v Brushless Motor For Air Purifier
Specifications
Brand Name :
SECORE
Model Number :
BLS4035O
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
100pcs per carton or as request
Speed :
5000rpm or customized
Output power :
50W
Diameter * length :
∮40*35（mm）
Construction :
pernanent magnet
Commutation :
outerl rotor brushless
weight :
75g
keyword :
massage motor, 24v brushless dc motor, brushless 24v, brushless dc fan 24v
Typical application :
percussion massager, foot massager, body massager, neck massager, back massager
Description

24 volt electronic commutation EC brushless motor with long lifespan

Specification of this Brushless DC out runner Motors :

1. Voltage Range: 7.4V-24V

2. speed Range: 2000-6100RPM.

3. Application: percussion massager, chair massager, fascia massage gun, foot massager, body massager, neck massager, back massager

4. low noise, Low EMI/EMC, long life, cost-effective

Electronic Commutation Brushless Outrunner Motor , EC 24v Brushless Motor For Air Purifier

Electronic Commutation Brushless Outrunner Motor , EC 24v Brushless Motor For Air Purifier

Motor designer –ANSOFT Finite element analysis

Electronic Commutation Brushless Outrunner Motor , EC 24v Brushless Motor For Air Purifier

Advantages of dynamic simulation analysis & electromagnetic software:

1. Optimize the use of motor materials to reduce weight and reduce costs
2. Reasonable electromagnetic design and structural design to reduce noise and vibration
3. Optimize motor performance and efficiency
4. Optimize the electromagnetic field distribution of the motor
5. Reduce motor cogging torque, vibration and noise
6. Significantly improve the reliability of the motor

some of Our customers

Electronic Commutation Brushless Outrunner Motor , EC 24v Brushless Motor For Air Purifier

Brushless DC Motor-Solution in Areas of expertise

Automotive Parts: Micro Pump, Valve

Home Application: White Goods, Small Appliance, Small Fanner, Electric Cooker

Medical Apparatus: Medical Pump, Medical Stirrer, Centrifugal Machine

Industry Apparatus: Electric Valve, Portable Screwdriver, Air/Water/Vacuum Pumps

Business Equipment: Scanner, Cash Register, Card Sender

Personal Care: Hair Curler, Hair Straighter, Hair Dryer, Electric Shaver, Massager,Vibrator
