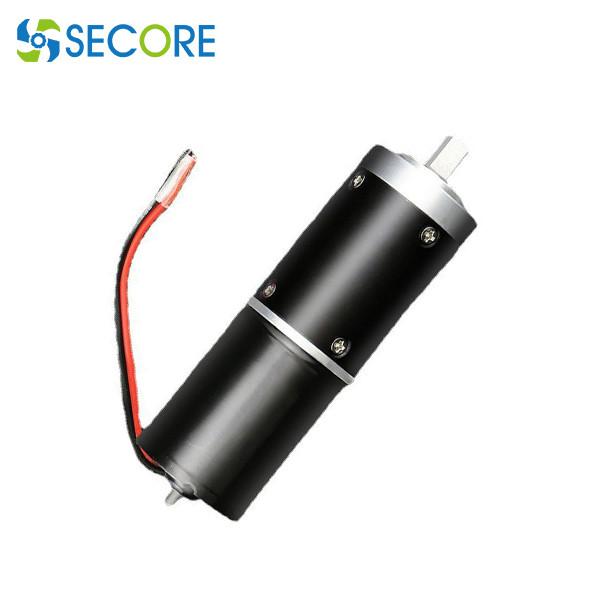

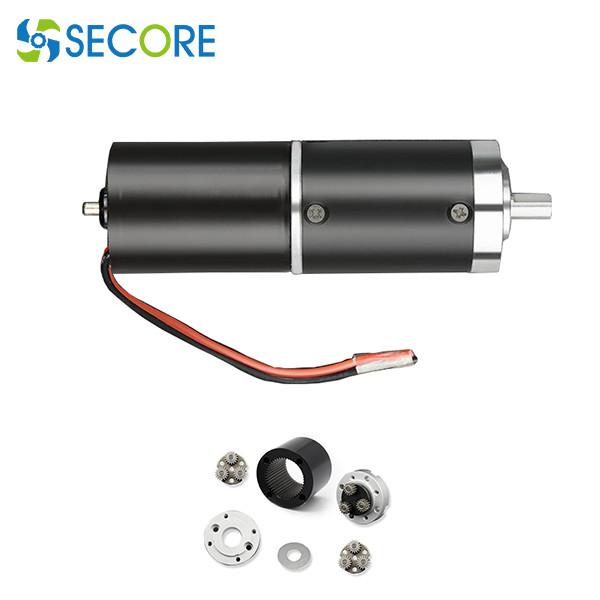

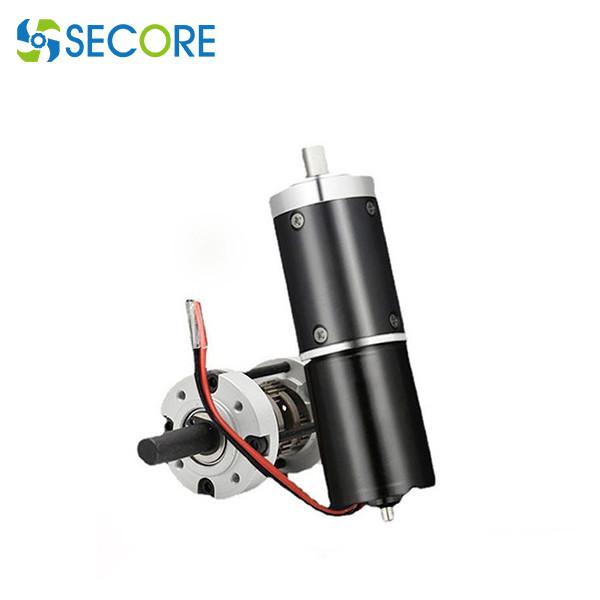

28mm Micro Coreless DC Motor Planetary Gear Motor Precision Metal Gearbox Ironless Motor
28mm Micro Coreless DC Motor Planetary Gear Motor Precision Metal Gearbox Ironless Motor
28mm Micro Coreless DC Motor Planetary Gear Motor Precision Metal Gearbox Ironless Motor
28mm Micro Coreless DC Motor Planetary Gear Motor Precision Metal Gearbox Ironless Motor
28mm Micro Coreless DC Motor Planetary Gear Motor Precision Metal Gearbox Ironless Motor
28mm Micro Coreless DC Motor Planetary Gear Motor Precision Metal Gearbox Ironless Motor
28mm Micro Coreless DC Motor Planetary Gear Motor Precision Metal Gearbox Ironless Motor
28mm Micro Coreless DC Motor Planetary Gear Motor Precision Metal Gearbox Ironless Motor
Specifications
Brand Name :
SECORE
Model Number :
CL2846-395
Certification :
CE ROHS
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
7-10 working days
Packaging Details :
80pcs per carton or as request
Rated Voltage :
24V
Rated Power :
4.56W
Rated torque :
11kg.cm / 156oz.in
Free load Speed :
60rpm
With load speed :
42rpm
gear ratio :
1:139
Rated current :
0.32A
motor size :
28*46mm
product name :
mini brush coreless planetary gear motor
application :
Beauty equipment, power tool, medical device
Description

28mm Micro Coreless Dc Planetary Gear Motor Precision Metal Gearbox Ironless Motor


Secore Planetary Coreless Gear Motor parameter:

Model VOLTAGE NO LOAD WITH LOAD gear ratio

1:___		 Length L
SPEED
RPM		 CURRENT
max A		 SPEED
RPM		 TORQUE
kg.cm mN.m oz.in		 CURRENT
max A		 Output
W
CL2846-395 24 2160 0.22 1512 0.4 39.2 5.555 0.32 6.2 3.7 73.3
CL2846-395 24 1530 0.1 1071 0.56 54.88 7.777 0.32 6.2 5.2 73.3
CL2846-395 24 580 0.23 406 1.3 127.4 18.054 0.32 5.58 13.7 81.4
CL2846-395 24 410 0.11 287 1.81 177.38 25.136 0.32 5.58 19.2 81.4
CL2846-395 24 290 0.11 203 2.55 249.9 35.413 0.32 5.58 27 81.4
CL2846-395 24 150 0.24 105 4.09 400.82 56.800 0.32 4.56 50.5 89.5
CL2846-395 24 110 0.11 77 5.75 563.5 79.853 0.32 4.56 71 89.5
CL2846-395 24 80 0.11 56 8.1 793.8 112.489 0.32 4.56 100 89.5
CL2846-395 24 60 0.11 42 11.26 1103.48 156.373 0.32 4.56 139 89.5
CL2846-395 24 40 0.25 28 12.85 1259.3 178.454 0.32 3.6 187.5 100.6
CL2846-395 24 30 0.12 21 17.75 1739.5 246.503 0.32 3.6 263 100.6
CL2846-395 24 20 0.12 14 25 2450 347.188 0.32 3.6 370 100.6
CL2846-395 24 15 0.12 10 35 3430 486.063 0.32 3.6 520 100.6
CL2846-395 24 10 0.12 7 49 4802 680.488 0.32 3.6 731 100.6
Gear ring material steel
Bearing at output ball bearings
Radial paly of shaft <0.05mm
Thrust play of shaft <0.2mm
Backlash at no load <2.0
Gear material Steel/powder alloy
Output shaft θ4.0 θ6.0 θ8.0 custom made
New weight 300g
Outline drawing
28mm Micro Coreless DC Motor Planetary Gear Motor Precision Metal Gearbox Ironless Motor
Strict raw material application
gear, plastic, gear + plastic
28mm Micro Coreless DC Motor Planetary Gear Motor Precision Metal Gearbox Ironless Motor
28mm Micro Coreless DC Motor Planetary Gear Motor Precision Metal Gearbox Ironless Motor
Application
Coreless DC motors are ideal for a variety of dynamic applications, including automotive systems, cable pull systems, microscopes and electric screwdrivers, tattoo machines, golf carts and massage chairs. With a coreless motor, the possibilities for designers are endless. It includes robotics projects such as small positioning and pan/tilt systems. Medical devices such as prosthetics, insulin pumps, X-ray machines and laboratory equipment also benefit from the use of coreless motors. In addition, there are many applications in particularly demanding fields such as aerospace, defense and surveillance.
