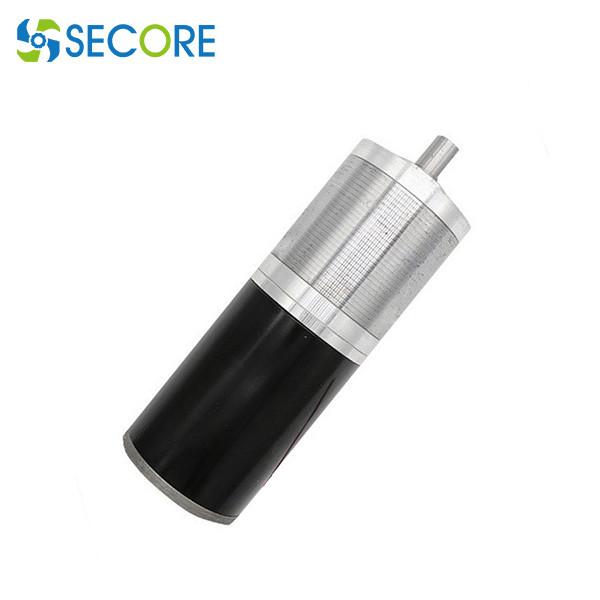

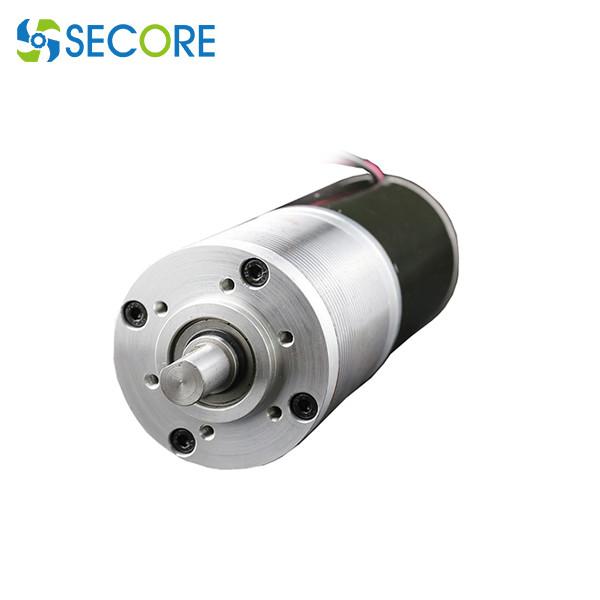

45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor
45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor
45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor
45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor
45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor
45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor
45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor
45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor
Specifications
Brand Name :
SECORE
Model Number :
CL4567-775
Certification :
CE ROHS
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
7-10 working days
Packaging Details :
80pcs per carton or as request
Rated Voltage :
24V
Free load Speed :
40rpm
With load speed :
34rpm
Rated Power :
20W
Rated torque :
56kg.cm / 781oz.in
gear ratio :
1:187.5
Rated current :
1.67A max
motor size :
45*67mm
product name :
high quality brush ironless planetary gear motor
application :
automobile part, power tool, medical device
Description

45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor


Secore Planetary ironless Gear Motor parameter:

Model VOLTAGE NO LOAD WITH LOAD gear ratio

1:___		 Length L
SPEED
RPM		 CURRENT
max A		 SPEED
RPM		 TORQUE
kg.cm mN.m oz.in		 CURRENT
max A		 Output
W
CL4567-775 24 2160 0.35 1730 1.78 174.44 24.72 1.67 32 3.7 100.1
CL4567-775 24 1530 0.22 1280 2.4 235.2 33.330 1.67 32 5 100.1
CL4567-775 24 580 0.35 467 5.75 563.5 79.853 1.67 28 13.7 108.2
CL4567-775 24 410 0.22 346 7.77 761.46 107.906 1.67 28 18.5 108.2
CL4567-775 24 290 0.22 256 10.5 1029 145.819 1.67 28 25 108.2
CL4567-775 24 150 0.35 127 18.18 1781.64 252.475 1.67 24 50.5 116.3
CL4567-775 24 110 0.22 93 24.66 2416.68 342.466 1.67 24 68.5 116.3
CL4567-775 24 80 0.22 69 33.3 3263.4 462.454 1.67 24 92.5 116.3
CL4567-775 24 60 0.22 51 45 4410 624.938 1.67 24 125 116.3
CL4567-775 24 40 0.35 34 56.25 5512.5 781.172 1.67 20 187.5 127.4
CL4567-775 24 30 0.22 25 76.2 7467.6 1058.228 1.67 20 254 127.4
CL4567-775 24 23 0.22 19 102.6 10054.8 1424.858 1.67 20 342 127.4
CL4567-775 24 17 0.22 14 138.75 13597.5 1926.891 1.67 20 462.5 127.4
CL4567-775 24 12 0.22 10 187.5 18375 2603.906 1.67 20 625 127.4
Gear ring material steel
Bearing at output ball bearings
Radial paly of shaft <0.05mm
Thrust play of shaft <0.2mm
Backlash at no load <2.0
Gear material Steel/powder alloy
Output shaft θ4.0 θ6.0 θ8.0 custom made
New weight NA
Outline drawing
45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor
Strict raw material application
45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor
