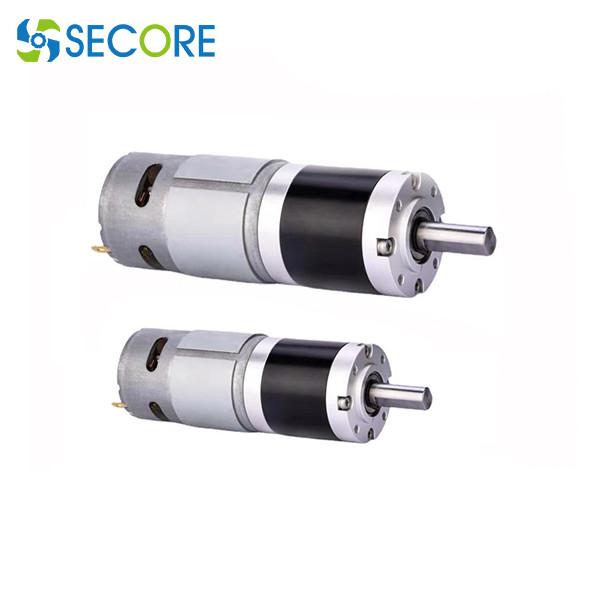

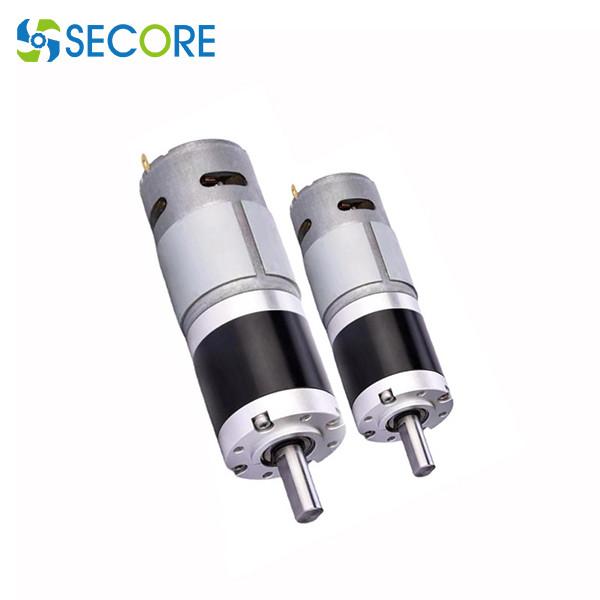

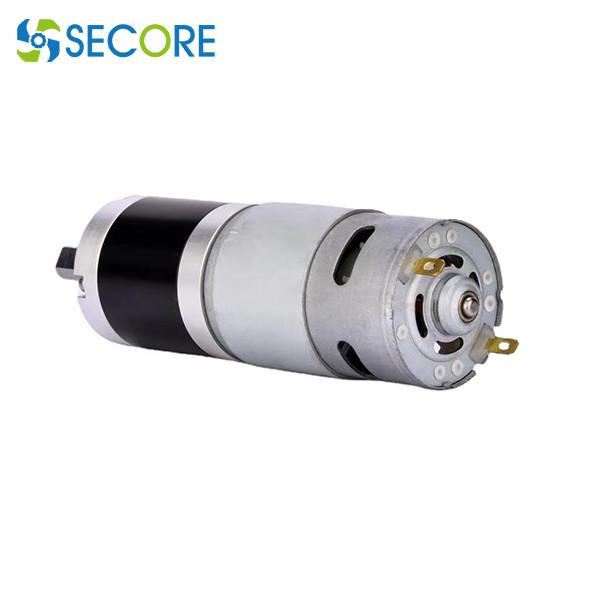

Medical Equipment DC Planetary Gear Motor 24V 2NM 90rpm DC Gear Reduction Motor
Medical Equipment DC Planetary Gear Motor 24V 2NM 90rpm DC Gear Reduction Motor
Medical Equipment DC Planetary Gear Motor 24V 2NM 90rpm DC Gear Reduction Motor
Medical Equipment DC Planetary Gear Motor 24V 2NM 90rpm DC Gear Reduction Motor
Medical Equipment DC Planetary Gear Motor 24V 2NM 90rpm DC Gear Reduction Motor
Medical Equipment DC Planetary Gear Motor 24V 2NM 90rpm DC Gear Reduction Motor
Medical Equipment DC Planetary Gear Motor 24V 2NM 90rpm DC Gear Reduction Motor
Medical Equipment DC Planetary Gear Motor 24V 2NM 90rpm DC Gear Reduction Motor
Medical Equipment DC Planetary Gear Motor 24V 2NM 90rpm DC Gear Reduction Motor
Medical Equipment DC Planetary Gear Motor 24V 2NM 90rpm DC Gear Reduction Motor
Specifications
Brand Name :
SECORE
Model Number :
DC4259-42
Certification :
CE ROHS
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
7-10 working days
Packaging Details :
80pcs per carton or as request
Rated Voltage :
24V or 12V, 36V
Free load Speed :
117rpm
With load speed :
93rpm
Rated Power :
24W
Rated torque :
24.67kg.cm / 342oz.in
gear ratio :
1: 68.5
Rated current :
1.68A max
motor size :
42*59mm + gearbox
product name :
DC planetary gear motor
application :
sweeper, smart home, medical equipment
Description

24V 2N.M 90rpm Medical Equipment Gear Motor Dc Brush Gear Reducing Motor


Secore Planetary Brush DC Gear Motor parameter:

Model VOLTAGE NO LOAD WITH LOAD gear ratio

1:___		 Length L
SPEED
RPM		 CURRENT
max A		 SPEED
RPM		 TORQUE
kg.cm mN.m oz.in		 CURRENT
max A		 Output
W
DC4259-42 24 2162 0.35 1730 1.79 175.42 24.859 1.68 32 3.7 92.1
DC4259-42 24 1600 0.22 1280 2.41 236.18 33.469 1.68 32 5 92.1
DC4259-42 24 584 0.35 467 5.76 564.48 79.992 1.68 28 13.7 100.2
DC4259-42 24 432 0.22 346 7.78 762.44 108.045 1.68 28 18.5 100.2
DC4259-42 24 320 0.22 256 10.51 1029.98 145.958 1.68 28 25 100.2
DC4259-42 24 158 0.35 127 18.19 1782.62 252.614 1.68 24 50.5 108.3
DC4259-42 24 117 0.22 93 24.67 2417.66 342.605 1.68 24 68.5 108.3
DC4259-42 24 86 0.22 69 33.31 3264.38 462.593 1.68 24 92.5 108.3
DC4259-42 24 64 0.22 51 45.21 4430.58 627.854 1.68 24 125 108.3
DC4259-42 24 43 0.35 34 56.24 5511.52 781.033 1.68 20 187.5 119.4
DC4259-42 24 31 0.22 25 76.23 7470.54 1058.644 1.68 20 254 119.4
DC4259-42 24 23 0.22 19 102.62 10056.76 1425.135 1.68 20 342 119.4
DC4259-42 24 17 0.22 14 138.76 13598.48 1927.030 1.68 20 462.5 119.4
DC4259-42 24 13 0.22 10 187.6 18384.8 2605.295 1.68 20 625 119.4
Product name Planetary gear motor Motor type Brush motor ( optional )
Voltage range 3~36V Gear ratio 4-2418 ( customize )
Speed 3~2000r/min Torque 180kg.cm or Customized
Output shaft θ2~8mm Weight Customized

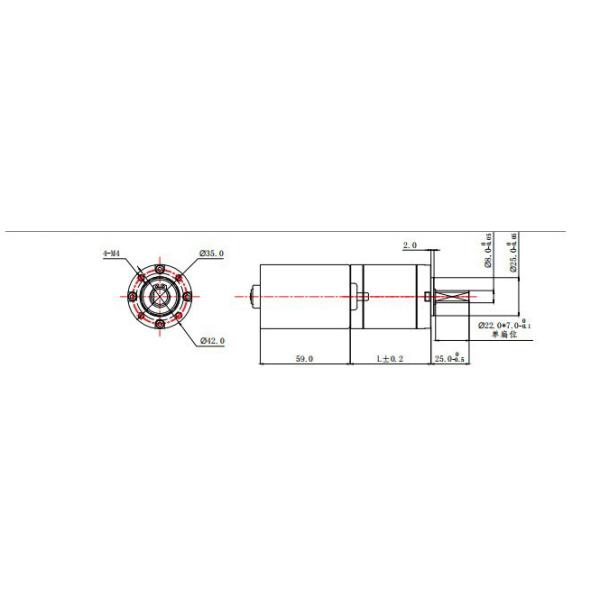

Outline drawing
Medical Equipment DC Planetary Gear Motor 24V 2NM 90rpm DC Gear Reduction Motor
When should you use a planetary gearbox?
One of the main features of planetary gearboxes is the coaxial assembly. This type of assembly means that the planetary gearbox is compact. The advantages of planetary gearboxes include their compact size, high efficiency, low backlash and high torque-to-weight ratio. On the other hand, their complex and expensive designs require specialized maintenance. A planetary gearbox is a gearbox in which the input and output shafts are aligned. Planetary gearboxes are used to transmit maximum torque in the most compact form known as torque density.
