Specifications
Brand Name :
SECORE
Model Number :
DC3650 / 545
Certification :
CE ROHS
Place of Origin :
Guangdong
MOQ :
200
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
7-12 working days
Packaging Details :
50pcs per carton or as request
motor dimension :
36mm*50mm ( diameter * length )
Rated voltage :
24V
Rated Torque :
12.446mN.m
rated speed :
3400rpm or as request
output power :
4.4W
Item type :
brush iron core motor
Commutation :
mechanical commutating
Application :
power tool, electric shaver
Description

Custom Made Power Tool 3650 Dc Motor 12V 24V ODM OEM Brushed Motor 545

Secore brush dc motor 545 / DC3650

  • Rated voltage: DC 12V /24V
  • The direction of rotation: CW/CCW
  • No-load speed: 4200 rpm
  • No-load current: 0.16 A
Model VOLTAGE NO LOAD WITH LOAD STALL
SPEED
RPM		 CURRENT
max A		 SPEED
RPM		 TORQUE
kg.cm mN.m oz.in		 CURRENT
max A		 Output
W		 TORQUE
g.cm		 CURRENT
max A
DC3650 24 3600 0.07 3020 0.176 17.248 2.4445 0.35 5.7 1062 1.78
DC3650 24 4200 0.16 3400 0.127 12.446 1.764 0.63 4.4 630 2.5

Low voltage permanent magnet DC motor applies for power tool, electric shaver, oxygen inhaler, hair dryer,sump pump, hair Straightener, sex toys, personal care, beauty equipment, health products, toys, model aircraft, smart kitchen, smart home and many more application

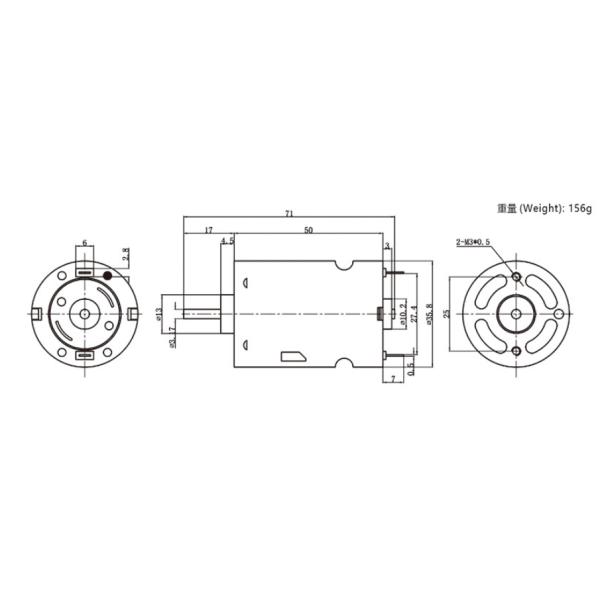

Mounting sizes:

Power Tool Brushed Permanent Magnet DC Motor 12V 24V 545 Brushed Motor ODM OEM


TO BE TAILORED

  • Customized voltage, motor performance
  • Customized mounting, shaft dimension, and lead configuration
  • Overload protection, thermal protection
  • High temperature and waterproof option
  • Integrated gearbox, controller, encoder, driver, brake
  • Special coil, bearing type etc.
