Specifications
Brand Name :
SECORE
Model Number :
BL2431-27GB
Certification :
RoHS
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
50pcs per carton or as request
Motor dimension :
24*30.8（mm）
Free load speed :
3rpm~200rpm
Speed Rated :
2.6rpm~172rpm
Rated Torque :
1.46~60kg.cm
Rated current :
0.47A
gear type :
30mm spur gear motor
Typical application :
robot arm, toilet cover
shaft diameter :
3.5mm or customize
Description

24V Toilet Cover Gear Motor Factory Supply 30mm High Torque 15KG 14rpm Spur Gear Motor For Robot Arm

Secore spur gear motor 24v 2431-27GB

MODEL VOLTAGE NO LOAD WITH LOAD STALL
SPEED
RPM		 CURRENT
max A		 SPEED
RPM		 TORQUE
Kg.cm		 CURRENT
max A		 Output
W		 TORQUE
min Kg.cm		 CURRENT
max A
DC2431-27GB 12 3000 0.07 1950 0.05 0.26 1.03 0.128 0.53
DC2431-27GB 12 4500 0.09 8400 0.05 0.46 1.84 0.202 1.3
DC2431-27GB 12 9000 0.2 6400 0.05 0.67 4.1 0.34 2.9
DC2431-27GB 24 3500 0.08 2750 0.074 0.25 2.13 0.4 0.45
DC2431-27GB 24 7400 0.12 6400 0.061 0.37 4.02 0.4 1.582

Reduction stage 4 5 6 7 8
Reduction ratio 37K 88K, 114K, 131K 206K, 265K, 305K, 341K, 392K, 450K 619K, 711K, 796K, 914K, 1049K, 1548K 1857K, 2132K, 2387K, 2447K
gearbox length L 22.2 24.8 27.4 30 32.6
Gearbox efficiency 65% 59% 53% 48% 43%

The parameter is for reference only, volt, torque, speed, shaft can be tailored as per customers' request
Gear motor output torque: motor output torque * gear ratio * gearhead efficiency
Gear motor output speed: motor output speed / gear ratio

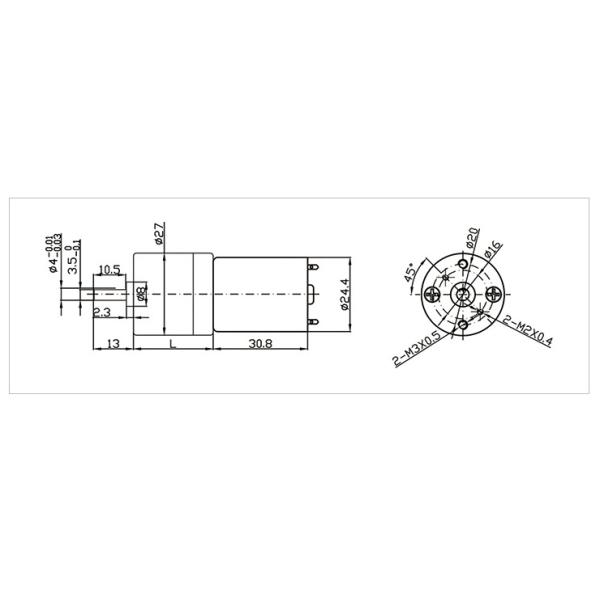

Dimension of the spur gear motor:

30mm High Torque 15KG Spur Gear Motor Toilet Cover Gear Motor
