Automatic Door Brush Gear Motor 12V 24V Vending Machine 10RPM 20RPM DC Motor
Automatic Door Brush Gear Motor 12V 24V Vending Machine 10RPM 20RPM DC Motor
Automatic Door Brush Gear Motor 12V 24V Vending Machine 10RPM 20RPM DC Motor
Automatic Door Brush Gear Motor 12V 24V Vending Machine 10RPM 20RPM DC Motor
Automatic Door Brush Gear Motor 12V 24V Vending Machine 10RPM 20RPM DC Motor
Automatic Door Brush Gear Motor 12V 24V Vending Machine 10RPM 20RPM DC Motor
Specifications
Brand Name :
SECORE
Model Number :
DC3530-37GB
Certification :
RoHS
Place of Origin :
Guangdong
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
50pcs per carton or as request
Motor size :
35mm *40mm ( diameter * length )
Gear ratio :
1:122
Rated voltage :
24V
Speed Rated :
8.7rpm or customized
Free load speed :
10.8rpm or as request
Rated Torque :
18kg.cm /1.8N.m
Rated current :
0.4A
Motor type :
3540 brush motor 12V24V door gear motor
Typical application :
automatic door, automatic window, electric window
shaft diameter :
5.5mm or customize
Description

Automatic Door Gear Motor And 12/24V Vending Machine 10RPM 20RPM DC Motor

Secore Brush gear motor 12v 24v 3640-37GB

Reduction stage 2 3 4 5 6 7
Reduction ratio 6K, 8K, 10K 20K, 30K 61K, 90K 104K, 122K, 184K, 270K 311K, 552K, 414K, 810K 1243K, 1656K, 2430K
gearbox length L 18 21.5 24 26.5 29 31.5
Gearbox efficiency 81% 73% 65% 59% 53% 48%

MODEL VOLTAGE NO LOAD WITH LOAD STALL
SPEED
RPM		 CURRENT
max A		 SPEED
RPM		 TORQUE
Kg.cm		 CURRENT
max A		 Output
W		 TORQUE
min Kg.cm		 CURRENT
max A
DC3530-37GB 12 3000 0.024 2250 0.041 0.171 0.51 0.145 0.41
DC3530-37GB 12 4500 0.046 3600 0.045 0.212 1.72 0.208 1.07
DC3530-37GB 12 6000 0.055 4800 0.061 0.368 3.11 0.278 1.85
DC3530-37GB 24 3000 0.021 2400 0.046 0.052 1.12 0.201 0.22
DC3530-37GB 24 4500 0.032 3600 0.051 0.115 1.91 0.226 0.49
DC3530-37GB 24 6000 0.031 4800 0.077 0.211 3.81 0.343 0.85

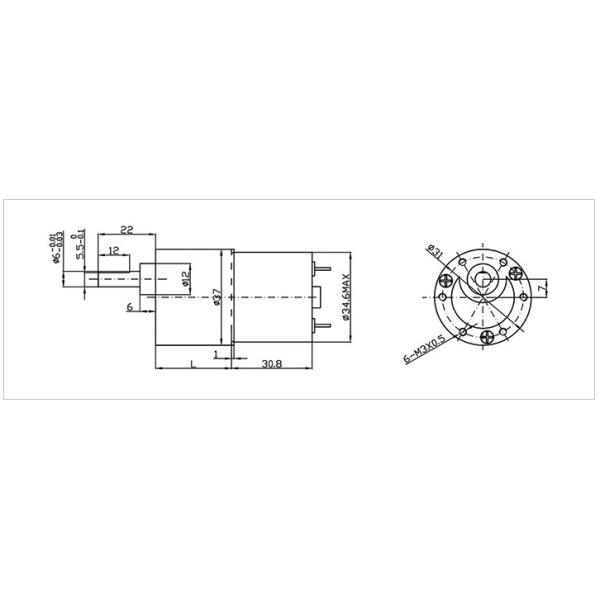

Dimension of the spur gear motor:


Automatic Door Brush Gear Motor 12V 24V Vending Machine 10RPM 20RPM DC Motor

Spur Gear motors:

A spur gear motor is a cost effective solution, suited for low torque and low RPM applications such as electric door, automated paper towel dispenser. Brush commutated spur gear DC motor, it includes a supply voltage range between 2-36V and can be supplied with or without encoder depending on the type. Available gear types are worm, planetary or spur gears. For some types, carbon or metal brushes are also available. All motors can be customized upon request. Common customizations are shaft dimensions, cable connections. Submit your motor requirements today and let's help to make your application more efficient.
