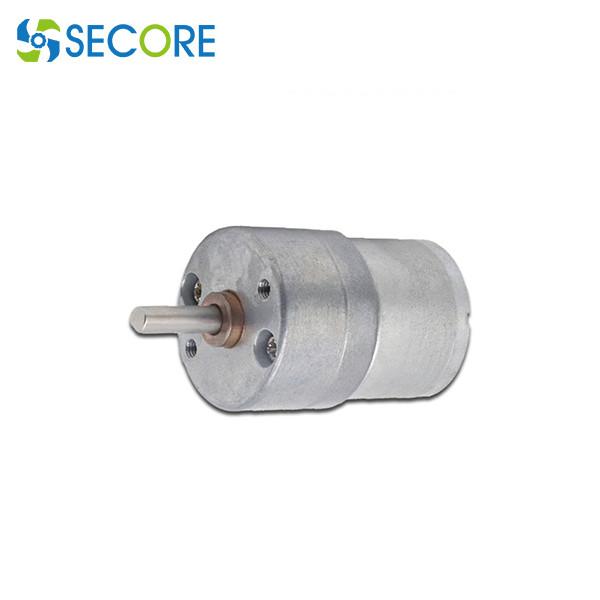

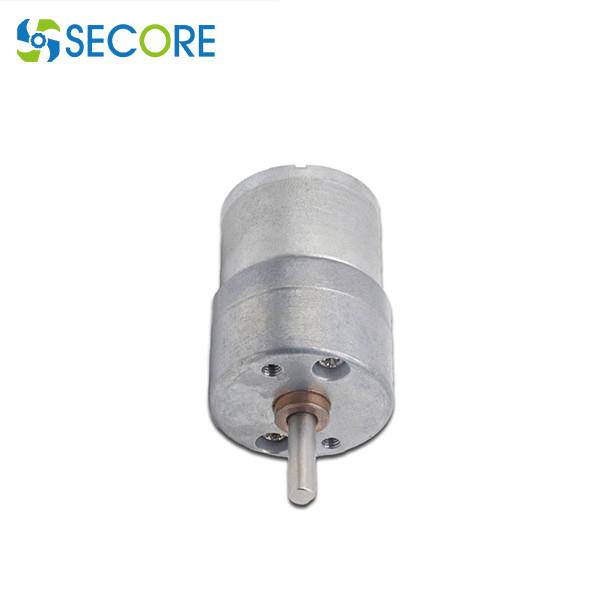

27mm Micro DC Spur Gear Motor Brush Deceleration Electric Lock Gear Motor
27mm Micro DC Spur Gear Motor Brush Deceleration Electric Lock Gear Motor
27mm Micro DC Spur Gear Motor Brush Deceleration Electric Lock Gear Motor
27mm Micro DC Spur Gear Motor Brush Deceleration Electric Lock Gear Motor
27mm Micro DC Spur Gear Motor Brush Deceleration Electric Lock Gear Motor
27mm Micro DC Spur Gear Motor Brush Deceleration Electric Lock Gear Motor
27mm Micro DC Spur Gear Motor Brush Deceleration Electric Lock Gear Motor
27mm Micro DC Spur Gear Motor Brush Deceleration Electric Lock Gear Motor
Specifications
Brand Name :
SECORE
Model Number :
BL2418-27GB
Certification :
RoHS
Place of Origin :
Guangdong
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
50pcs per carton or as request
Motor dimension :
OD24*L18（mm）
Speed Rated :
2.9rpm~2525rpm
Free load speed :
3.7rpm~315rpm
Rated Torque :
0.12kg.cm
Rated current :
0.16mA
Motor type :
27mm spur gear motor
Typical application :
electric anti-theft lock, automatic lock, robot
shaft diameter :
3.5mm or customize
Description

Anti-theft Lock Gear Motor 27mm Micro DC Spur Gear Motor Brush Deceleration Motor

Secore gear motor 6V 12v 24v small brush gear motor 2418-27GB

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED
RPM		 CURRENT
mA		 SPEED
RPM		 TORQUE
Kg.cm		 CURRENT
mA		 Output
W		 TORQUE
Kg.cm		 CURRENT
A
DC1824-27GB 6 6000 0.033 4800 0.01 0.16 0.5 0.045 0.55
DC1824-27GB 12 9200 0.033 8400 0.005 0.1 0.44 0.051 0.51
DC1824-27GB 24 8000 0.02 6400 0.01 0.07 0.67 0.045 0.19

Reduction stage 4 5 6 7 8
Reduction ratio 19K, 27K 36K, 52K, 76K, 94K 100K, 145K, 210K 278K, 402K, 583K 771K, 1119K, 1621K
gearbox length L 18 20 22 24 26
Gearbox efficiency 65% 59% 53% 48% 43%

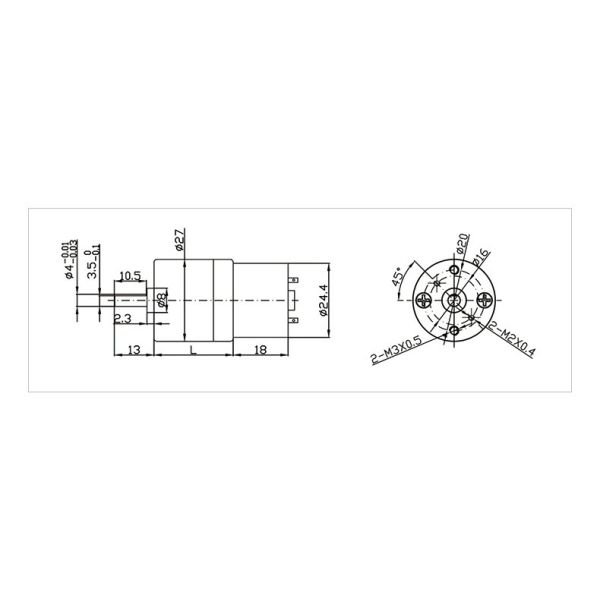

Dimension of the brushless motor:

27mm Micro DC Spur Gear Motor Brush Deceleration Electric Lock Gear Motor


Customized spares parts

1. Voltage, current, speed and torque.
2. Shape of shaft: "D" "Round" "Flat" "Hexagon Axis" "Square axis", shaft dimension
3. Bearing: ball bearing, oil bearing
4. Materials of shell: plastic metal etc
6. Optional equip with reducer, braker, encoder, controller, gearhead, driver etc
