Medical Device Brushless Spur Gear Motor 60rpm Customized 24v Low Noise
Medical Device Brushless Spur Gear Motor 60rpm Customized 24v Low Noise
Medical Device Brushless Spur Gear Motor 60rpm Customized 24v Low Noise
Medical Device Brushless Spur Gear Motor 60rpm Customized 24v Low Noise
Medical Device Brushless Spur Gear Motor 60rpm Customized 24v Low Noise
Medical Device Brushless Spur Gear Motor 60rpm Customized 24v Low Noise
Medical Device Brushless Spur Gear Motor 60rpm Customized 24v Low Noise
Medical Device Brushless Spur Gear Motor 60rpm Customized 24v Low Noise
Specifications
Brand Name :
SECORE
Model Number :
BL3650-37GB
Certification :
RoHS
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
500pcs per carton or as request
Motor size :
OD36*L50（mm）
Speed Rated :
60RPM or customized
Free load speed :
70RPM or customized
Rated Torque :
10kg.cm
Rated current :
1.5A
Motor type :
37mm spur gear motor
Typical application :
medical device, water pump, valve
shaft diameter :
6mm D shaft or customized
Description

Customized 24v Low Noise 10kg Medical Device Brushless Spur Gear Motor 3650 60rpm

Secore bldc gear motor 3650-37GB

MODELVOLTAGENO LOADAT MAXIMUM EFFICIENCYSTALLwith gearbox 1:90
SPEED
RPM		CURRENT
mA		SPEED
RPM		TORQUE
g.cm		CURRENT
mA		Output
W		TORQUE
g.cm		CURRENT
A		Free-load speed
rpm		rated speed
rpm		rated torque
kg.cm
BL3650-37GB126500250530020014001110504706010
BL3650-37GB248700707000201502.51300.7433510

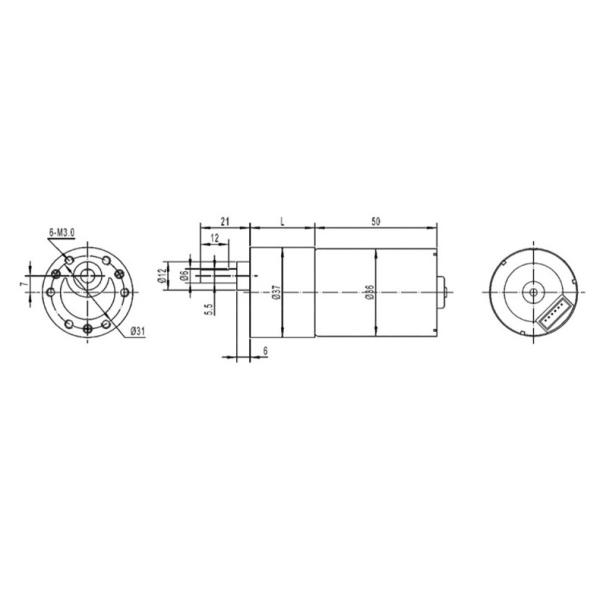

Dimension of the brushless motor:
Medical Device Brushless Spur Gear Motor 60rpm Customized 24v Low Noise
Medical Device Brushless Spur Gear Motor 60rpm Customized 24v Low Noise

Typical application for BLDC gear motor:

Medical and health-care equipment: all kinds of massage health care equipment, medical equipment, etc.
Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc.
Household electrical appliance : lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliance, etc.
The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.
Office automation: automatic doors, elevator doors, roller shutter, curtains, punch machines, financial instruments, etc.
Recreational equipment: swimming pool cleaners, pool cover systems, golf trolley, amusement machines and other places of entertainment, etc.
