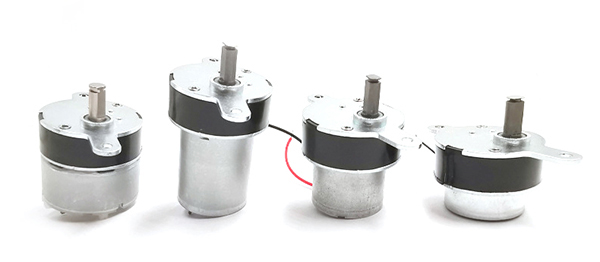

60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven
60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven
60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven
60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven
60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven
60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven
60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven
60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven
60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven
60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven
Specifications
Brand Name :
SECORE
Model Number :
DC2418-32GM
Certification :
CE ROHS
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
7-12 working days
Packaging Details :
500pcs per carton or as request
Model number :
DC2418-32GM
Working voltage :
6V
Gearbox diameter :
32mm
Gear Motor size :
31mm*48mm
Rated load speed :
50-60rpm
Rated torque :
3kgf.cm ( 0.3N.m )
Commutation :
Carbon Brush
Application :
roast oven,household appliance
Description

60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven

Gear motor specification for reference:

1. Voltage: 6V DC

2. Free load speed: 75±12% rpm

3. Free load current: 150mA max

4. Rated speed: 60±12% rpm
5. Rated current: 700mA
6. Rated torque: 3kg.cm min
7. Stall current: 1.8A max
8. Stall torque: 7kg.cm min
9. Noise: 60dB max ( 30cm from motor )
10. Gear reducer length: 13mm
11. Application: roast oven, house applicances etc.
12. Can equip brush, or brushless motor, parameters and shaft are customizable.
MODEL# Voltage
VDC		 NO LOAD AT LOAD STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT POWER
±10% r/min mA ±10% r/min mA Kg.cm Kg.cm A W
DC2418-32GM 6 75 150 52 700 3 7 1.8 1.5

Mounting dimensions:

60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven

60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven
