Micro 520 Gear Motor For Cat Litter Box, 12v 28rpm Flat Gear Motor
Micro 520 Gear Motor For Cat Litter Box, 12v 28rpm Flat Gear Motor
Micro 520 Gear Motor For Cat Litter Box, 12v 28rpm Flat Gear Motor
Micro 520 Gear Motor For Cat Litter Box, 12v 28rpm Flat Gear Motor
Micro 520 Gear Motor For Cat Litter Box, 12v 28rpm Flat Gear Motor
Micro 520 Gear Motor For Cat Litter Box, 12v 28rpm Flat Gear Motor
Specifications
Brand Name :
SECORE
Model Number :
DC-6435GM
Certification :
CE ROHS
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
7-12 working days
Packaging Details :
100pcs per carton or as request
Model number :
DC-6435GM
Operating voltage :
12V
Gearbox size :
64.5*38*12mm
Gear Motor size :
64.5*38*34.5mm
Rated load speed :
28rpm
Rated torque :
500gf.cm
motor type :
brush, or brushless motor
Application :
cat litter box, safes, coffee machines etc
Description

Micro 520 Gear Motor For Cat Litter Box, 12v 28rpm Flat Gear Motor

Gearbox specification:

Gear ratio 32, 40.5, 54, 68 111, 135, 185, 225 256, 312, 370, 450
Gearbox length ( mm ) 12 12 12
Rated torque ( N.m ) 2 6 8
Instantaneous torque ( N.m ) 6 18 24
Efficiency 73% 65% 59%
Motor parameters:
Voltage
VDC		 NO LOAD AT LOAD STALL
SPEED CURRENT SPEED CURRENT TORQUE POWER TORQUE CURRENT
±10% r/min mA ±10% r/min mA g.cm W g.cm A
6 3000 35 2600 130 15 0.78 100 0.5
12 6000 60 5500 150 15 1.8 135 1
24 5500 30 4900 110 20 2.65 150 0.56
24 7500 50 6700 120 15 2.9 230 0.9

1. The above motor parameters are for reference only, please base on actual sample data,

2. Motor parameters and output shaft size can be custom made according to application requests.

3. Output torque = motor torque * reduction ratio * gear efficiency. Output speed = motor speed / reduction ratio.

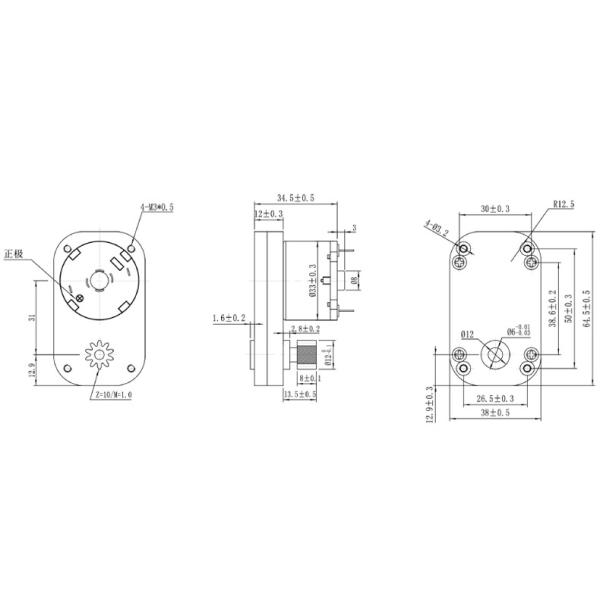

Mounting dimensions:

Micro 520 Gear Motor For Cat Litter Box, 12v 28rpm Flat Gear Motor

Micro 520 Gear Motor For Cat Litter Box, 12v 28rpm Flat Gear Motor
