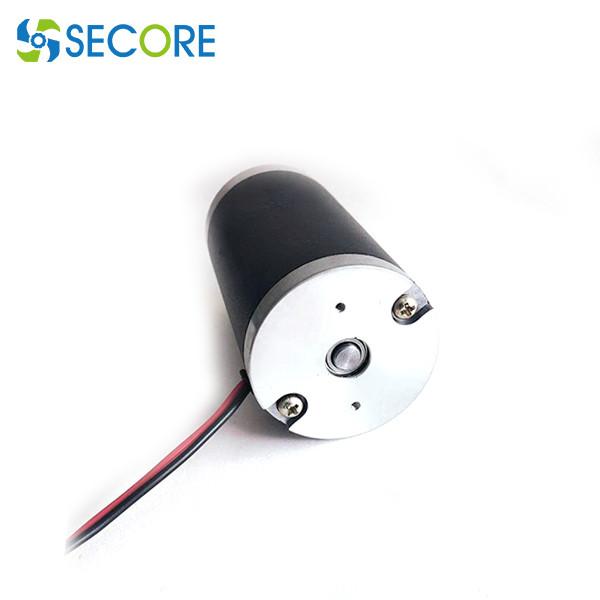

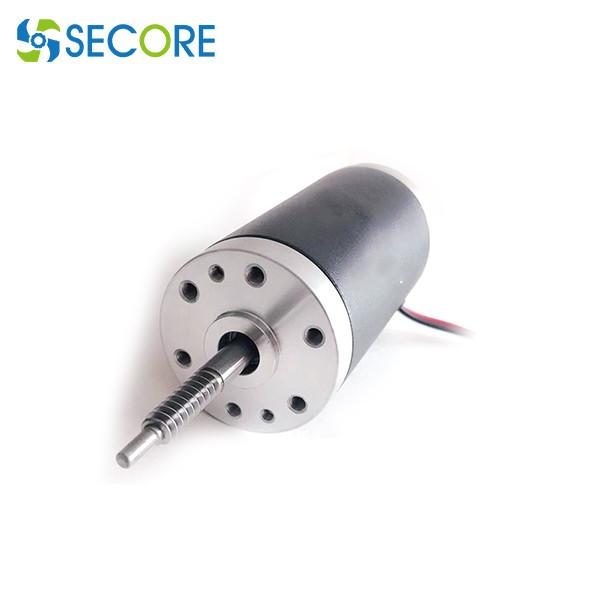

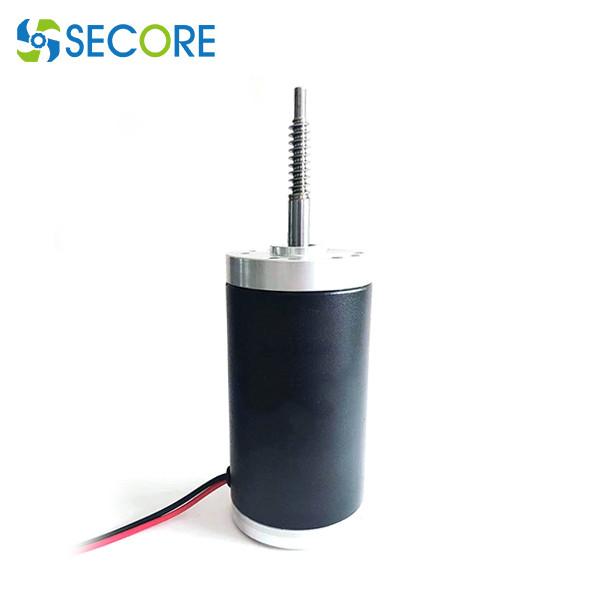

5000RPM Machinery Brush DC Motor 24V Automatic Door Motor 54mm
5000RPM Machinery Brush DC Motor 24V Automatic Door Motor 54mm
5000RPM Machinery Brush DC Motor 24V Automatic Door Motor 54mm
5000RPM Machinery Brush DC Motor 24V Automatic Door Motor 54mm
5000RPM Machinery Brush DC Motor 24V Automatic Door Motor 54mm
5000RPM Machinery Brush DC Motor 24V Automatic Door Motor 54mm
5000RPM Machinery Brush DC Motor 24V Automatic Door Motor 54mm
5000RPM Machinery Brush DC Motor 24V Automatic Door Motor 54mm
Specifications
Brand Name :
SECORE
Model Number :
DC5486
Certification :
RoHS
Place of Origin :
Shenzhen
MOQ :
50
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
10000pcs per month
Delivery Time :
9-12 working days
Packaging Details :
500pcs per carton or as request
Product name :
machinery brush motor
Nominal voltage :
24V or custom
No load speed :
5000rpm ±10%
Rated speed :
4000rpm ±10%
Rated torque :
1.15kg.cm ( 112.8mN.m, 1lb.in )
Stall torque :
5.75kg.cm ( 564mN.m, 5lb.in )
Motor size :
OD54mm * L86mm
Application :
Aquaculture, robotics
Description

5000RPM Machinery Brush DC Motor 24V Automatic Door Motor 54mm

Main specification cases:

Model Number: DC-5486 diameter 54mm, length 86mm, 105mm optional
Voltage range: DC 12V, 24V, customized 220V, 230V
High Speed: 4000rpm , or tailor-made
Features: High speed, high torque, steady running, low noise, waterproofing can be customized
Model number VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY Lifetime
Nominal constant SPEED CURRENT SPEED CURRENT TORQUE
Volts ±10% r/min mA ±10% r/min mA N.m kg.cm H
SC-63120 24V 4000 650 3200 2800 0.2 2.04 2000


Motor dimensions

5000RPM Machinery Brush DC Motor 24V Automatic Door Motor 54mm

5000RPM Machinery Brush DC Motor 24V Automatic Door Motor 54mm

What specifications are needed for the motor?

  • you must compute the expected size of the motor;
  • the voltage, power, start & rated torque and speed of the motor are required;
  • the industrial environment that the motor operates in must also be considered: different environment (explosion, humidity, corrosion, high and low temperatures, etc.) may have different design.

For harsh environments, like a waterproof, dustproof and shockproof enclosure needs to be reviewed, please contact us for further details.
