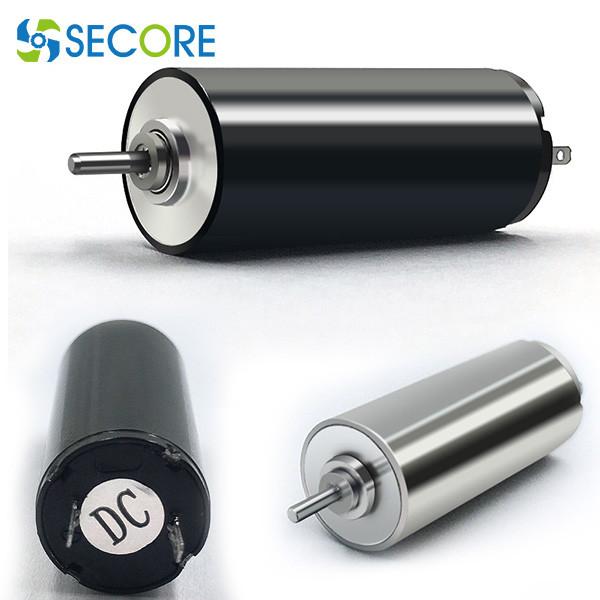

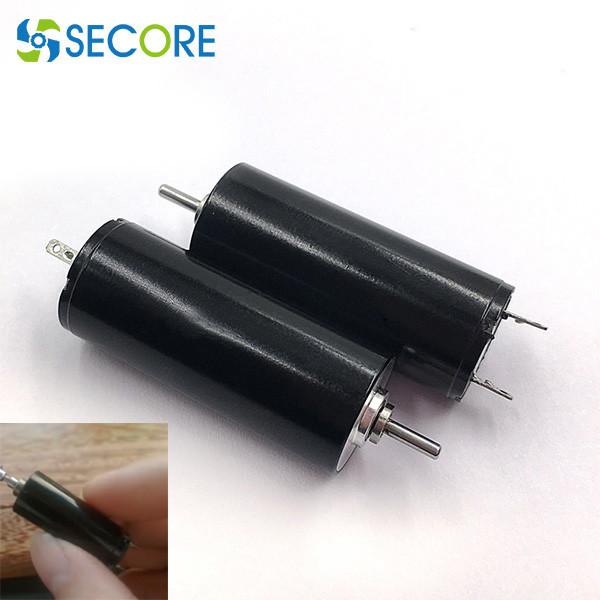

8800rpm 3.75W Coreless DC Motor Light Weight 6V 12V For Tattoo Pen
8800rpm 3.75W Coreless DC Motor Light Weight 6V 12V For Tattoo Pen
8800rpm 3.75W Coreless DC Motor Light Weight 6V 12V For Tattoo Pen
8800rpm 3.75W Coreless DC Motor Light Weight 6V 12V For Tattoo Pen
Specifications
Brand Name :
SECORE
Model Number :
SC-CL1331
Certification :
CE ISO9001 CCC VDE
Place of Origin :
Shenzhen
MOQ :
200
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
50000pcs per month
Delivery Time :
5-10 working days
Packaging Details :
50pcs per carton or as request
Rated Voltage :
6V
Rated Power :
3.75W
Rated torque :
2.4mN.m or as request
Rated Speed :
8800rpm
Rated current :
0.5A or as request
Mounting sizes :
13*31mm ( Diameter * length )
Item name :
20g high quality motor, 13mm motor for top brand tool
application :
dental tool, tattoo pen, electric tool, kids toy
Description

Small Size 13mm High-End Device Dc Motor, Light Weight 20g 6V 12V Coreless Motor

Product type:Brush dc coreless motor, Brushless dc coreless motor
Diameter range: 10mm to 60mm
Working voltage range: 3V to 48V
Speed no-load: 2000 to100000R/M
Power: 2W to 800W
Production mode: This is a customized product, which is tailored to the needs of customers
Motor Selection: Provide original version or customized drawings. Welcome to contact sales staff to understand basic performance parameters and determine the specifications and models suitable for customers;
Product color: the regular color is black or silver, other color is customizable.

Technical parameter:

Motor data Motor model no.
Values at rated voltage CL1331 CL1331 CL1331 CL1331
At Nomimal Nominal voltage V/DC 3 6 12 24
Nominal speed RPM 9600 8800 9280 12960
Nominal current A 0.9 0.5 0.2 0.4
Nominal Torque mNm 2.1 2.4 2 5.2
Free load No load speed RPM 12000 11000 11600 16200
No load current mA 45 30 18 12
At Max Efficiency Max efficiency % 80.8 75.8 69.4 70.5
Speed RPM 10920 9735 9918 13932
Current A 0.4 0.3 0.2 0.3
Torque mNm 0.9 1.4 1.5 3.7
At Max output power Max output power W 3.2 3.5 3.1 11.1
Speed RPM 6000 5500 5800 8100
Current A 2.2 1.2 0.6 1
Torque mNm 5.1 6 5 13.1
At Stall current A 4.4 2.4 1.1 2
torque mNm 10.3 12.1 10.1 26.2
Motor constants Motor Constants Ω 0.68 2.5 11.11 12.31
Terminal resistance mH 0.48 0.122 0.265 0.75
Torque constant mNm/A 2.36 5.12 9.6 13.78
Speed constant rpm/V 4000 1833 966 675
Speed/torque constant rpm/mNm 1166 910 1150 618
Mechanical time constant ms 8.1 6.3 7.9 4.3
Rotor inertia g.cm² 0.65 0.65 0.65 0.65
Number of pole pairs 1
Number of phases 5
weight of motor g 20
Typical noise level dB ≤45
Mounting structure:
8800rpm 3.75W Coreless DC Motor Light Weight 6V 12V For Tattoo Pen
Data performances:
8800rpm 3.75W Coreless DC Motor Light Weight 6V 12V For Tattoo Pen
Coreless DC motors Advantages:

There are numerous applications in particularly demanding sectors such as aerospace, defence and surveillance. It enjoys below advantages.

1. The design eliminating the cogging effect

2. Low level of EMI ( electromagnetic interference ), This is particularly beneficially when there are EM signals within the application, such as smartphones or medical devices.

3. Little current consumption. Coreless motors can also be used in battery-powered devices, as they absorb little current thanks to their features.

4. high efficiency upto 90%, long motor life. It has no iron core, no iron losses.
