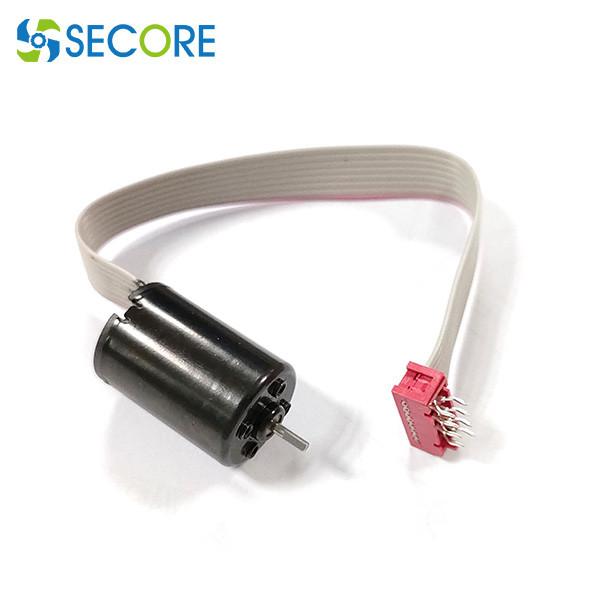

12V 5G Antenna 12275RPM Micro BLDC Motor 16mm 0.547A Mini Brushless Motor
12V 5G Antenna 12275RPM Micro BLDC Motor 16mm 0.547A Mini Brushless Motor
Specifications
Brand Name :
SECORE
Model Number :
BL-1625I
Certification :
CE ROHS
Place of Origin :
China
MOQ :
500
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
12-15 working days
Packaging Details :
400pcs per carton or as request
Speed RPM :
12275RPM or customized
Rated voltage :
6v, 12v
Continuous current :
0.547A
Construction :
pernanent magnet
Efficiency :
70~85%
Rated Torque :
2.536m.Nm or as request
Type :
9V brushless motor, antenna bldc gear motor
Typical application :
base station antenna, Medical Stirrer, Medical Pump, water pump
Description

Micro 16mm Brushless Motor , 3.7V 6V bldc motor gear motor 1625 for 5G base station Antenna

Main Characters:

ITEM Specification Remark
Standard voltage DC 8.5V Voltage range 5-15v dc
motor type 3 phases 8 poles with 3 hall sensors
number of stator slot 6 slots
stator winding Y connection
coil resistance 2.7Ω±15%
direction of rotation cw/ccw see from output shaft side
operating temperature －40℃ to ＋85℃
reservation temperature －30℃ to ＋60℃
Ambient humidity RH 90% max no water exists during storage
motor installation Motor shaft vertical or horizontal

Motor performance curve:

12V 5G Antenna 12275RPM Micro BLDC Motor 16mm 0.547A Mini Brushless Motor

Motor dimension:

12V 5G Antenna 12275RPM Micro BLDC Motor 16mm 0.547A Mini Brushless Motor
