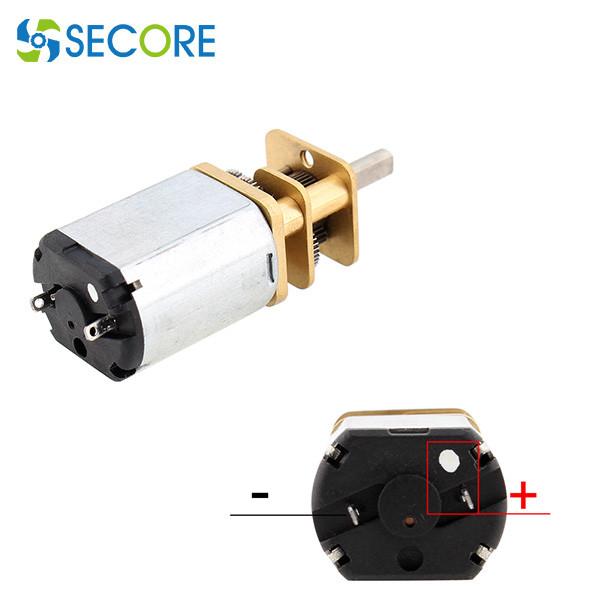

Lottery Machine Dc Brushed Motor 115rpm 3V 6V 9V 12V Mini Reduction 1800RPM
Lottery Machine Dc Brushed Motor 115rpm 3V 6V 9V 12V Mini Reduction 1800RPM
Lottery Machine Dc Brushed Motor 115rpm 3V 6V 9V 12V Mini Reduction 1800RPM
Lottery Machine Dc Brushed Motor 115rpm 3V 6V 9V 12V Mini Reduction 1800RPM
Specifications
Brand Name :
SECORE
Model Number :
SC13-030GM
Certification :
CE ROHS
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
100pcs per carton or as request
Rated Speed :
100rpm or as customized
continuous current :
0.16A
commutation :
brush
voltage :
12V
Rated torque :
750g.cm
Type :
Gear motor, dc reducer motor
sizes :
29.6*12*13mm
Typical application :
electric lock, electric curtain, Lottery machine
Description

DC3V 6V 9V 12V Low Power Door Lock Motor Mini Reduction 13mm 100rpm Geared Motor

Main features:

Motor type: Brush commutated DC gear motor
Diameter: Gearbox: 12mm*13mm *29.6mm

Volt
12V
No-Load Speed
115rpm
Rated Speed
100rpm
Rated Torque
750g.cm
Application
lottery machine, door lock, electric locking


Gear motor dimensions:

Lottery Machine Dc Brushed Motor 115rpm 3V 6V 9V 12V Mini Reduction 1800RPM

Motor Technical parameters:

1. Rated Voltage: DC3V to12V
2. Speed No load: 50 to 1800RPM to be customized
3. Reduction Ratio:1/10~360

5. Application: Door lock, robot,lock,Auto shutter,USB fan,Slot machine,Money detector, Coin refund devices,Currency count machine, Towel dispensers,Automatic TV rack etc.

DC12V, max 1.5W input power 18000rpm SC13-030GM
Reduciton ration 1:10 1:20 1:35 1:63 1:86 1:115 1:150 1:250 1:360
No-load current mA 65 65 65 65 65 65 65 65 65
No-load speed r/min 1750 880 500 280 205 155 115 70 50
Rated torque g.cm 50 100 170 300 400 550 750 1250 1800
Rated speed r/min 1450 730 420 230 170 125 100 58 40
Rated current A 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16
Stall torque kg.cm 0.3 0.6 1 2 2.5 max torque 3.0kg.cm ( 0.3N.m )
Stall current A 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75


Provide motor size, lead requirement, working voltage, no-load conversion, no-load current, load, stall current, etc, TO TAILOR YOUR MOTOR.

Motor solution in Areas of expertise:

Windows or doors electric locks, micro hoist, Garbage disposal, water IC CARDS, toys and gifts, figer - electronic locks, optical devices, Card machine, robot, towel machine, office equipment, household appliances, automatic actuator,etc.

Lottery Machine Dc Brushed Motor 115rpm 3V 6V 9V 12V Mini Reduction 1800RPM

Motor Use Needs to know>>
1. When you use the motor, there should be no binding objects. For example, the adhesive should not flow into the bearing through the rotating shaft, which will hinder the operation of the motor.
2. The rotation of the shaft may have the opposite effect on the life of the motor. In order to extend the life, please check whether your load conforms to the regulations.
It should not be overloaded, or there are items that hinder rotation at the end of the shaft.
3. Do not store in surrounding high temperature or extreme humidity, and do not place in corrosive gas, which will reduce the effect of the motor.
4. Do not run the motor in the surrounding high temperature and humidity
5. When soldering is required on the positive and negative motor terminals of the power supply, the temperature of the soldering iron should be 340℃±40℃, and the heating time should be within 3 seconds.
6. Don't let the motor shaft get stuck. When power is supplied, the motor will overheat in a short time and its accessories might be burned.
7. Due to the lack skills of the staff, the quality of the motor cannot be guaranteed when the motor encounters the things mentioned in the manual, or the superficial judgment is obviously fault.
8. Supply the specified power and be sure that it is within the range of measurable requirements.
9. The installation of pulleys or gears should not be abnormally aggravated when pressed in
10. When installing the motor, if the screw is too long, it will cause contact between the motor itself and the rotor, which will affect the characteristics.
