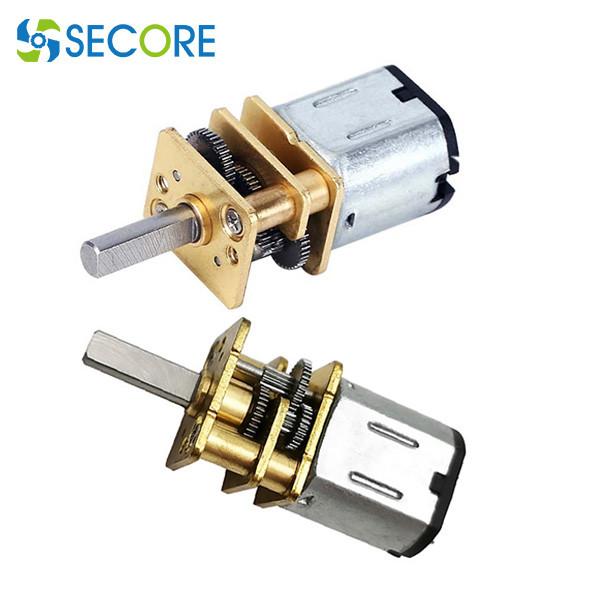

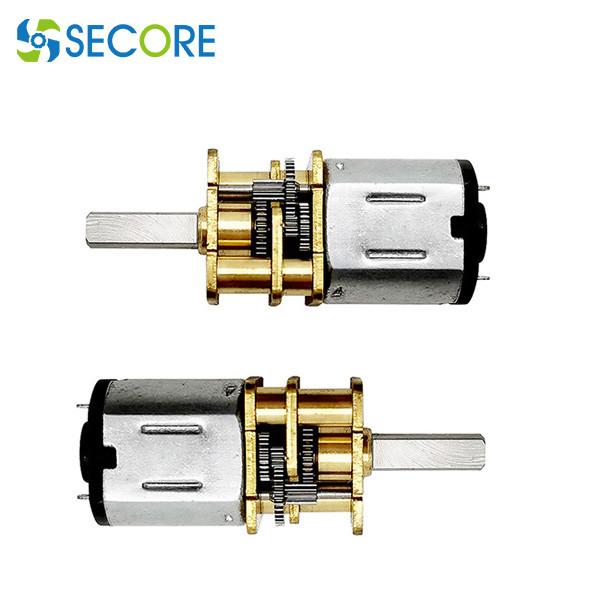

0.4A ROHS Micro Metal Gear Motor 61rpm Metal Gear Box Motor
0.4A ROHS Micro Metal Gear Motor 61rpm Metal Gear Box Motor
0.4A ROHS Micro Metal Gear Motor 61rpm Metal Gear Box Motor
0.4A ROHS Micro Metal Gear Motor 61rpm Metal Gear Box Motor
Specifications
Brand Name :
SECORE
Model Number :
SC13-050GM
Certification :
CE ROHS
Place of Origin :
Guangdong
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days

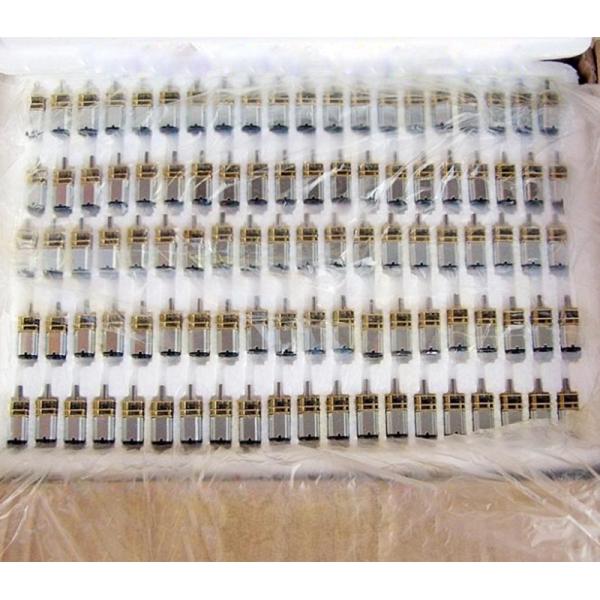

Packaging Details :
100pcs per carton or as request
No-load speed :
61rpm
Loaded Speed :
47rpm
Rated voltage :
6V
No-load current :
0.034A
Rated torque :
46.8mN.m
loaded current :
0.118A
Stall torque :
203mN.m
Stall current :
0.4A
Type :
Gear motor, dc reducer motor
Typical application :
Smart car electronic lock, bicycle motor
Description

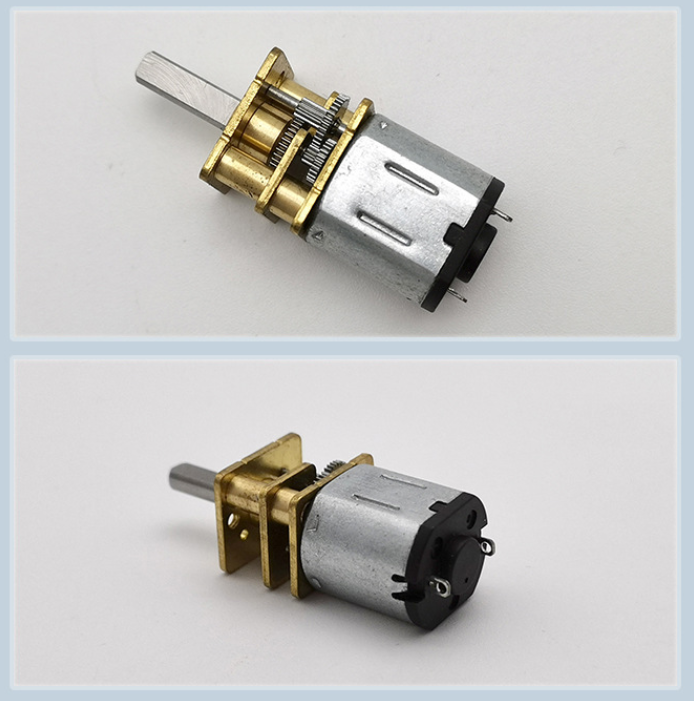

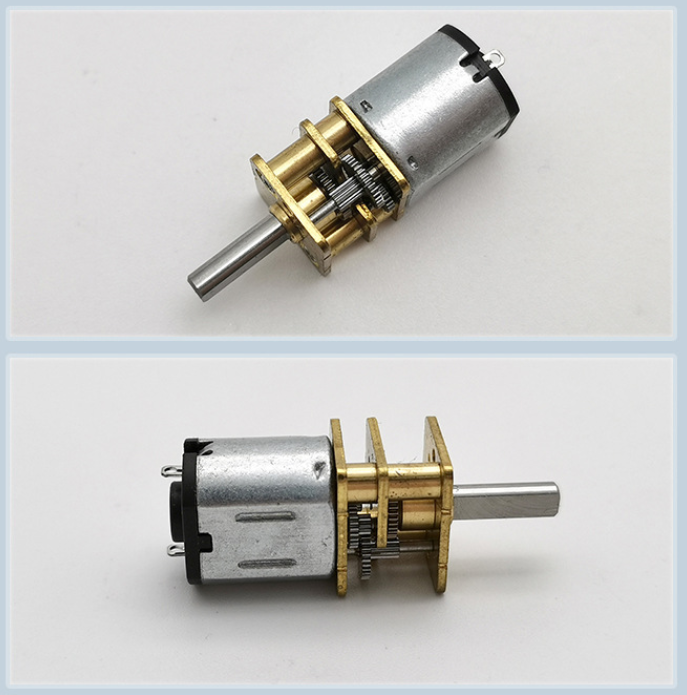

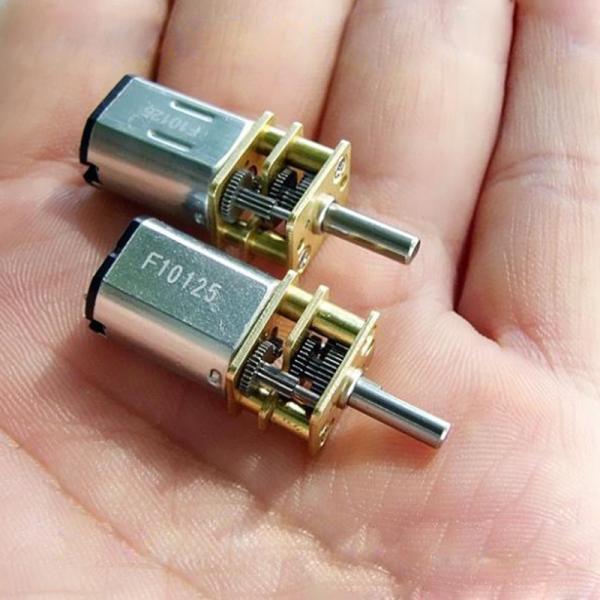

Micro 10*12mm Metal Gear Motor, Bicycle Motor Metal Gear Box Motor

Main features:

Motor type: mini DC gear motor
Diameter: 10*10*12.5MM

VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE		 RATED SPEED CURRENT SPEED CURRENT TORQUE Output TORQUE CURRENT
r/min A r/min A mN.m g.cm W mN.m g.cm A
4.0-7.0 6.0 61 0.034 48 0.117 46.9 477.1 0.231 203.4 2075 0.41
3.0-6.0 4.5 59 0.041 47 0.146 41.5 424.3 0.203 198.1 2021 0.55

Explanation of motor related parameters:
1. No-load speed: the speed at which the motor is normally energized and without load. (Unit: rpm or revolution/minute or r/min)
2. No-load current: the current when the motor is normally energized without load. (Unit: mA mA)
3. Load Torque: the rated torque during the motor load test, which is only used for test reference; (unit: g-cm grams per centimeter or kg-cm kg per centimeter)
4. Load speed: the speed of the motor under load torque. (Unit: rpm or revolution/minute or r/min)
5. Load current: the current of the motor under load torque. (Unit: mA milliampere or A amp)
6. Locked-rotor torque: also called starting torque, which is the maximum torque standard that the motor can withstand. If the torque is exceeded, the motor will stop or lock
(Unit: g-cm grams per centimeter or kg-cm kilograms per centimeter)
7. Locked-rotor current: also called starting current, which is the maximum current when the motor is blocked and stopped; (unit: mA or A)

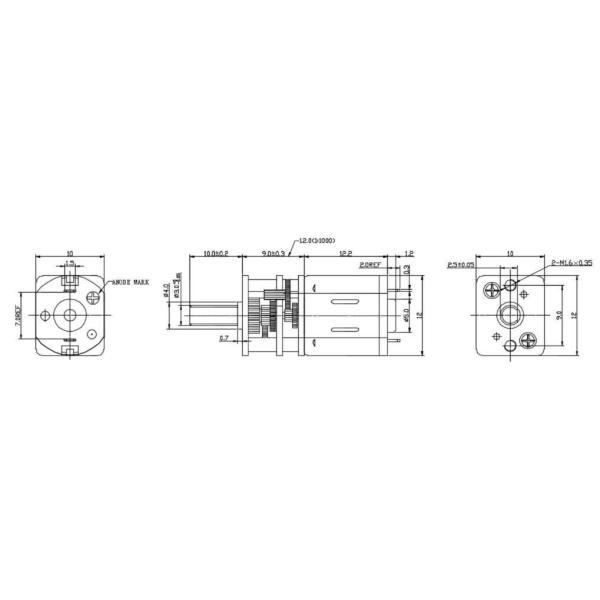

Gear motor dimensions:


0.4A ROHS Micro Metal Gear Motor 61rpm Metal Gear Box Motor

0.4A ROHS Micro Metal Gear Motor 61rpm Metal Gear Box Motor

0.4A ROHS Micro Metal Gear Motor 61rpm Metal Gear Box Motor

0.4A ROHS Micro Metal Gear Motor 61rpm Metal Gear Box Motor

0.4A ROHS Micro Metal Gear Motor 61rpm Metal Gear Box Motor
