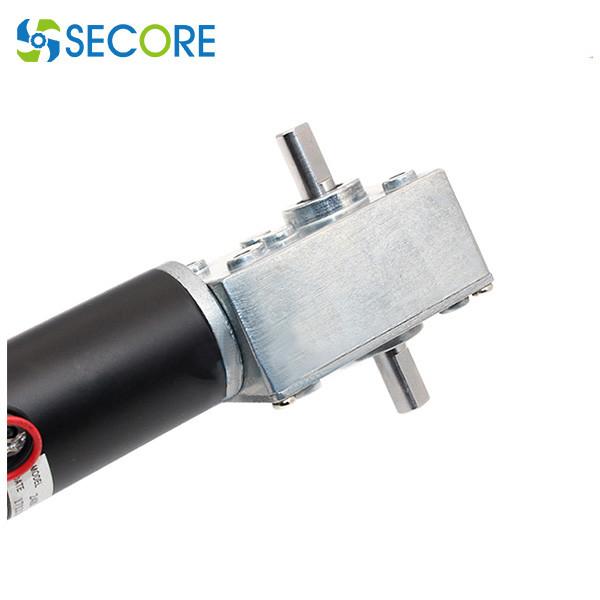

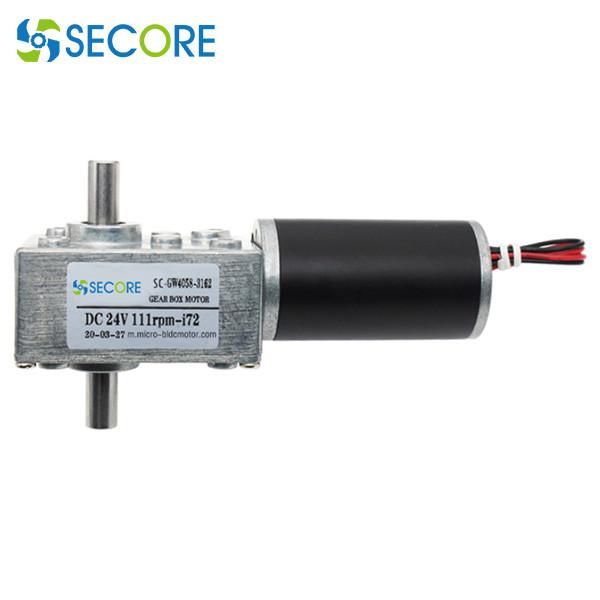

4.4A 260rpm Dual Shaft Gear Motor High Torque For PTZ Camera
4.4A 260rpm Dual Shaft Gear Motor High Torque For PTZ Camera
4.4A 260rpm Dual Shaft Gear Motor High Torque For PTZ Camera
4.4A 260rpm Dual Shaft Gear Motor High Torque For PTZ Camera
Specifications
Brand Name :
SECORE
Model Number :
SC3157-5840WG
Certification :
ISO9001
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
100pcs per carton or as request
No-load speed :
260rpm
Loaded Speed :
200rpm
Rated voltage :
24V
continuous current :
1.6A
No-load current :
0.2A
commutation :
brush
Rated torque :
6.2kg.cm
loaded current :
1.6A
Stall torque :
18kg.cm
Stall current :
4.4A
Product Type :
Worm Gear motor, dc brush reducer motor
Typical application :
motorized curtain, Electric curtain
Description

Dual Shaft Self-Lock Gear Reduce Motor 5840, High Torque Gear Motor For PTZ Camera

Main features:

Motor type: 24V dc turbo worm gear motor
Diameter of Gearbox: 58mm*40mm *27mm

DC 24.0V 8000rpm Worm gear motor, max 35W
Reducer Ratio 1:i 1:17 1:36 1:54 1:72 1:108 1:212 1:280 1:590
Size L mm L58*W40*H27
No Load Speed rpm 470 222 148 111 74 38 28 15
Current A ≤0.25 ≤0.25 ≤0.25 ≤0.25 ≤0.25 ≤0.25 ≤0.25 ≤0.25
Rated load Speed rpm 370 174 116 87 58 29 22 12
Torque Kgf.cm 4 8 12 16 25 50 50 70
Current A ≤1.2 ≤1.2 ≤1.2 ≤1.2 ≤1.2 ≤1.2 ≤1.2 ≤1.2
Stall Torque Kgf.cm 18 38 no more than 40kg.cm
Current A 4.4 4.4 4.4 4.4 4.4 4.4 4.4 4.4


Gear motor dimensions:


4.4A 260rpm Dual Shaft Gear Motor High Torque For PTZ Camera

Explanation of motor related parameters:
1. No-load speed: the speed at which the motor is normally energized and without load. (Unit: rpm or revolution/minute or r/min)
2. No-load current: the current when the motor is normally energized without load. (Unit: mA mA)
3. Load Torque: the rated torque during the motor load test, which is only used for test reference; (unit: g-cm grams per centimeter or kg-cm kg per centimeter)
4. Load speed: the speed of the motor under load torque. (Unit: rpm or revolution/minute or r/min)
5. Load current: the current of the motor under load torque. (Unit: mA milliampere or A amp)
6. Locked-rotor torque: also called starting torque, which is the maximum torque standard that the motor can withstand. If the torque is exceeded, the motor will stop or lock
(Unit: g-cm grams per centimeter or kg-cm kilograms per centimeter)
7. Locked-rotor current: also called starting current, which is the maximum current when the motor is blocked and stopped; (unit: mA or A)
