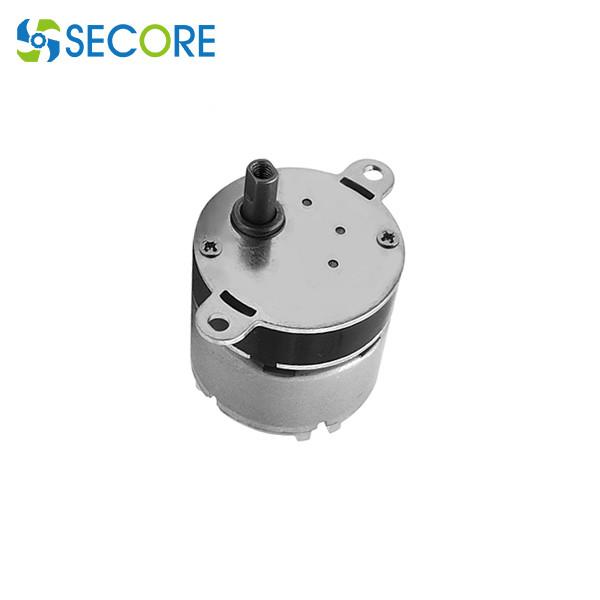

Permanent Magnet 50RPM 24V Gear Motor 0.12 Watt With Gearbox
Permanent Magnet 50RPM 24V Gear Motor 0.12 Watt With Gearbox
Permanent Magnet 50RPM 24V Gear Motor 0.12 Watt With Gearbox
Permanent Magnet 50RPM 24V Gear Motor 0.12 Watt With Gearbox
Permanent Magnet 50RPM 24V Gear Motor 0.12 Watt With Gearbox
Permanent Magnet 50RPM 24V Gear Motor 0.12 Watt With Gearbox
Specifications
Brand Name :
SECORE
Model Number :
SC500C
Certification :
CE ROHS
Place of Origin :
Guangdong
MOQ :
10
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
7-10 working days
Packaging Details :
50pcs per carton or as request
Speed :
50RPM
Rated Voltage :
3-24V
Rated Power :
0.01 ~0.12 watt
Rated Torque :
0.39-1.57mN.m
Commutation :
Brush
Construction :
pernanent magnet
Product Type :
lamp gear motor
Typical application :
stage lighting, stage lamp, revolving light
Description

Mini 24V Gear Motor, Slow Speed Revolving Lamp Reduction Motor With Gearbox

Specifications :

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
Rated voltage SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm W N.m kg.cm A
SC-500C 3.0V 50 0.11 40 0.31 0.098 1.1 0.42 0.393 3.93 1.6
6.0V 60 0.118 50 0.25 0.098 1.1 0.62 0.491 4.91 2.1
12.0V 50 0.11 44 0.21 0.197 2.1 1.21 1.276 12.76 3.1
24.0V 60 0.051 54 0.11 0.197 2.1 1.21 1.568 15.68 3.1

Dimensions:

Permanent Magnet 50RPM 24V Gear Motor 0.12 Watt With Gearbox

TO BE TAILORED

* Expected voltage types

* Configurable shaft length and second shaft end

* Extended temperature range

* Modified shaft dimensions and pinion configurations such as flats, gears, pulleys and eccenter

* Customization for speed and or oad applications

* Customization for motors with increased electrical or mechanical tolerance requirement

If there is no suitable specifications, it can be customized according to actual needs.

Motor solution in fields expertise

Permanent Magnet 50RPM 24V Gear Motor 0.12 Watt With Gearbox
